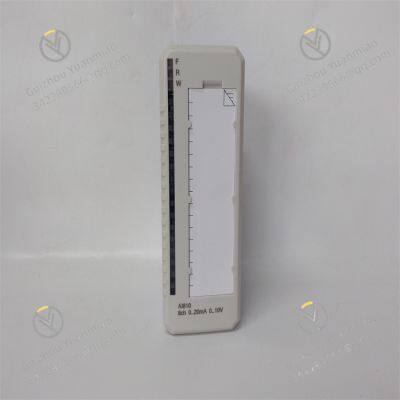

ABB AI810 3BSE008516R1 analog input module

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Operating temperature	-40℃~+85℃
Humidity	5%~95% (non-condensing)

Product Description

Many products are not on the shelves yet, please contact us for more models.

AI810 3BSE008516R1 is an analog input module in ABB's AC 800M series, designed to convert analog signals (such as voltage, current, or temperature) from field sensors and transmit them to the controller for real-time process monitoring and control. The following is a detailed overview based on public information:

Product Overview

The AI810 (model 3BSE008516R1) serves as a critical interface between analog field devices (e.g., pressure transmitters, temperature sensors, flow meters) and the AC 800M programmable logic controller (PLC). It accurately acquires and processes continuous analog signals, enabling precise control in industrial automation systems. It is widely used in process control, manufacturing, and energy sectors where real-time monitoring of physical parameters is essential.

Technical Parameters

Parameter	Details
Number of Input Channels	8 independent analog input channels.
Supported Signal Types	- Current: 4~20mA, 0~20mA (two-wire or four-wire transmitters). - Voltage: 0~10V, ±10V, 0~5V. - Thermocouple: Type J, K, T, E, R, S, B (with cold junction compensation). - RTD: Pt100, Pt1000 (3-wire or 4-wire, for temperature measurement).
Resolution	16-bit (ensures high-precision signal conversion).
Accuracy	±0.1% of full scale (at 25°C); ±0.2% over the operating temperature range.
Isolation	Channel-to-channel and channel-to-backplane isolation (2.5kV rms for 1 minute).
Sampling Rate	Up to 10 samples per second per channel (configurable via software).
Power Supply	24V DC (from AC 800M backplane, typical current consumption: 100mA).
Operating Temperature	0°C to +55°C (operation); -40°C to +70°C (storage).
Protection Rating	IP20 (suitable for cabinet mounting).
Dimensions (W×H×D)	100mm × 160mm × 80mm (compatible with AC 800M DIN rail mounting).
Weight	Approximately 0.3kg.
Certifications	CE, UL, CSA, ATEX (for hazardous area compliance when specified).

Functional Features

High-Precision Signal Acquisition

Equipped with high-performance analog-to-digital converters (ADCs) and low-noise circuitry, ensuring minimal signal distortion even in electrically noisy environments.
Supports cold junction compensation for thermocouples and lead resistance compensation for RTDs, eliminating measurement errors caused by wiring and ambient temperature.

Flexible Configuration

Each channel can be independently configured for signal type, range, and filtering via ABB Control Builder M software, adapting to diverse sensor requirements.
Configurable input filters (e.g., time constants) to suppress high-frequency noise from industrial equipment.

Advanced Diagnostics

Real-time monitoring of channel status, including open-circuit detection (for RTD/thermocouple), short-circuit protection, and over-range alerts.
Fault information (e.g., sensor disconnection, signal saturation) is transmitted to the AC 800M controller via the backplane bus, enabling rapid troubleshooting through the system HMI.

Robust Industrial Design

Channel-to-channel isolation prevents cross-interference between signals, critical for multi-sensor systems.
Industrial-grade components resist vibration, electromagnetic interference (EMI), and voltage fluctuations, ensuring reliable operation in harsh conditions.
