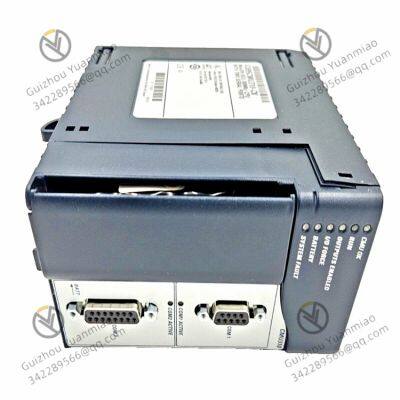

GE IC695CMU310 high-performance communication module

High-performance Processor: Equipped with a high-performance processor, it has strong data processing and control capabilities, enabling rapid handling of various communication tasks and control logic to ensure stable system operation.

Rich Communication Interfaces: Provides 2 embedded serial communication ports, namely RS-232 and RS-485, to meet communication connection requirements of different devices. Meanwhile, it supports data communication via a dedicated Ethernet local area network.

Multiple Communication Protocols Support: Supports various communication protocols such as Modbus RTU Slave, SNP, and Serial I/O, facilitating communication and data exchange with other devices and systems, and featuring good compatibility.

Redundancy Design: As a hot-standby redundant CPU, when one CPU fails, the other can immediately take over control tasks, ensuring continuous system operation and improving system reliability and stability.

Reliable Program Storage: Has up to 10MB of battery-powered RAM for program storage. Even when the device is powered off, the battery pack maintains the stored contents to ensure no loss of programs and data.

Fast Execution Speed: The typical Boolean execution speed is 0.195 milliseconds per 100 Boolean contacts or coils, enabling quick response and efficient control to meet the real-time requirements of industrial sites.

Operating Voltage: 24V DC.

Data Transmission Rate: The Ethernet interface supports up to 10/100Mbps, and the maximum serial port data transmission rate is 115.2kbps.

Operating Temperature Range: -40°C to +85°C.

Storage Temperature Range: -55°C to +105°C.

Protection Level: IP30 protection, effectively preventing dust and water droplets from invasion.

Certification Standards: Complies with CE, RoHS and other certification standards.

Manufacturing Industry: In automated production lines of the manufacturing industry, the module can connect various production equipment such as CNC machine tools, robots, and conveyor systems. Through supporting multiple industrial standard protocols (e.g., PROFINET, EtherNet/IP, Modbus TCP), it realizes high-speed data transmission and collaborative work among devices, enabling precise control and monitoring of the production process to improve production efficiency and product quality. For example, in automobile manufacturing lines, it can be used to transmit production data of each workstation in real time to ensure smooth operation of the entire production process.

Energy Industry: It has important applications in energy fields such as power, petroleum, and natural gas. In power systems, it connects various intelligent devices in substations to realize power data collection, transmission, and monitoring, helping staff master the operating status of the power system in real time and ensuring stable power supply. In the mining and transportation of petroleum and natural gas, the module connects on-site sensors and control devices with the control system to achieve remote monitoring and automated control of the production process, improving production safety and efficiency.

Transportation Field: Applicable to scenarios such as rail transit signal control systems and intelligent transportation monitoring systems. In rail transit, it realizes communication between trains and ground control systems, as well as data interaction among various station devices, ensuring safe operation and efficient scheduling of trains. In intelligent transportation, it connects road sensors, monitoring devices, etc., with the control center to achieve real-time monitoring and intelligent regulation of traffic flow.

Process Control Field: For process control scenarios in industries such as chemical, pharmaceutical, and food & beverage, the IC695CMU310 module can connect equipment like reaction kettles, mixers, and filling machines to realize precise control and real-time monitoring of parameters such as temperature, pressure, and flow in the production process, ensuring production stability and product quality consistency.

Water Treatment Industry: Plays a role in the automation control of infrastructure such as water treatment and sewage treatment. It connects various monitoring instruments in the water treatment process (e.g., water quality detectors, level gauges, flow meters) with the control system to achieve automated control and remote monitoring of the water treatment process, ensuring water quality compliance and stable operation of the water treatment system.
