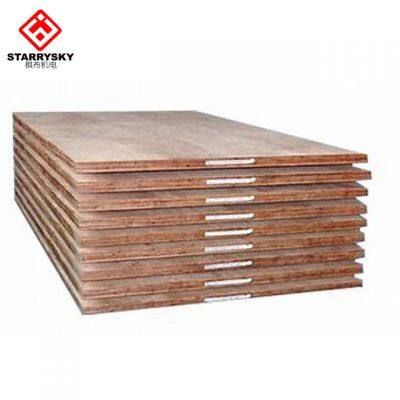

Laminated Wood Plate/Densified Wood Plate for Transformer Insulation
≥10 Pieces
- SHANGHAI
- T/T L/C
- 30 days
You May Like
-
Thermally Upgraded Diamond Dotted Paper TU DDP for Transformer Insulation
-
Oil Duct Stick/Strip/Spacer/Duct Spacing for Transformer Winding Insulation
-
Transformer Pressboard/High Density Pre-Compressed Pressboard for Transformer
-
5micron Thick Power Capacitor Grade Aluminium Foil/Plain Aluminum Foil
-
Laminated Wood Part/Densified Wood Part for Transformer Insulation
-
Off Circuit Tap Changer for ANSI/IEEE Standard Padmount Transformers
Product Details
| Application | Power | Usage | Single-phase Transformer, Power Transformer, Distribution Transformer | |
| Phase | Three | Brand | Other, Firstep | |
| Cooling Method | Oil-immersed Type Transformer | Frequency Characteristics | Power Frequency | |
| Winding Type | Multi-winding Transformer | Shape of Core | Other, Laminated Core | |
| Core | Core-type Transformer | Transport Package | Pallet | |
| Specification | Customized | Trademark | FIRSTEP | |
| Origin | CHINA |
Product Description
Description: Laminated Wood ( Densified Wood) Plate
Application: Transformers
Laminated wood is widely used as insulation and supporting material in transformers and instrument transformers. It has
many features such as moderate specific gravity, high mechanical properties, easy vacuum drying, easy mechanical processing etc.
The dielectric constant of this material is close to transformer oil, so it makes a reasonable insulation match. It can be
used in transformer oil of 105oC for long time.
Laminated wood is usually used to make upper/lower pressure pieces, cable supporting beams, limbs, spacer blocks in oil-immersed transformers, and clamps in instrument transformers. It replaced steel plates, insulating paper sheets, epoxy paper sheets, epoxy woven glass fabric lamination in these fields, and cut down the material expenses and weight of transformers.
The raw materials of laminated wood are high quality birch and willow timbers. After boiling, rotary cutting, drying,
these timbers are made to veneers. At last the veneers will be bonded with special insulating glue and processed under high temperature and pressure.
The max. size we can provide is 4000×3000×120mm.
We can provide the insulation parts made from Laminated wood as well.
