Crepe Paper Tube/Dennison Paper Tube for Transformer/Electrical Insulation
≥10 Piece
- 0 Piece / Pieces per Month
- SHANGHAI
- T/T L/C
- 30 days
You May Like
-
Laminated Wood Plate/Densified Wood Plate for Transformer Insulation
-
Thermally Upgraded Diamond Dotted Paper TU DDP for Transformer Insulation
-
Oil Duct Stick/Strip/Spacer/Duct Spacing for Transformer Winding Insulation
-
Transformer Pressboard/High Density Pre-Compressed Pressboard for Transformer
-
5micron Thick Power Capacitor Grade Aluminium Foil/Plain Aluminum Foil
-
Laminated Wood Part/Densified Wood Part for Transformer Insulation
Product Details
| Application | Power | Usage | Single-phase Transformer, Power Transformer, Distribution Transformer | |
| Phase | Three | Brand | Other, Firstep | |
| Cooling Method | Oil-immersed Type Transformer | Frequency Characteristics | Power Frequency | |
| Winding Type | Multi-winding Transformer | Shape of Core | Other, Laminated Core | |
| Core | Core-type Transformer | Transport Package | Pallet | |
| Specification | Customized | Trademark | FIRSTEP | |
| Origin | CHINA |
Product Description

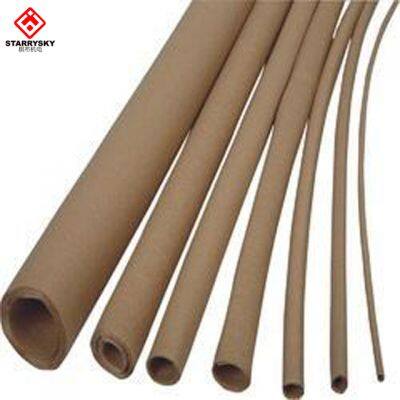

Description: Crepe Paper Tube (CPT)
Application: Oil Immersed Distribution Transformers
We provide Electrical Insulation Crepe Paper Tubes made of high quality crepe paper.Having tolerance of +0.5 mm (I.D.) and +1.0 mm (O.D.), these tubes are extensively used as sleeves for interconnection of terminals. These tubes are also acclaimed for having higher rate of absorption of oil that further ensures higher di-electric strength.
Features:
* Direction of creeping is transverse.
* Only the edge of outer layer is glued.
* These tubes have extremely good compatibility with liquid di-electrics.
* Class "A" insulation (105 °C).
* The Tube retains maximum oil due to use of crepe paper.
* These tubes can bend under extreme conditions without collapsing.
* We can manufacture any ID and OD as per client needs.
* According to IEC-60554.
Crepe Paper Tube is available in flexible tube form of different inner diameters and wall thicknesses.
Standard tube length is 1000, 1800 & 2000mm.
