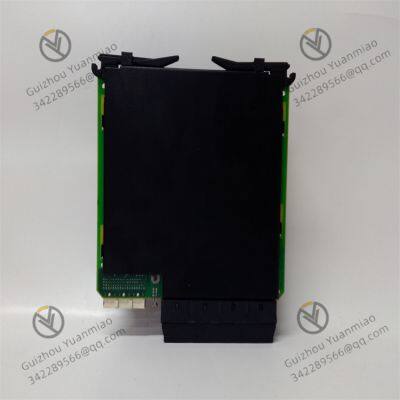

GE UR6PH digital I/O input/output module

GE  UR6PH  digital I/O input/output module

The UR6PH module is a digital I/O input/output module in the UR series universal relays manufactured by GE Multilin. Its performance characteristics are as follows:

Input/Output Configuration

• Equipped with 4 digital input terminals and 6 Form-A outputs.

• The outputs have optional voltage and current metering capabilities, providing universal relay input or output points for controlling substation equipment and other applications.

Signal Processing Functions

• Digital input channels can receive digital signals from external devices such as sensors and switches, which are processed to monitor industrial process parameters and statuses.

• Digital output channels convert digital signals within the system into executable operations for external devices, such as controlling the on/off status of actuators and indicator lights.

Communication Capabilities

• Provides communication interfaces with other devices or systems, supporting protocols like Modbus TCP/IP for easy data transmission and control.

• Can be integrated with various control systems or devices to achieve intelligent control and monitoring.

•


Programming Flexibility

• Users can flexibly configure and adjust the module through programming to implement personalized control logic and functions.

• It allows customization of input/output functions, parameters, etc., according to actual needs, enhancing the module's flexibility and applicability.

Reliability and Stability

• Manufactured with high-quality electronic components and materials, using internal isolation technology to protect input and output signals from external interference.

• Can operate stably in harsh industrial environments, ensuring system reliability and stability.

Scalability

• The module features a flexible design, allowing expansion and customization based on actual needs.

• It can work with other expansion modules to achieve more complex functions.

Other Features

• The module weighs approximately 3 pounds and may support hot-swapping for convenient replacement during system operation.

• It also has functions such as integrated monitoring, integrated metering, and high-performance protection, applicable for digital sequence recording of events and faults.

•


Specific Application ScenariosIndustrial Automation Production Lines

• Receives digital signals from position sensors, photoelectric sensors, etc., to determine the position and status of workpieces.

• Controls the actions of robotic arms, conveyors, and other equipment through digital output channels, ensuring orderly production line operation and improving production efficiency and product quality.

Energy Production and Distribution

• In power plants, monitors status signals such as generator speed and temperature, and controls auxiliary equipment like cooling and lubrication systems.

• In substations, receives circuit breaker opening/closing signals for real-time feedback to the control system, and controls circuit breaker operations as instructed to achieve rapid fault isolation and automatic reclosing.

Manufacturing

• Controls various operations of machinery and equipment in different manufacturing processes. For example, in automobile manufacturing, it controls the start/stop and operating status of stamping machines, welding equipment, etc., to precisely regulate each process according to production flow requirements, enhancing production accuracy and stability.

•


Building Automation

• Controls lighting systems by receiving light sensor signals to automatically turn lights on/off for energy saving.

• Applies to air conditioning systems, controlling AC start/stop and temperature adjustment based on indoor temperature sensor signals to improve building comfort and intelligence.

• Also used in security systems to control and monitor devices like access control and surveillance cameras.

Process Control

• In process industries such as chemical and pharmaceutical sectors, receives sensor signals (temperature, pressure, liquid level, etc.) from equipment like reaction kettles and storage tanks.

• When parameters exceed set values, controls valves, pumps, etc., through digital output channels to adjust process parameters and ensure safe and stable production.

Robot Control

• Serves as part of the robot control system, receiving instructions from the robot controller to control robot joint movements, end-effector actions, etc.

• Feeds back status signals of each robot part to the controller for precise control and real-time monitoring, ensuring the robot executes tasks accurately.
