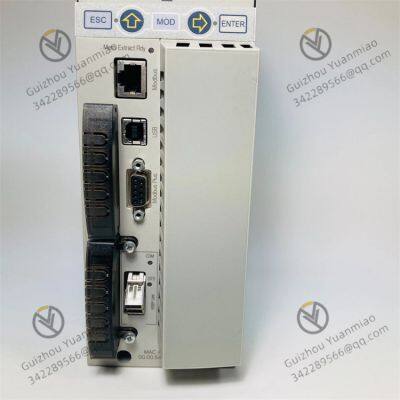

Schneider 140CPU67060 hot standby processor module

Schneider 140CPU67060 hot standby processor module

The 140CPU67060 is a Unity hot standby processor module in Schneider Electric's Modicon Quantum series. The relevant introduction is as follows:

Basic Parameters

• Operating Voltage: Typically 24V DC.

• Scanning Time: The typical value can be as low as 1ms, enabling fast processing of input/output signals and timely response to control commands.

• Memory Expansion: Equipped with a PCMCIA card slot, allowing insertion of data storage memory expansion cards to meet the needs of large-scale data storage and program operation.

•


Functional Features

• Hot Standby Function: Specifically designed for hot standby applications, with redundant processing capability. When the main system fails, the backup system can automatically take over, ensuring continuous and stable system operation, reducing downtime, and improving the reliability of industrial control systems.

• Strong Communication Capability: Usually equipped with multiple communication interfaces, such as Ethernet interfaces and Modbus ports. It supports communication protocols such as Ethernet TCP/IP and Modbus, enabling data transmission and communication with upper-level computers, other PLCs, or intelligent devices, which facilitates remote monitoring and system integration.

• Convenient Display and Operation: The standard configuration includes a 2-line 16-character LCD display with a lens cover to protect internal components. It also features a keyboard with five keys mapped to hardware addresses and two arrow keys with LEDs, making it easy for on-site monitoring of system status and debugging operations.

• Self-Diagnosis Function: With self-diagnosis capability, it can real-time monitor its own working status. When a fault occurs, it can promptly send an alarm signal, helping maintenance personnel quickly locate and eliminate faults, reducing maintenance costs and difficulties.

•


Application Fields

• Manufacturing Industry: Can be used in automated production lines such as automobile manufacturing and electronic device production to achieve precise control and monitoring of the production process, improving production efficiency and product quality.

• Power System: Suitable for substation automation control, power grid dispatching, etc., to ensure the stable operation and efficient management of the power system.

• Oil and Natural Gas: Can be applied to links such as oil and gas field exploitation and pipeline transportation to carry out real-time control and data collection of the technological process, ensuring production safety and stability.

• Building Automation: Used in air conditioning systems, elevator control, lighting systems, etc., in intelligent buildings to achieve intelligent management of buildings and energy conservation.
