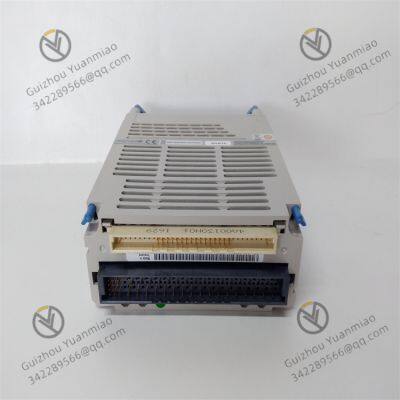

Emerson 1C31179G01 Remote I/O module

Emerson 1C31179G01 Remote I/O module

Advantages and characteristics:

Precise control: After 50 years of development, the Ovation system has formed mature control design technology. As a member of it, the 1C31179G01 module can provide tighter, more precise and predictable control. Combined with advanced control and process optimization software, it can automatically balance the process to achieve the best results.

Stable and efficient communication: The Ovation system features a multi-network structure, which can integrate multiple DCS units and public systems within the factory area through the core switch, achieving comprehensive applications such as data mapping and interlock operations. The network communication is stable, the operation speed is fast, and the data transmission efficiency is high.

Strong compatibility: The Ovation controller to which this module belongs can handle a variety of applications and is compatible with third-party software used for data communication, control, user C language programming and simulation. It is convenient to work in coordination with equipment and software from different manufacturers, which is conducive to system expansion and upgrade.

Support multi-tasking: It can support multi-tasking and priority task planning, capable of handling multiple tasks simultaneously and assigning priorities. This enables the system to rationally allocate resources when facing complex working conditions, ensuring that critical tasks are prioritized for execution, and enhancing the overall operational efficiency and response capability of the system.

Undisturbed switching: The controller can switch completely without disturbance. When the system is undergoing maintenance, upgrade or fault switching and other operations, it will not interfere with the running control tasks, ensuring the continuity and stability of the production process and reducing production fluctuations and losses caused by switching.

Compliant with open system standards: Fully compliant with the POSIX 1003.1B open system standard, it can be seamlessly integrated with other systems that comply with this standard, facilitating integration into different industrial automation control system architectures. Adhering to unified standard specifications, it enhances the interoperability between systems.

Compatible with common signals: Supports 4mA-20mA current signals, which can be conveniently connected to various sensors, transmitters and other devices that follow this signal standard. It can accurately collect signals from on-site devices and transmit them to the control system, and also output the instructions of the control system in the form of this signal to the execution device.

Easy to install and maintain: With dimensions of approximately 12.1cm×5.1cm×14.0cm and a weight of about 0.3kg, it is compact and light, making it convenient to install in industrial environments with limited space. It is also conducive to transportation and handling, as well as convenient for later maintenance and replacement.

Adaptation to industrial environment: The operating temperature range usually meets the general requirements of industrial environments. It can work stably in a certain degree of high and low temperature conditions and has a certain anti-interference ability. It can reliably transmit data in complex industrial electromagnetic environments to ensure the stable operation of the system.

Building flexible systems: As a remote I/O module, it can help build a more flexible control system network. It can achieve centralized monitoring of remote devices, enabling operators to conduct real-time monitoring and control of distant devices from the control room. This reduces the complexity of on-site wiring and lowers installation costs, making it particularly suitable for large industrial production sites or scenarios where equipment is relatively scattered.

Working principle

Principle of Signal access and acquisition

Input signal adaptation

Supports industrial standard 4-20mA current signal input (also compatible with other analog signals), which is usually generated by on-site sensors (such as pressure transmitters, temperature sensors, etc.) and represents the physical quantity being measured (such as temperature, pressure, flow rate, etc.).

The module receives signals through an internal high input impedance circuit (typically at the megohm level), reducing the load impact on the sensor output and ensuring the accuracy of signal acquisition.

Signal conditioning and conversion

The input analog current signal first passes through the signal conditioning circuit (such as filtering, amplification, and anti-interference processing) to eliminate noise interference and stabilize the signal.

The conditioned signal is converted into a digital signal (such as 16-bit binary data) by an analog-to-digital converter (ADC), facilitating subsequent digital processing and transmission.

Data transmission and communication mechanism

Remote communication network architecture

The module, as the remote node of the Ovation system, is connected to the central controller (or main control unit) through a redundant network (such as Ethernet or dedicated control bus), forming a distributed control system (DCS) architecture.

It adopts multiple network protocols (such as communication protocols that comply with industrial standards), supports real-time data transmission and two-way communication, and ensures reliable data interaction between remote devices and the main control system.

Data transmission process

Upstream transmission: The module packages the converted digital signal into data frames and sends them to the central controller via the network for real-time monitoring, logical operations or execution of control strategies by the system.

Downlink transmission: Receive control instructions (such as digital signals) sent by the central controller, process them internally and convert them into analog signals (such as 4-20mA), then output them to the actuator (such as valves, motors) to achieve control of on-site equipment.

Control logic and processing functions

Local preprocessing capacity

The module has basic data preprocessing functions (such as linearization, range conversion, and fault diagnosis), which can conduct preliminary processing on the collected raw data and reduce the computational burden of the central controller.

Supports multi-task parallel processing, capable of simultaneously handling signal acquisition and data transmission tasks of multiple channels, and allocating resources based on priority to ensure the real-time performance of critical signals.

Collaboration with the Ovation system

The open control architecture integrated into the Ovation system works in coordination with the controller, human-machine interface (HMI), optimization software, etc. in the system:

The central controller acquires on-site data through modules and executes complex control algorithms (such as PID control and advanced process control).

After receiving the instructions from the controller, the module outputs the corresponding control signals to achieve the closed-loop process of "monitoring - control - feedback".

Reliability design and fault handling

Electrical protection and isolation

It integrates overvoltage and overcurrent protection circuits internally to prevent damage to the module caused by on-site equipment failures (such as short circuits and grounding).

Channel isolation techniques (such as photoelectric isolation or transformer isolation) are adopted to ensure electrical isolation (typically up to 1500Vrms) between each signal channel and the ground, reducing the impact of electromagnetic interference (EMI) and common-mode interference.

Fault diagnosis and self-maintenance

The advanced diagnostic function is used to monitor the module status in real time (such as power abnormality, channel failure, communication interruption), and report the fault information to the system, facilitating maintenance personnel to quickly locate the problem.

It supports hot-swappable design, allowing modules to be replaced without interrupting system operation, ensuring the continuity of industrial production.

Workflow in typical application scenarios

Take the temperature control of chemical reaction vessels as an example:

Signal acquisition: The temperature sensor converts the temperature of the reaction vessel into a 4-20mA current signal and inputs it to the 1C31179G01 module.

Analog-to-digital conversion: The module converts the current signal into a digital quantity, which is preprocessed and then transmitted to the Ovation controller via the network.

Control operation: The controller calculates the control quantity (such as the opening degree of the heating valve) based on the deviation between the set temperature and the actual temperature.

Instruction output: The controller sends the control instructions to the module via the network. The module converts the digital signal into a 4-20mA current signal to drive the valve to perform the action.

Closed-loop feedback: The module continuously collects temperature signals to form a closed-loop control, ensuring that the temperature of the reaction vessel remains stable within the set range.

Summary

The working principle of the 1C31179G01 module is essentially a digital bridge for industrial signals. By adapting to industrial standard signals, relying on distributed communication networks, and integrating the control logic of the Ovation system, it achieves seamless connection between remote devices and the central control system. Its core advantages lie in reliability, real-time performance, and compatibility with open systems. It is applicable to the automation control requirements of complex industrial scenarios such as petroleum, chemical engineering, and power.
