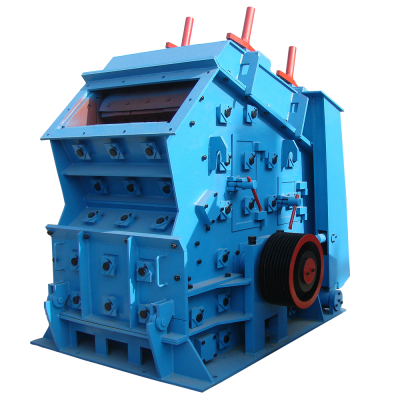

Impact Crusher 30-50TPH The Most Sold 2025 Stone Crusher Limestone Quarry SHANGHAI CRONUS
≥1 Metric Ton
- 0 Metric Ton / Metric Tons per Month
- T/T L/C PayPal D/P Western Union Other
- 30 days
Product Details
| Type | Impact Crusher | Warranty | 1year | |
| Motor Power | 110kw | Condition | New | |
| Motor Type | AC Motor | Application | Highway | |
| Materials | Limestone | Outlet Size | 150-300mm | |
| Inlet Size | 250×1300mm | Origin | china |
Product Description
PF Impact Crusher OverviewRotor: The core component of the equipment, consisting of the main shaft, plate hammer, and rotor disc.
Impact Plate: Fixed on the frame, forming a crushing chamber with the rotor.
Ball Hammer: Installed on the rotor, directly impacts the material.
Frame: The main structure supporting the equipment.
Adjustment Device: Controls the particle size of the discharge.
Transmission Device: Including motor, pulley, and transmission shaft.
PF impact crusher uses impact energy to implement the material crushing process. Material enters the range of action of the plate hammer, receives high-speed impact, and is thrown to the impact device. After hitting the impact liner, the material rebounds back for another round of counterattack. This process circulates continuously until reaching required particle size.
Limestone, granite, basalt
Aggregates, cement raw materials
Phosphate ore, sulfur ore
Metallurgical slag, refractory
Large crushing ratio, high production efficiency
Many cubic particles, suitable for aggregates
Compact design, easy maintenance
High efficiency, low operating cost
| Model | Specification (mm) | Feed Port Size | Max Feed Size | Capacity (t/h) | Power (kw) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| PF-1007 | ?1000×700 | 400×730 | 250 | 15-50 | 37-55 | 2400×1560×2660 |
| PF-1010 | ?1000×1050 | 400×1080 | 300 | 50-80 | 55-75 | 2440×2250×2630 |
| PF-1210 | ?1250×1050 | 400×1080 | 300 | 70-130 | 110-132 | 2700×2340×2870 |
| PF-1214 | ?1250×1400 | 400×1430 | 300 | 90-180 | 132-160 | 2700×2695×2900 |
| PF-1315 | ?1320×1500 | 860×1520 | 350 | 120-250 | 180-260 | 2860×2800×3050 |
| PF-1320 | ?1320×2000 | 860×2030 | 500 | 160-350 | 300-375 | 2870×3350×3090 |
The above output is determined by crushing medium hardness limestone.
