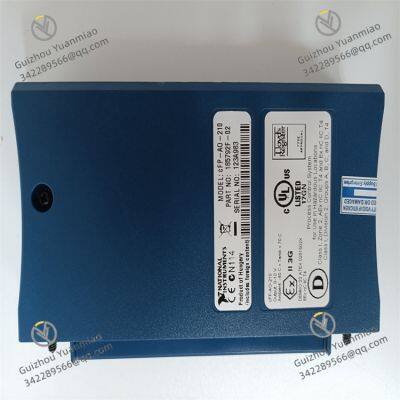

NI CFP-AO-210 8-Channel Voltage Output Module

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Output Ranges	±10V, ±5V, ±1V, 0?10V, 0?5V, 0?1V
Safe Operating Voltage	250V	Operating Temperature Range	?40°C to +70°C

Product Description

NI CFP-AO-210Functional Features

Analog Signal Output
Generates high-precision analog voltage signals for driving actuators, testing equipment, or simulating sensor inputs. Suitable for industrial control, automated testing, scientific research, and experimental scenarios.
Multi-Channel Output Capability
Equipped with 4 analog voltage output channels, supporting simultaneous output of multiple independent signals to meet collaborative control needs of multiple devices.
Configurable Output Ranges
Supports multiple software-configurable output ranges, including:
±10V, ±5V, ±1V, 0?10V, 0?5V, 0?1V
Compatible with input ranges of different load types, offering strong adaptability.
High Resolution and Accuracy
Adopts 16-bit resolution with output voltage accuracy up to ±0.01% of full scale, ensuring stable and accurate signal output.
Isolation Characteristics
Features 2500Vrms input-output isolation to prevent electrical interference and device damage, enhancing system safety for complex electrical environments.
Plug-and-Play & Hot Swap
Enables quick installation and insertion/removal during system operation without powering off, improving maintenance convenience.

Technical Parameters

Parameter Type	Specific Index
Number of Output Channels	4 analog voltage outputs
Resolution	16 bits
Output Ranges	±10V, ±5V, ±1V, 0?10V, 0?5V, 0?1V
Output Accuracy	±0.01% (full scale)
Isolation Voltage	2500Vrms (input-output isolation)
Safe Operating Voltage	250V
Update Rate	Up to 1 MS/s (per channel)
Operating Temperature Range	?40°C to +70°C

Application Areas

Industrial Automation Control
Drives actuators like servo motors and control valves to achieve precise adjustment of production line speed, pressure, and flow.
Testing and Measurement Systems
Simulates sensor signal sources for equipment calibration, fault simulation, or performance testing (e.g., power supply and amplifier testing).
Robotics and Mechanical Control
Outputs control signals to joint drivers for precise control of robot movement trajectories.
Scientific Research and Laboratory Scenarios
Generates waveform signals (e.g., sine waves, square waves) for physics and electronics experiments, or drives precision instruments (e.g., spectrometers, oscilloscopes).

Common Faults and Solutions

Abnormal Output Signal (e.g., voltage deviation, fluctuation)
Possible causes: Incorrect output range configuration, overload, poor cable contact, or ground interference.
Solutions:

Confirm the software-configured output range matches load requirements.
Check if load impedance is within the module's rated range (e.g., ≥1kΩ).
Replace with shielded cables, ensure good grounding, and keep away from strong electromagnetic interference sources.

No Output from Channel
Possible causes: Abnormal driver, hardware damage, or disabled channel.
Solutions:

Reinstall or update NI official drivers.
Check channel configuration via NI MAX software to confirm if output is enabled.
If hardware failure occurs, contact after-sales service for module circuit inspection.

Module Communication Interruption
Possible causes: Bus interface failure, unstable power supply, or incompatible communication protocol.
Solutions:

Check CFP chassis power and bus connections to ensure stable supply voltage (e.g., 24V DC).
Confirm communication protocols (e.g., PCIe, EtherCAT) are compatible with the system, and restart the device to reset the communication link.

Comparison with NI CFP-AI-100

Characteristic	NI CFP-AI-100 (Analog Input Module)	NI CFP-AO-210 (Analog Output Module)
Core Function	Acquires analog signals and converts to digital quantities	Generates analog voltage signals to drive external devices
Channel Type	8 analog inputs (voltage/current)	4 analog voltage outputs
Resolution	12 bits	16 bits
Typical Applications	Sensor data acquisition, equipment monitoring	Actuator control, signal source simulation

Summary

As a high-precision analog output module, NI CFP-AO-210 is suitable for scenarios requiring precise signal control, leveraging its multi-channel, high-resolution, and strong isolation features. During use, pay attention to matching output ranges with loads and regularly troubleshoot interference and driver issues to ensure stable system operation.
