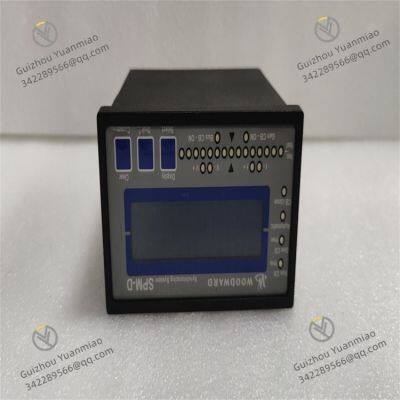

Woodward 5448-906 REVSPM-D10 Digital Regulating Controller

The device cannot communicate with the host computer (such as PLC, monitoring system), or data transmission is interrupted or lost.

The Ethernet port or RS-232 port indicator lights are off or flashing abnormally.

Check if both ends of the communication cable are tightly plugged, and replace with a spare cable for testing.

Wipe the port contacts with alcohol to remove oxidation; if the interface is damaged, contact maintenance or replace the module.

Confirm communication parameters through device configuration software (such as AppManager) to match the host computer settings (e.g., baud rate 9600, 8 data bits, 1 stop bit, no parity).

Replace communication cables with shielded wires, lay them separately in metal pipes, and keep them away from interference sources.

The speed of the engine/turbine controlled by the device is unstable, or it cannot reach the set value.

Actuators (such as valves, oil pumps) act abnormally, unresponsive or misbehaving.

Use a multimeter to measure the sensor output signal (e.g., a magnetoelectric sensor should output an alternating voltage when rotating, with frequency proportional to speed). If the signal is missing or abnormal, replace the sensor.

Check the sensor cable connection to ensure the shield layer is well grounded.

Re-initialize parameters with reference to the equipment manual, and gradually debug starting from default values (e.g., adjust the proportional coefficient first, then the integral time, and finally fine-tune the derivative coefficient).

For issues related to "isochronous regulation" or "droop regulation", check if the difference setting is reasonable (such as the current threshold for differential protection).

Manually test the actuator action (e.g., send open/close signals to the valve and observe the response). If sticking occurs, clean or replace components; if there is a circuit fault, check the drive board power supply and relay coil resistance (normal should be tens to hundreds of ohms).

The device cannot power on, and the power indicator is off; or it frequently restarts or freezes after powering on.

Use a multimeter to measure the input voltage. If it exceeds the rated range (refer to the equipment manual, typically DC 24V or AC 220V), install a voltage stabilizer or check the power supply circuit.

Open the module casing, check if the internal fuse is blown (glass tube fuse can be visually judged), and replace it with the same Specification (note: power off before operation).

If the power module overheats or smells burnt, contact professionals to replace the power board; non-professionals should not disassemble it to avoid electric shock or worsening the fault.

The device panel or host computer displays alarm codes such as "overload", "overspeed", or "differential protection action".

Immediately stop the machine to check the equipment working conditions, and eliminate issues such as mechanical jamming or excessive load (e.g., whether the steam turbine inlet steam volume is too large, or the engine load suddenly increases).

Reset the protection threshold through configuration software (must comply with equipment safety specifications, e.g., set the overspeed trip threshold to 110% of the rated speed).

Calibrate the sensor (e.g., compare the speed sensor with a tachometer). If the signal drifts severely, replace the sensor.

Check if the wiring of the current transformer for differential protection is correct (whether the end with the same name is consistent), and if the ratio parameter matches the actual value (e.g., CT ratio 1000/5A, which needs to be set to 200 in the software).
