BENTLY NEVADA 21000-00-00-00-015-04-02?

Sales manager:  Jane Li

Mobile/whtasapp : +86 18950128464

Email: sales5@askplc.com

Manufacturers： Bently Nevada

Part number：21000-00-00-00-015-04-02

Condition：Brand New

Lead time: 1-2 working days.

Type of payment:T/T and Western Union.

Courier partners: DHL, UPS, TNT, FedEx and EMS.

Technical specification, manuals and data sheets: Available on request.

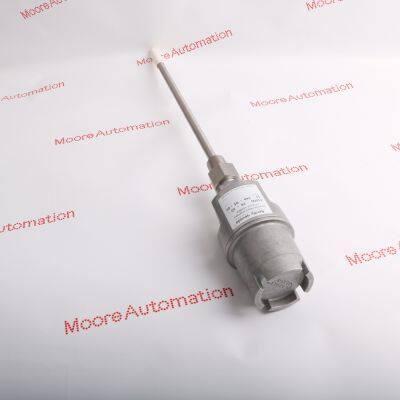

Product Type: Proximity Probe Housing Assemblies
Made in U.S.A
Certificate of Origin (COO): Available upon request

Probe Option with Connector: 15 = 3300 XL 5 mm probe

Probe Cable Length Option: 04 = 4.0 metre (157 in)

Standoff Adapter: 00 = No standoff adapter

Probe Penetration: 015 = 1.5 in

Fittings Option: 00 = No additional fittings

Mounting Thread Option: 02 = 3/4-14 NPT (required when no standoff adapter is used)

Material: Aluminum housing with 304 stainless steel sleeve

00

Probe not required

14

420 nuclear

15

300 nuclear

16

3300 XL 8 mm probe

26

3300 XL NSv probe

27

3300 XL NSv probe, selectable hazardous area approvals

28

3300 XL 8 mm probe, selectable hazardous area approvals

29

3300 XL 11 mm probe

30

3300 XL 11 mm probe, selectable hazardous area approvals

31

3300 XL NSv probe with connector protector

32

3300 XL NSv probe with connector protector, selectable hazardous area approvals

33

3300 XL 8 mm probe with connector protector

34

3300 XL 8 mm probe with connector protector, selectable hazardous area approvals

35

3300 XL 11 mm probe with connector protector

36

3300 XL 11 mm probe with connector protector, selectable hazardous area approvals

37

3300 XL 8 mm probe, ETR, selectable hazardous area approvals (available for 21000 only)

B: Probe Cable Length

00

Probe cable not required

05

0.5 m (20 in)

10

1.0 m (39 in)

12

12.0 in

18

18.0 in

24

24.0 in

30

30.0 in

36

36.0 in

C: Standoff Adapter Length (Option C Dimension)

Must be ordered if Standoff Adapter Length option is not 00.

15

Minimum length 1.5 in (38 mm)

75

Maximum length 7.5 in (191 mm)

Recommendation Order in increments of 0.5 in (13 mm)

Examples 1.5 in (38 mm) = 15 No standoff adapter = 00

D: Probe Penetration (Option D Dimension)

10

Minimum length 1.0 in (25.4 mm)

Other

Recommendation Order in increments of 0.1 in (3 mm)

Examples 3.7 in (94 mm) = 037 2.4 in (569 mm) = 224

For probe penetration lengths between 1.0 and 2.0 inches, it may be necessary to counter bore the machine case to reduce probe side view or rear view effects

If you select a probe penetration length (C plus D) greater than 300 mm (12 in), you must add sleeve support near the probe to prevent resonance from occurring. Adjustment range of probe penetration option D is 13 mm (± 0.5 in). For the maximum value of C plus D, See 21000/CA21000 Dimensions on page 15..

00

Without fittings

01

One explosion-proof fitting and one plug

02

Two explosion-proof fittings

03

One 3/4-14 NPT plug One 3/4-14 to 1/2-14 NPT reducer One cable seal grip with grommets for the following cable sizes: ? 1/8 to 3/16 inches ? 1/4 to 5/16 inches ? 5/16 to 3/8 inches

04

One 3/4-14 NPT plug only

01

As cast without threads

02

3/4-14 NPT

03

Will default to 02 option if C:Option Standoff Adapter Length option is not 00.

04

1/2-14 BSP
