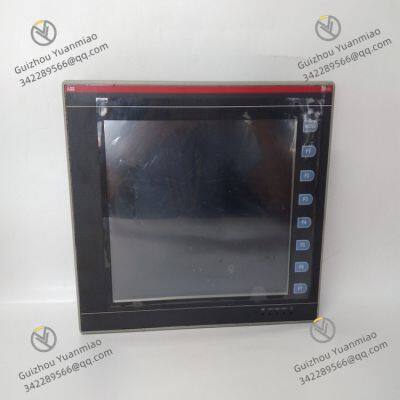

ABB CP450T-ETH 1SBP260189R1001 Operation Panel

Equipped with a 10.4-inch TFT color LCD display, featuring a resolution of 640×480 pixels and 64K color display, which clearly presents various industrial-related graphics, text, and data.

Fitted with a resistive touchscreen for sensitive operation, enabling various device controls and parameter settings via touch.

Includes 1 menu key and 7 function keys for quick operations.

Features rich communication interfaces, including an Ethernet port supporting protocols such as TCP, UDP, HTTP, and DHCP, allowing easy access to industrial networks for data interaction with other devices.

Equipped with 3 serial ports: RS 232/RS 485, RS 232/RS 422/RS 485, and RS 232/RS 485, to connect with different types of industrial devices.

Provides 2 USB ports for external storage devices, keyboards, mice, and other peripheral devices.

Has 512KB of user data memory (RAM) and 8MB of user program memory (ROM) to store historical data, alarm records, user programs, etc., meeting data storage requirements in industrial fields.

Supports real-time clock function with a rechargeable lithium battery to ensure the clock runs normally during power outages.

Offers 9-level password protection, with different operation permissions for different user levels, effectively preventing unauthorized operations and ensuring system security.

Integrates GG-type fuses for short-circuit protection, enhancing the device's reliability in industrial environments.

Programmable via CP400 soft programming software, supporting functions such as alarm management, recipe management, trend analysis, macro instructions, and ladder diagram sub-screens.

Enables real-time monitoring of device operation status, sending alarm signals promptly in case of anomalies.

Stores and manages multiple process recipes for easy parameter switching during production.

Trend analysis function helps analyze production data and optimize production processes.

Power supply: 24V DC, allowable range 20.4–27.6V DC, power consumption 30VA.

Product dimensions: 297mm (W) × 52mm (D) × 222mm (H).

Net weight: 1.9kg, gross weight: 3.12kg.

Installation method: Front panel installation, installation angle 0–135°.

Operating temperature: 0°C–+50°C, storage temperature: –10°C–+60°C.

Front panel protection rating: IP65/NEMA 4X (indoor use only), adaptable to various industrial environments.

Processor and Memory:
Equipped with a high-performance processor (such as ARM Cortex-A series), combined with 1GB RAM + 8GB Flash memory, to process user operation instructions, industrial protocol data, and interface rendering tasks in real time. RAM runs temporary programs (such as configuration software processes and communication protocol stacks), while Flash stores system firmware, user programs, and historical data (such as trend records and alarm logs).

Display and Touch Module:
The 10.1-inch TFT color display (1280×800 pixels, 16 million colors) receives image data through the driver chip and is illuminated by a backlight (LED). The capacitive touchscreen detects capacitance changes when touched by a finger, transmits coordinate signals to the processor, and enables multi-touch (zooming, swiping) and gesture operations.

Communication Interfaces:

Embedded Operating System:
Based on Linux or Windows Embedded systems, responsible for managing hardware resources (memory allocation, interface scheduling), running device drivers (screen, touch, communication module drivers), and providing application programming interfaces (APIs).

Real-time Data Processing Engine:
Built-in real-time database caches, filters, and preprocesses data collected from industrial sites (such as temperature, pressure, device status), ensuring data refresh rates match industrial control requirements (typically millisecond-level response).

Configuration Software Logic:
Customizes interface elements (buttons, gauges, trend charts) through software such as ABB Panel Builder 300 and defines interaction logic:

Data Management and Storage:
Supports local storage of historical data (such as process parameter trends) or uploads to servers via Ethernet. Users can query and export data through the interface for process optimization.
