Lightweight vibration board Concrete vibration shovel
1 - 14 Piece
≥15 Piece
- qingdao
- T/T
- 25 days
You May Like
-
Rack lifting machine Railway starting machine
-
Pneumatic rail sawing machine Mining pneumatic cutting saw
-
Hand-propelled gasoline mower
-
Electric fusion welding machine Fully automatic electric melting machine
-
Hydraulic hot melt machine Welded pipe hot melt machine
-
Flower rack fence bending machine Iron coil flower machine
Product Details
| Transport Package | Wooden crate | Specification | 32DPS | |
| Trademark | xinlongwang | Origin | china |
Product Description

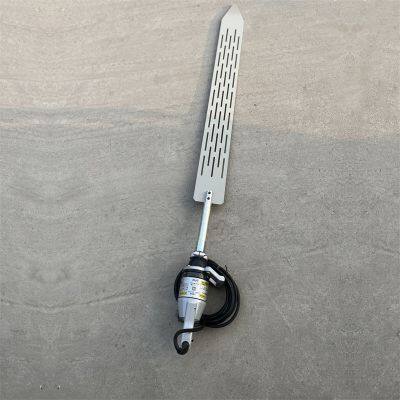

A vibrating shovel is similar to a concrete vibrating rod, with air holes on it. After vibration, it can bring out bubbles, making it suitable for removing bubbles and surface processing. Directly transmitting the strong vibration of the motor to the vibration plate is very effective for defoaming and sloping surfaces where bubbles are difficult to remove. The vibration transmitted from the vibrating plate gathers bubbles and rises together with the vibrating plate, forming a beautiful surface.
Technical Parameter：
model | 32DP | 32DPS | 32DH |
output | 280 W | 280 W | 280 W |
voltage | 220 V | 220 V | 220 V |
frequency | 225～275 Hz | 205～280 Hz | 225～275 Hz |
entire length | 1138mm | 1739mm | 1070mm |
Vibrating plate | 300*400mm | 120*1219mm | 50*550mm |
Vibration Department | 829mm | 1430mm | 761mm |
7.5kg | 7.8kg | 5.6kg |
