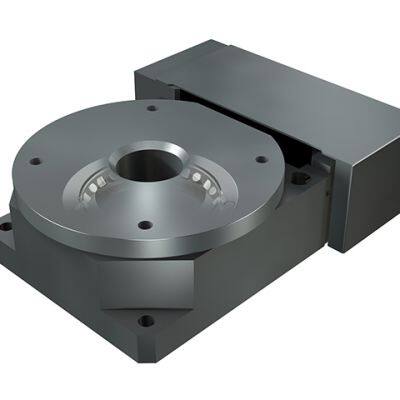

KNE Japan IKO positioning worktable AT high rigidity rotation direction positioning

Product Introduction: The calibration worktable AT uses a high rigidity steel worktable and base, with IKO cross roller bearings installed in the bearings supporting the worktable. It is a rotary positioning mechanism used for precision angle compensation. The calibration workbench AT can convert the linear motion driven by ball screws into circular motion within a certain angle range, and calibrate the workbench along the rotational direction. The linear guide of the ball screw drive mechanism uses IKO linear guide L, which is combined with precision ball screws to achieve high-precision positioning. The calibration workbench AT is set on the sliding table of the IKO precision positioning workbench to form a low height XY - θ multi axis positioning mechanism, which can be used as a positioning workbench for precision measuring instruments, testing machines, assembly machines, etc.
