Home > Products > APG machine > APG clamping machine double station for epoxy resin CP/VP insulator bushing spout

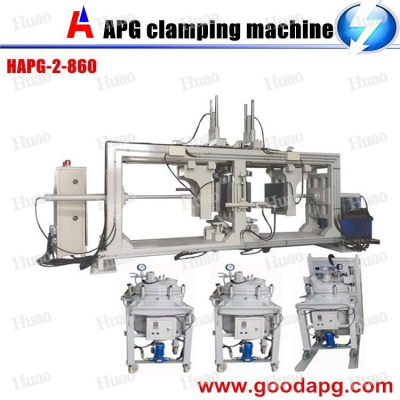

APG clamping machine double station for epoxy resin CP/VP insulator bushing spout
- 200 Set / Sets per Month
- Ningbo
- T/T L/C
- 60 days
You May Like
-
APG casting machine with mould for electrical resin transformer insulator bushing spout
-
APG clamping machine mixing machine epoxy resin CP/VP insulator bushing spout
-
full aotomatic press gelation APG clamping machine customized with epoxy resin mould for PT/CT insulator
-
epoxy resin injection mould customized with APG machine for transformer insulator
-
epoxy resin casting mould customized with APG machine for pt/ct insulator
-
APG resin mould cuntomized with APG clamping machine for electrical transformer insulator outdoor
Product Details
| Material | Steel | Certification | REACH, FCC, ROHS, CE | |
| Warranty | 1 year | Application | Car, Electronic | |
| Surface Treatment | Heat Treatment | After-sales Service | 1 year | |
| Mould Life | <500,000 shots | Demoulding | Slide | |
| Customized | Customized | Condition | New | |
| Using Hardness | >HRC45 | Average Wall Thickness | >3mm | |
| Transport Package | export wooden case | Specification | customized | |
| Trademark | Huaao | Origin | China |
Product Description
Huaao company workshop
This machine is designed with 2 work station, clamp plate size is 600×800mm, support 2 moulds work on same machine, greatly improved the efficiency, it is special used for produce simple designed products, such as insulator, bushing and sensor.
Our engineers have over 30 years of technical experience and are highly renowned in the industry.
We offer overseas on-site technique training:
1. Offer epoxy resin production line consulting service.
2. Supply High quality APG machine, mixing device, APG&casting Mold, CT/PT winding machine.
3. Produce qualified samples with APG machine and molds before dispatch, guarantee APG machine and molds are in good condition.
4. One-site training APG technique till you control produce products by yourself.
Advantages:
1. Servo motor control
2. PLC touch screen Control
3. Can save more than 100 product dates.
4. Fully automatic design
- Auto start machine & heating clamp plate.
- Auto setting hydraulic pressure
- Auto setting heating temperature
- Auto setting valve flow
| Model No. | HAPG-860-2 |
| clamp plate size | 600X800mm |
| clamp force | 18T |
| Min Max clamp plate stroke | 240X1250mm |
| Upper&lower core puller stroke | 760X350mm |
| Heating power | 24KW |
| hydraulic power pack | 7.5KW |
| Horizontal tilting angle | 0-5° |
| mould load weight | 2T |
| Machine weight | 7500KG |
| Machine dimension | 7300X1300X3100mm |
