- Jiangshan Huaao Electricity Technology Co., Ltd.
-
Quzhou, Zhejiang, China
- Main products: APG machine, APG mould, epoxy resin mould, winding machine
Home > Products > APG machine > APG machine epoxy resin transformer casting machine

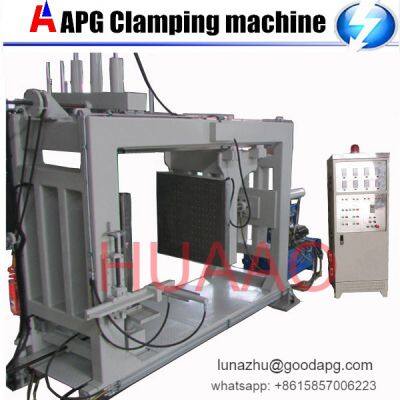

APG machine epoxy resin transformer casting machine
USD $40000 - $50000
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- Ningbo
- T/T L/C
- 60 days
You May Like
-
APG clamping machine epoxy resin transformer casting machine with PLC
-
epoxy resin clamping machine APG machine automatic pressure gelation vacuum casting machine
-
resin casting machine APG machine for epoxy resin electrical transformer insulator bushing spout
-
epoxy resin transformer mould with APG machine for epoxy resin PT/CT insulator bushing spout
-
APG clamping machine vacuum clamping pressure with mixing injection stirrer for epoxy resin chinese manufacture
-
APG automactic pressure gelation machine vacuum clamping casting machine for epoxy resin mould chinese manufacture
Product Details
| Material | Steel | Certification | REACH, FCC, ROHS, CE | |
| Warranty | 1 year | Application | Electronic | |
| Surface Treatment | Heat Treatment | After-sales Service | 1 year | |
| Mould Life | <500,000 shots | Demoulding | Slide | |
| Customized | Customized | Condition | New | |
| Using Hardness | >HRC45 | Average Wall Thickness | >3mm | |
| Transport Package | export wooden case | Specification | customized | |
| Trademark | Huaao | Origin | China |
Product Description
Huaao company workshop
Product Description
- Advantages:1.Electronic vacuum gauge more precision
2.Oil cycling heating surround pot, heated evenly
3.Thin film de-gassing, excellent vacuumize
4.Adopt frequency motor to control mixing speed, quick degassing uniform mixing
5.Compact structure, less space, flexible use
6.Triple safety design, The temperature control system has functions of temperature display, automatic temperature limiting, safety protection and so on
7.Use stirring and injection vehicle directly, it is convenient to use
Our engineers have over 30 years of technical experience and are highly renowned in the industry.
we offer overseas on-site technique traning.
1. Offer epoxy resin production line consulting service.
2. Supply High quality APG machine, mixing device, APG&casting Mold, CT/PT winding machine.
3. Produce qualified samples with APG machine and molds before dispatch, guarantee APG machine and molds are in good condition.
4. One-site training APG technique till you control produce products by yourself.Model No. HAPG-1200 clamp plate size 1000×1200mm clamp force 240KN Min Max clamp plate stroke 240X1250mm Upper&lower core puller stroke 760X350mm Heating power 24KW hydraulic power pack 7.5KW Horizontal tilting angle 0~5° mould load weight 2T Machine weight 5300KG Machine dimension 3400*1600*3100mm
