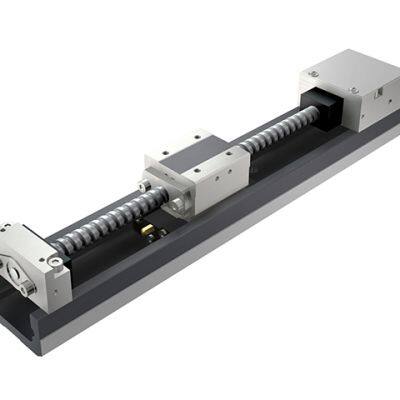

KNE Japan IKO-TU series precision positioning module with optional sensor XY bracket

Product Introduction: The precision positioning worktable TU is a compact and small positioning worktable that is equipped with a sliding table on the inner side of a U-shaped slide rail. The sliding table and linear guide rail are integrated structures, and adopt a structure of two rows of large-diameter steel balls in 4-point contact with the track, which can maintain stable high precision and rigidity even when used for loads with directional and size changes and composite loads. In addition, the use of U-shaped sliding rails greatly improves the resistance and rigidity of the sliding rails to torque. There are 8 types of guide rail widths for the precision positioning worktable TU, ranging from 25mm to 130mm, and the length of the sliding table can be selected. In addition, various specifications such as the type of ball screw, lead, type of motor, and installation of sensors can be selected to form the optimal positioning workbench according to the purpose.

Company Profile: Shenzhen Nenel Transmission Technology Co., Ltd. was established in 2012, committed to exploring the market for linear transmission products and expanding the professionalism of the transmission product field. We provide professional technical support and services in the electronic semiconductor industry (solar energy, flat panel displays, hard drives, LEDs, printed circuit boards, optics), medical device industry, automation equipment and other industries. Enterprise products include industrial robots, precision modules, and linear transmission product components, aimed at improving the efficiency and accuracy of production lines. The main cooperative brands are: IKO from Japan, IGW from Japan, KSS from Japan, and issoku from Japan.
