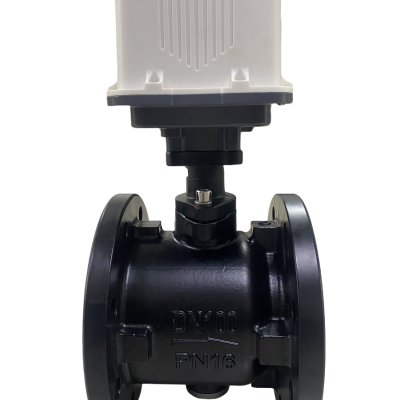

DN50-DN200 large-diameter intelligent control valve | Remote valve control, real-time adjustment, abnormal alarm
- 1000 Piece / Pieces per Month
- T/T
You May Like
-
Room temperature thermostat Low power consumption Remote valve control Real-time acquisition Multiple working modes
-
NB-IoT temperature and humidity collector LCD display alarm function online upgrade
-
NB-IoT Smart Water Meter | Prepaid Water Meter | Remote Monitoring and Leak Detection | Municipal and Home IoT Water Meter
-
DN15-DN40 Ultrasonic Water Meter R250 Household Smart Water Meter NB-IoT/LoRaWAN/RS485/M-Bus
-
Ultrasonic Heat Meter with RS485/M-Bus/Cat1 Pulse Output
-
Cat1 IoT 4G Water Meter Intelligent Prepaid Valve Control Remote Wireless Meter Reading
Product Details
| Brand Name | Highwell Electronic | Place of Origin | China |
Product Description
Features
1.Open - time Recording: Records the duration when the valve is in the open state.
2.Heating Balance: Calculates and adjusts the valve opening in real - time based on the return water temperature and the set temperature control strategy to ensure balanced heating.
3.Remote Control & Fault Detection: Allows remote valve control, detects valve malfunctions, and supports anti - tamper detection.
4.Anti - Seize Function: Periodically opens and closes the valve to prevent seizing, with a configurable cycle.
5.Optional Monitoring & Communication: Optional functions include inlet and return water temperature monitoring and wireless communication.
6.Alarm Functions: Alerts for battery under - voltage, valve failure, abnormal temperature, and sudden temperature changes.
7.Precise Regulation: Supports multiple control methods such as magnetic detection and time - based adjustment for more accurate valve opening control.
8.OTA Upgrade: Enables over - the - air online upgrades for continuous function optimization.
9.Manual Adjustment: Allows manual valve opening and closing via the valve body buttons and gears.
Technical Parameter
| Large-caliber wireless intelligent control valve | |
| Performance | parameters |
| Working voltage | DC3.6V |
| Battery capacity | About 40000mah（DN50-DN80） |
| About 80000mah（DN100-DN200） | |
| Maximum output torque | 80N.m（DN50-DN80） |
| 150N.m（DN100-DN200） | |
| Temperature sensor | PT1000 |
| Display mode | LED、LCD |
| Communication interface | LoRa、NB-IoT、Cat1 |
| Large-caliber wired intelligent control valve | |
| Performance | parameters |
| Working voltage | DC12-24V, AC12-20V |
| Maximum output torque | 80N.m（DN50-DN80） |
| 150N.m（DN100-DN200） | |
| Temperature sensor | PT1000 |
| Power supply current | ≥2A |
| Communication interface | RS485、M-Bus |
Outline Dimension
| Nominal Diameter | Length L (mm) | Width W (mm) | Height H (mm) | Flange |
| DN50 | 140 | 218.7 | 306 | 4-M16 |
| DN65 | 140 | 218.7 | 317 | 4-M16 |
| DN80 | 176 | 222.5 | 348.5 | 8-M16 |
| DN100 | 188 | 232.5 | 375.5 | 8-M16 |
| DN125 | 217 | 250 | 404 | 8-M16 |
| DN150 | 255 | 285 | 432 | 8-M20 |
