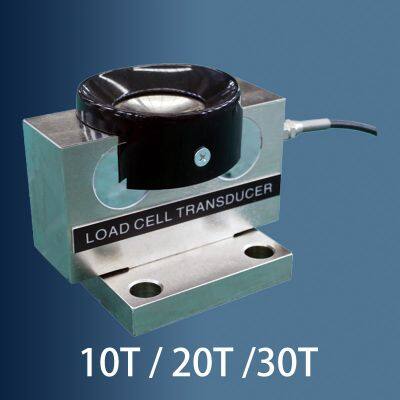

shortbridge type load cell weight sensor 30 ton capacity alloy steel
- 50 Set / Sets per Month
- qingdao,tianjin,shanghai,ningbo
- T/T
- 10 days
You May Like
-
JFL-1320C 0.1T-3T weight sensor for small ground scale
-
shear beam weight sensor for small ground scale
-
cantilever beam weight sensor 100kg 200kg 250kg 500kg 1 ton 2 ton 3 ton
-
JFL-16A-G weighing sensor load cell for packaging machine
-
JFL-16IL alloy steel weight sensor for automatic industries
-
alloy steel weight sensor shear beam load cell for small ground scales
Product Details
| Brand Name | jinfenglin | Place of Origin | China | |
| Model Number | JFL-19QS | Usage | Other, load cell | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description
l made of alloy steel
l adopting laser welding seal or rubber seal treatment
l nickel plated surface, waterproof, anti-corrosion, suitable for various working conditions
l suitable for truck scale, railway scale, etc.
Technical parameters | ||
Model: JFL-19QS | Material: good quality alloy steel | |
Capacity: 10T-30T | Output resistance:700±3Ω | |
Output sensitivity:2.0±10%MV/V | Input resistance: 750±10Ω | |
Zero point output:±1%FS | Comprehensive error:≤±0.03% | |
Nonlinear: 0.03%FS | Repeatability: 0.03%FS | |
Excitation voltage:5-15V | Working temperature range: -20℃ to +70℃ | |
Safe overload:150% | Ultimate overload:200% | |
Cable: φ5.7x16m, φ5.7x12m | Insulation resistance:≥5000MΩ | |
Cable connection: red: Power + black: Power - green: signal + white: signal - (can be 6 core wire) | ||
