JFL-13 cantilever beam weight sensor load cell for small forklift
- 50 Piece / Pieces per Month
- qingdao, tianjin,shanghai,ningbo
- T/T
- 10 days
You May Like
-
bridge type ball cup digital analog load cell weight sensor C3 accuracy
-
Ball Cup Type Weight Sensor white base analog or digital 30 ton 40 ton load cell
-
shortbridge type load cell weight sensor 30 ton capacity alloy steel
-
JFL-1320C 0.1T-3T weight sensor for small ground scale
-
shear beam weight sensor for small ground scale
-
cantilever beam weight sensor 100kg 200kg 250kg 500kg 1 ton 2 ton 3 ton
Product Details
| Brand Name | jinfenglin | Place of Origin | China | |
| Model Number | JFL-13 | Usage | Other, weight sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description

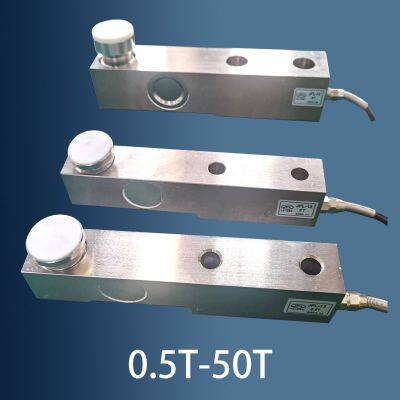

JFL-13 cantilever beam weight sensor
l Cantilever beam structure, simple and easy to install
l High reliability, stable and accurate weighing, long working time, high cost-effectiveness
l Can choose analog model, digital model, anti-lightning model, low temperature resistance model, high temperature resistance model
l suitable for truck scale, platform scale, railway scale, etc.
P(t) | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | L1 |
0.5-3 | 203 | 95 | 98 | 64 | 22 | 43 | 37 | 30 | φ16 | φ32 | φ13 | 37 | φ35 | 10.4 | 44.9 | |
5,8 | 235 | 110 | 124 | 66 | 22 | 52 | 48 | 30 | φ22 | φ38 | φ21 | 48 | φ42 | 19.7 | 56.7 | |
10 | 279 | 133 | 140 | 82 | 32 | 67 | 60 | 20 | φ32 | φ48 | φ28 | 60 | φ57 | 55.7 | 80.7 | |
20 | 318 | 153 | 158 | 89 | 38 | 82.5 | 70 | 24 | φ38 | φ54 | φ34 | 70 | φ70 | 61 | 85 | |
30 | 374 | 189 | 181 | 76 | 44.5 | 115 | 90 | 32 | φ38 | φ54 | φ26 | 96 | φ70 | 53 | 91 | 51 |
50 | 416 | 210 | 196 | 92 | 48 | 143 | 100 | 32 | φ60 | φ44 | φ29 | 105 | φ85 | 65 | 102 | 56 |
Technical parameters | ||
Model: JFL-13 | Material: good quality alloy steel | |
Capacity: 0.5T-50T | Output resistance:350±3Ω | |
Output sensitivity:2.0±10%MV/V | Input resistance: 375±10Ω | |
Zero point output:±1%FS | Comprehensive error:≤±0.03% | |
Nonlinear: 0.03%FS | Repeatability: 0.03%FS | |
Excitation voltage:5-15V | Working temperature range: -20℃ to +70℃ | |
Safe overload:150% | Ultimate overload:200% | |
Cable: φ5.7x8m | Insulation resistance:≥5000MΩ(50V) | |
Cable connection: red: Power + ; black: Power - ; green: signal + ; white: signal - (can be 6 core wire) | ||
