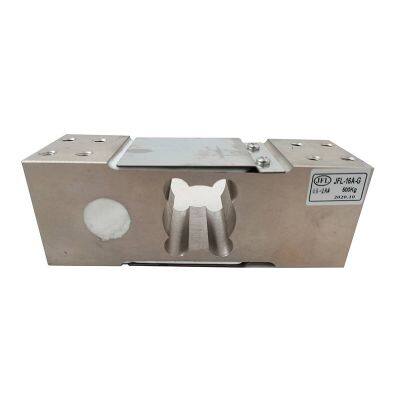

JFL-16A-G weighing sensor load cell for packaging machine
- qingdao
- T/T Western Union
- 7 days
You May Like
-
JFL-16IL alloy steel weight sensor for automatic industries
-
alloy steel weight sensor shear beam load cell for small ground scales
-
JFL-13 cantilever beam weight sensor load cell for small forklift
-
bridge type ball cup digital analog load cell weight sensor C3 accuracy
-
Ball Cup Type Weight Sensor white base analog or digital 30 ton 40 ton load cell
-
shortbridge type load cell weight sensor 30 ton capacity alloy steel
Product Details
Brand Name | JINFENGLING | Place of Origin | China | |
Model Number | JFL-16A-G | Usage | Pressure Sensor | |
Theory | Resistance Sensor | Output | Analog Sensor |
Product Description
1. brief introductions
JFL-16A-G weighing sensor is made of alloy steel with high precision. It is suitable for platform scale, packing scale, etc.
2.specification
No. | Item | Spec. |
1 | Model | JFL-16A-G |
2 | Capacity | 100kg,200kg,300kg,500kg,750kg,1.5T |
3 | Output sensitivity MV/V | 2.0±0.1 |
4 | Accuracy grade | C2 C3 |
5 | Comprehensive error | ≤±0.030 ≤±0.020 |
6 | Creep %RO/30min | 0.02 |
7 | Temperature effect on sensitivity %RO/℃ | 0.0016 |
8 | Temperature effect on zero %RO/℃ | 0.003 0.002 |
9 | Zero balance | ±0.1 |
10 | Input resistance Ω | 365±10 |
11 | Output resistance MΩ | 350±5 |
12 | Insulation resistance MΩ(50) | 5000 |
13 | Recommended excitation voltage V | 10-15 |
14 | Compensated temperature range ℃ | -10 to +40 |
15 | Working temperature range ℃ | -30 to +80 |
16 | Safe overload capacity %RO | 150 |
17 | Ultimate overload range %RO | 200 |
18 | Wire connection | Red input (+) black input (-) green output (+) white output(-) |
