Qingdao Promising CE Telescopic Loader ZL15

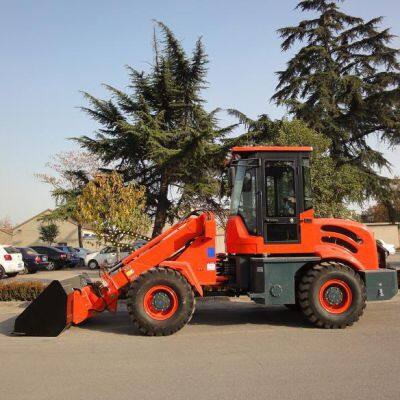

1.5T Capacity Telescopic Wheel Loader ZL15

Applications:

The telescopic wheel loader features a telescopic boom for additional height, added versatility and greater production. This wheel loader with telescopic arm offers excellent maneuverability, overall machine stability and the telescopic boom provides extra reach for stacking and dumping.

Features:

1. Telescoping boom for extra reach, stacking and dumping height.

2. Operator station offers a spacious and functional layout for operator comfort.

3. Hydraulically operated quick-hitch allows for efficient changing from one accessory to another without leaving the operator's station.

4. All wheel steer and rigid frame provide excellent maneuverability and constant payload stability even when turning.

Technical Specifications:

1. Rated Load: 1500kg

2. Total Weight: 4500kg

3. Rated Bucket Capacity: 0.6CBM

4. Bucket Width: 1600mm

5. Max. Breakout Force: 36.8KN

6. Max. Gradeability: 30Deg.

7. Max. Dumping Height (fully raised height to the pin): 4200mm

8. Raising Time: Less than 5.0s

9. Overall Dimensions (L x W x H): 4350*1790*2720mm

10. Min. Turning Radius: 4500mm

11. Engine Model: YUNNEI YN27

12. Engine Type: Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine

13. Rated Power of Engine: 42kW (57HP)

14. Rated Speed of Engine: 2400rpm

15. Engine Starting Mode: Electric

16. Hydraulic Torque Converter: ZL265 Integrated Hydraulic Torque Converter

17. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

18. Max. Speed: 25km/h

19. Wheel Tread: 1500mm

20. Wheel Base: 2400mm

21. Drive Mode: 4-wheel Drive

22. Service Brake: Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels

23. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake

24. Tyre Type Specification: Pneumatic Tire 20.5-16-14PR

25. Front Tyre Pressure: 0.40Mpa

26. Rear Tyre Pressure: 0.35Mpa

Optional Engines: EURO3 36.8kW XINCHAI A498BT1/37kW CHANGCHAI 4L68

Optional EURO5 Engine: 36.8kW YUNNEI DEF20CFF4 Engine

Optional Parts and Functions:

Canopy, Open Cabin, FOPS/ROPS, Tilting Cabin, Hydraulic Joystick, Air Conditioner, Colour Coded Electronic Gear Shift Button on Joystick, Gear Shift Lever with Electronic Control, Reversing Camera, Extra Hydraulic Lines, Rear Hydraulic System, LED Lights, and Float Function, etc.

Note:

1. The technical specifications are for standard models only.

2. Other optional accessories and requirements are available upon request.

3. All photos are for reference only. Machines shown may include optional parts.

4. All specifications and design characteristics are subject to change without prior notice.

5. For all available loader attachments, please refer to our Loader Attachments Catalogue.

6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
