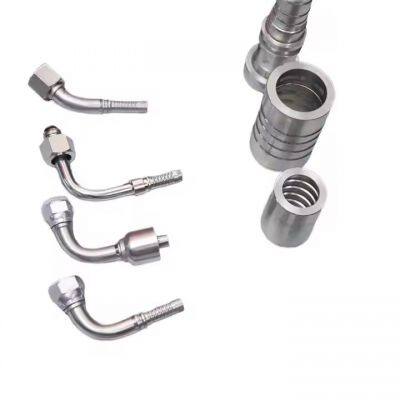

High Pressure JIC 37 One-Piece Crimp Hose Fitting for 1SN/2SN Hose Snap-Fit 45 Degree Bend

• Threaded Fittings: These fittings have threads on their ends that screw into compatible ports or connectors.

• Flared Fittings: Used with tubing, these fittings have a conical flare at the end that mates with a matching cone on the fitting body..

• Crimp Fittings: Typically used with hoses, these fittings require a crimping tool to compress a ferrule around the hose and fitting to create a secure seal.

• Push-to-Connect FittingsThese fittings allow for quick assembly without the need for tools, using features like O-rings or gripping mechanisms to seal and secure connections.

Materials:

• Hydraulic fittings are commonly made from materials such as steel, stainless steel, brass, and aluminum, chosen based on factors like strength, corrosion resistance, and compatibility with hydraulic fluids

Sealing Mechanisms:

• Depending on the type of fitting, sealing can be achieved through threads (using O-rings or thread sealants), compression (as in flare fittings), or mechanical grip (as in push-to-connect fittings).

Applications:

• Hydraulic fittings are used in a wide range of applications across industries including construction, agriculture, automotive, and manufacturing. They are essential for connecting hydraulic hoses and tubes in equipment such as loaders, excavators, presses, and hydraulic power units.

Standards:

• Fittings must often adhere to specific standards (e.g., SAE, ISO) to ensure compatibility and performance across different hydraulic systems and components.

Maintenance and Considerations:

• Proper installation and maintenance of hydraulic fittings are critical to prevent leaks and ensure system reliability. Regular inspection for wear, damage, or loosening is important.

Understanding the type of hydraulic fitting needed for a particular application involves considerations of pressure ratings, fluid compatibility, environmental conditions, and ease of assembly. Choosing the right fitting ensures efficient operation and longevity of hydraulic systems.

What Are Crimp Fittings?

Crimp fittings are permanently attached end connection for hydraulic and industrial hoses conveying fluid or gases. Crimp fittings are known as crimp-on fittings, swage, and hydraulic hose fittings and they are utilized for pressure applications where a permanent connection is required for pressure ratings from 0 to 10,000 PSI. They are attached using hydraulic crimping presses known as crimpers to compress the fitting onto the hose, leaving a permanently attached end connection.
