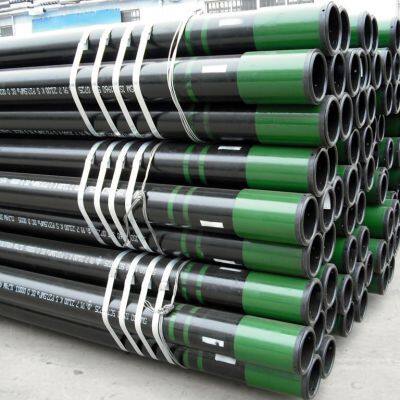

?High-Strength 7" (177.8mm) Seamless Casing API-5CT – 10.36mm Wall?

?Product Name?: API-5CT Seamless Casing and Tubing
?Steel Grade?: J55, N80, P110, H40, K55, L80, L80-3Cr/9Cr/13Cr,  M65, C90, T95, Q125
?Material?: 34CrMo4, H40, J55, K55, N80, L80, M65, C90, T95, P110, Q125
?Standard?: API 5CT/ISO 11960
?Technique?: Cold Drawn/Hot Rolled
?Application?: Oil and Gas Pipes

?Outer Diameter Ranges?:

• ?Tubing?: 48.26mm~114.3mm (1.05 inches~4 1/2 inches)

• ?Casing?: 114.3mm~762mm (4 1/2 inches~30 inches)
  ?Wall Thickness?: 2.87mm~30mm (compliant with API 5CT standards)
  ?Length Ranges?:

• ?Tubing?:

• R1: 6.10m~7.32m

• R2: 8.53m~9.75m

• R3: 11.58m~12.80m

• ?Casing?:

• R1: 4.88m~7.62m

• R2: 7.62m~10.36m

• R3: 10.36m~14.63m
  ?End-Finish Types?:

• ?Tubing?: P, I, N, U

• ?Casing?: P, S, B, L

?Product Features?:

1. ?Material Optimization?:

• Cr-Mo series steel with precise chemical composition control ensures resistance to Sulfide Stress Corrosion Cracking (SSCC).

• Quenching and tempering heat treatment forms a uniform and fine sorbite structure, achieving high hardness and tempering stability.

2. ?Heat Treatment Process?:

• Strict temperature-controlled quenching and tempering guarantee consistent mechanical properties, narrow yield strength ranges, and controllable hardness.

3. ?Sulfide Corrosion Resistance?:

• Microstructure of fully tempered martensite is suitable for H?S-containing acidic oil and gas environments.

• Passes NACE standard tests, maintaining excellent SSC resistance even under 85%~90% SMYS (Specified Minimum Yield Strength).

?Inspection Standards?:

• ?Non-destructive Testing?:

• Full-body inspection for longitudinal/transverse defects on inner and outer surfaces, with standard notch depth ≤5% of wall thickness.

• Compliant with API 5CT standards, ensuring freedom from cracks, pores, and other defects.

?Packaging & Delivery?:

• ?Packaging?: Seawater-resistant steel shelves, iron pallets, or customized solutions per customer requirements.

• ?Delivery Time?: 20–55 days (varies based on order size and process complexity).

• ?Minimum Order Quantity (MOQ)?: 20 tons.

?Application Scenarios?:

• ?Sour Oil and Gas Fields?: High-corrosion environments with H?S and CO?.

• ?Deep/Ultra-Deep Wells?: Resistant to high pressure and temperatures (up to 200°C+).

• ?Cementing and Workover?: Supports wellbore stability and isolates formation fluids.

?Certification & Surface Treatment?:

• ?Certification?: API pipe certification.

• ?Surface Treatment?: Black paint, varnish coating; cross-sectional shape: round.

• ?Origin?: China.

?Note?: This product is non-secondary processed and supports customization. Contact the supplier for technical agreements.
