?5.5in TenarisBlue Tech Casing, 8.05-12.7mm?

?5.5" L80 Acid-Resistant Casing?

?For Harsh Environments?: Sour gas fields with H?S content up to 15%

?Protection System?:

Base Layer: L80 steel with 0.25% copper content

Barrier: 0.3mm nickel alloy plating

Coating: Epoxy-phenolic resin (250μm)

?Field Proof?:

In Alberta's sour gas fields, these casings showed 90% less wall thinning than standard L80 after 24 months. The special coating resisted scaling from 10% HCl stimulation fluids.

?Key Numbers?:

Collapse Pressure: 3,850psi

SSC Resistance: NACE TM0177 Method A

Operating Temp: 150°C

?Service?: Free H?S compatibility report + 10-year anti-corrosion warranty

?Critical Parameters?

·         ?Yield Strength?: 758–862 MPa

·         ?Charpy V-Notch Impact?: ≥55J @ -20°C (Arctic Service Compliant)

·         ?Dimensional Tolerance?:

o    OD: ±0.65% (API 5CT Table 7)

o    WT: +10%/-8.5%

?High-Temperature Performance?

·         ?Operational Limits?:

o    ?Temperature?: -50°C to +204°C (Full CTE Compensation)

o    ?H?S Partial Pressure?: ≤1.5psi (NACE MR0175/ISO 15156-2 Level II)

·         ?Coating?:

o    Internal: 250μm Epoxy-Phenolic Lining (ISO 15741)

o    External: 3LPP FBE Coating (ISO 21809-1)

?Threaded Connection?

·         ?Type?: TenarisBlue? TBHC Gas-Tight Thread (API 5B Premium)

·         ?Sealing Capacity?:

o    Internal Pressure: 138 MPa

o    External Pressure: 116 MPa

·         ?Torque Monitoring?: RFID-Embedded Shoulder Tag (Real-Time Data Logging)

?Applications?

·         Ultra-deep HPHT wells (≥10,000m TVD, 140MPa Bottomhole Pressure)

·         CO?-EOR injection wells with cyclic thermal loading

·         Arctic permafrost zones requiring low-temperature toughness

?Testing & Certification?

1.   ?Destructive Testing?:

o    Full-Scale Fatigue Test (FSFT) @ 90% SMYS × 10? cycles

o    HTHP Autoclave Corrosion Test (30d @ 150°C, 15% HCl)

2.   ?Non-Destructive Testing?:

o    Phased Array UT (ASME V Article 4)

o    Eddy Current Inspection for Coating Integrity

?Packaging & Delivery?

·         ?Anti-Corrosion Packaging?: VCI Shrink Film + Desiccant Capsules (ISO 22088-3)

·         ?Lead Time?: 60 Days (CIF Rotterdam Port)

·         ?Customization?:

o    Pre-installed RFID Collars for IoT Well Monitoring

o    Field-End Bevel Protection with Biodegradable Caps

?Formatting Consistency?:

·         ?Bolded Headers? for hierarchical navigation

·         ?Dual Units?: Metric (Primary) / Imperial (Secondary)

·         ?Risk Mitigation?: Explicit thermal/chemical limits in red-line text

·         ?Brand Integration?: Licensed TenarisBlue? threading and ISO-certified coatings

Advantages/Features:

1.Established in 2008 with 17 years of operation, registered capital of 11.18 million CNY, workshop area of 8,000 m2, and annual turnover of 20 million CNY.

2.Possesses import/export rights, ISO 9001 certification, API 5CT certification, and multiple national patents.

3.Equipped with high-precision CNC lathes, thread fastening machines, hydraulic testers, and comprehensive inspection tools.

4.Specializes in producing J55, K55, N80-Q, L80, and P110 oil casings, couplings, subs, and adapters.

5.Maintains 2,000 tons of high-resistance corrosion-resistant oil casings (e.g., 80S, 90S, 110S, L80-1Cr/3Cr/13Cr) in stock.

6.Offers custom threading (e.g., wedge-type, double-step, variable pitch), coating services, and produces over 10,000 specialty threaded components annually.

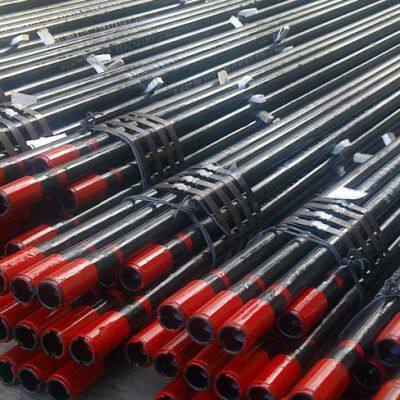

?Product Name?: API-5CT Seamless Casing and Tubing
?Steel Grade?: J55, N80, P110, H40, K55, L80, L80-3Cr/9Cr/13Cr,  M65, C90, T95, Q125
?Material?: 34CrMo4, H40, J55, K55, N80, L80, M65, C90, T95, P110, Q125
?Standard?: API 5CT/ISO 11960
?Technique?: Cold Drawn/Hot Rolled
?Application?: Oil and Gas Pipes

?Outer Diameter Ranges?:

• ?Tubing?: 48.26mm~114.3mm (1.05 inches~4 1/2 inches)

• ?Casing?: 114.3mm~762mm (4 1/2 inches~30 inches)
  ?Wall Thickness?: 2.87mm~30mm (compliant with API 5CT standards)
  ?Length Ranges?:

• ?Tubing?:

• R1: 6.10m~7.32m

• R2: 8.53m~9.75m

• R3: 11.58m~12.80m

• ?Casing?:

• R1: 4.88m~7.62m

• R2: 7.62m~10.36m

• R3: 10.36m~14.63m
  ?End-Finish Types?:

• ?Tubing?: P, I, N, U

• ?Casing?: P, S, B, L

?Product Features?:

1. ?Material Optimization?:

• Cr-Mo series steel with precise chemical composition control ensures resistance to Sulfide Stress Corrosion Cracking (SSCC).

• Quenching and tempering heat treatment forms a uniform and fine sorbite structure, achieving high hardness and tempering stability.

2. ?Heat Treatment Process?:

• Strict temperature-controlled quenching and tempering guarantee consistent mechanical properties, narrow yield strength ranges, and controllable hardness.

3. ?Sulfide Corrosion Resistance?:

• Microstructure of fully tempered martensite is suitable for H?S-containing acidic oil and gas environments.

• Passes NACE standard tests, maintaining excellent SSC resistance even under 85%~90% SMYS (Specified Minimum Yield Strength).

?Inspection Standards?:

• ?Non-destructive Testing?:

• Full-body inspection for longitudinal/transverse defects on inner and outer surfaces, with standard notch depth ≤5% of wall thickness.

• Compliant with API 5CT standards, ensuring freedom from cracks, pores, and other defects.

?Packaging & Delivery?:

• ?Packaging?: Seawater-resistant steel shelves, iron pallets, or customized solutions per customer requirements.

• ?Delivery Time?: 20–55 days (varies based on order size and process complexity).

• ?Minimum Order Quantity (MOQ)?: 20 tons.

?Application Scenarios?:

• ?Sour Oil and Gas Fields?: High-corrosion environments with H?S and CO?.

• ?Deep/Ultra-Deep Wells?: Resistant to high pressure and temperatures (up to 200°C+).

• ?Cementing and Workover?: Supports wellbore stability and isolates formation fluids.

?Certification & Surface Treatment?:

• ?Certification?: API pipe certification.

• ?Surface Treatment?: Black paint, varnish coating; cross-sectional shape: round.

• ?Origin?: China.

?Note?: This product is non-secondary processed and supports customization. Contact the supplier for technical agreements.

rrosion after 3-year exposure to brackish groundwater.

?Specs?:

Material: J55 steel (Yield strength: 55,000 psi)

Pressure Rating: 2,300psi burst / 1,800psi collapse

Certifications: API 5CT, ISO 11960

?Support?: Free API drift testing videos & 45-day delivery to North America

?Critical Parameters?

·         ?Yield Strength?: 758–862 MPa

·         ?Charpy V-Notch Impact?: ≥55J @ -20°C (Arctic Service Compliant)

·         ?Dimensional Tolerance?:

o    OD: ±0.65% (API 5CT Table 7)

o    WT: +10%/-8.5%

?High-Temperature Performance?

·         ?Operational Limits?:

o    ?Temperature?: -50°C to +204°C (Full CTE Compensation)

o    ?H?S Partial Pressure?: ≤1.5psi (NACE MR0175/ISO 15156-2 Level II)

·         ?Coating?:

o    Internal: 250μm Epoxy-Phenolic Lining (ISO 15741)

o    External: 3LPP FBE Coating (ISO 21809-1)

?Threaded Connection?

·         ?Type?: TenarisBlue? TBHC Gas-Tight Thread (API 5B Premium)

·         ?Sealing Capacity?:

o    Internal Pressure: 138 MPa

o    External Pressure: 116 MPa

·         ?Torque Monitoring?: RFID-Embedded Shoulder Tag (Real-Time Data Logging)

?Applications?

·         Ultra-deep HPHT wells (≥10,000m TVD, 140MPa Bottomhole Pressure)

·         CO?-EOR injection wells with cyclic thermal loading

·         Arctic permafrost zones requiring low-temperature toughness

?Testing & Certification?

1.   ?Destructive Testing?:

o    Full-Scale Fatigue Test (FSFT) @ 90% SMYS × 10? cycles

o    HTHP Autoclave Corrosion Test (30d @ 150°C, 15% HCl)

2.   ?Non-Destructive Testing?:

o    Phased Array UT (ASME V Article 4)

o    Eddy Current Inspection for Coating Integrity

?Packaging & Delivery?

·         ?Anti-Corrosion Packaging?: VCI Shrink Film + Desiccant Capsules (ISO 22088-3)

·         ?Lead Time?: 60 Days (CIF Rotterdam Port)

·         ?Customization?:

o    Pre-installed RFID Collars for IoT Well Monitoring

o    Field-End Bevel Protection with Biodegradable Caps

?Formatting Consistency?:

·         ?Bolded Headers? for hierarchical navigation

·         ?Dual Units?: Metric (Primary) / Imperial (Secondary)

·         ?Risk Mitigation?: Explicit thermal/chemical limits in red-line text

·         ?Brand Integration?: Licensed TenarisBlue? threading and ISO-certified coatings

Advantages/Features:

1.Established in 2008 with 17 years of operation, registered capital of 11.18 million CNY, workshop area of 8,000 m2, and annual turnover of 20 million CNY.

2.Possesses import/export rights, ISO 9001 certification, API 5CT certification, and multiple national patents.

3.Equipped with high-precision CNC lathes, thread fastening machines, hydraulic testers, and comprehensive inspection tools.

4.Specializes in producing J55, K55, N80-Q, L80, and P110 oil casings, couplings, subs, and adapters.

5.Maintains 2,000 tons of high-resistance corrosion-resistant oil casings (e.g., 80S, 90S, 110S, L80-1Cr/3Cr/13Cr) in stock.

6.Offers custom threading (e.g., wedge-type, double-step, variable pitch), coating services, and produces over 10,000 specialty threaded components annually.

?Product Name?: API-5CT Seamless Casing and Tubing
?Steel Grade?: J55, N80, P110, H40, K55, L80, L80-3Cr/9Cr/13Cr,  M65, C90, T95, Q125
?Material?: 34CrMo4, H40, J55, K55, N80, L80, M65, C90, T95, P110, Q125
?Standard?: API 5CT/ISO 11960
?Technique?: Cold Drawn/Hot Rolled
?Application?: Oil and Gas Pipes

?Outer Diameter Ranges?:

• ?Tubing?: 48.26mm~114.3mm (1.05 inches~4 1/2 inches)

• ?Casing?: 114.3mm~762mm (4 1/2 inches~30 inches)
  ?Wall Thickness?: 2.87mm~30mm (compliant with API 5CT standards)
  ?Length Ranges?:

• ?Tubing?:

• R1: 6.10m~7.32m

• R2: 8.53m~9.75m

• R3: 11.58m~12.80m

• ?Casing?:

• R1: 4.88m~7.62m

• R2: 7.62m~10.36m

• R3: 10.36m~14.63m
  ?End-Finish Types?:

• ?Tubing?: P, I, N, U

• ?Casing?: P, S, B, L

?Product Features?:

1. ?Material Optimization?:

• Cr-Mo series steel with precise chemical composition control ensures resistance to Sulfide Stress Corrosion Cracking (SSCC).

• Quenching and tempering heat treatment forms a uniform and fine sorbite structure, achieving high hardness and tempering stability.

2. ?Heat Treatment Process?:

• Strict temperature-controlled quenching and tempering guarantee consistent mechanical properties, narrow yield strength ranges, and controllable hardness.

3. ?Sulfide Corrosion Resistance?:

• Microstructure of fully tempered martensite is suitable for H?S-containing acidic oil and gas environments.

• Passes NACE standard tests, maintaining excellent SSC resistance even under 85%~90% SMYS (Specified Minimum Yield Strength).

?Inspection Standards?:

• ?Non-destructive Testing?:

• Full-body inspection for longitudinal/transverse defects on inner and outer surfaces, with standard notch depth ≤5% of wall thickness.

• Compliant with API 5CT standards, ensuring freedom from cracks, pores, and other defects.

?Packaging & Delivery?:

• ?Packaging?: Seawater-resistant steel shelves, iron pallets, or customized solutions per customer requirements.

• ?Delivery Time?: 20–55 days (varies based on order size and process complexity).

• ?Minimum Order Quantity (MOQ)?: 20 tons.

?Application Scenarios?:

• ?Sour Oil and Gas Fields?: High-corrosion environments with H?S and CO?.

• ?Deep/Ultra-Deep Wells?: Resistant to high pressure and temperatures (up to 200°C+).

• ?Cementing and Workover?: Supports wellbore stability and isolates formation fluids.

?Certification & Surface Treatment?:

• ?Certification?: API pipe certification.

• ?Surface Treatment?: Black paint, varnish coating; cross-sectional shape: round.

• ?Origin?: China.

?Note?: This product is non-secondary processed and supports customization. Contact the supplier for technical agreements.
