Home > Products > Outdoor optical cable > Steel-polyethylene bonded sheathed cable for outdoor communication Unitube Light-armored Cable GYXTW
Steel-polyethylene bonded sheathed cable for outdoor communication Unitube Light-armored Cable GYXTW
USD $0.3 - $1.0
/ Meter
1000 Meters(Min.Order)
- 15000 Kilometer / Kilometers per Month
- shenzhen
- T/T
- 7 days
You May Like
-
Stranded Loose Tube Armored Cable Duct 36 Core GYTA53 Single Mode Fiber Optic Cable OS2 G652D Outdoor cable
-
Direct Factory Price OM1 OM2 OM3 OM4 OM5 12cores MPO-MTP Male/Female Trunk Cable
-
Direct Factory For 5.0mm/7.0mm Singlemode/ Multimode Armored/Non-armored Duplex LC-ST FTTA jumper
-
KFRP messenger FTTH Fiber Optic Drop Cable
-
Fibra Optica 12 24 48 hilos ADSS Span 200 adss 2 4 core 6 24 48 96 hilos 4km Single/Double Jacket ADSS/ASU Fibre Optic Cable
-
Fiber Optic for Drone 1/2/3/5/10/15/20/25/30km FPV Optic Fiber Fpv Fiber Optic Coils Tube Set for FPV Drone
Product Details
| Brand Name | OEM | Place of Origin | China | |
| Model Number | FPV Bare Fiber | Application | Outdoor Aerial | |
| Jacket | Other | Conductor Material | Other | |
| Number of Conductors | ≥10 | Insulation Material | PE |
Product Description
Specification
Steel-polyethylene bonded sheathed cable for outdoor communication Unitube Light-armored Cable GYXTW

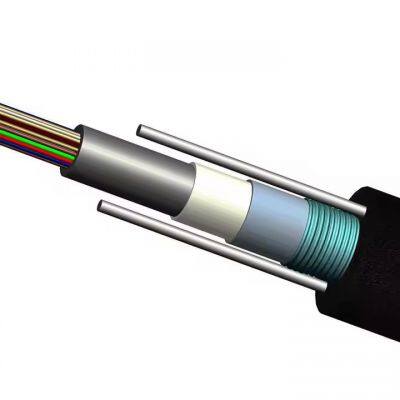

The ?bers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tube are ?lled with a water-resistant ?lling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two side of the steel tape. Theparallel steel wires are placed at the two sides tape.
The cable is completed with a polyethylene(PE) sheath.
Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube ?lling compound ensure a critical protection of ?ber.
Crush resistance and ?exibility.
PSP enhancing moisture-proof.
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Long delivery length
Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube ?lling compound ensure a critical protection of ?ber.
Crush resistance and ?exibility.
PSP enhancing moisture-proof.
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Long delivery length
Use scenarios
