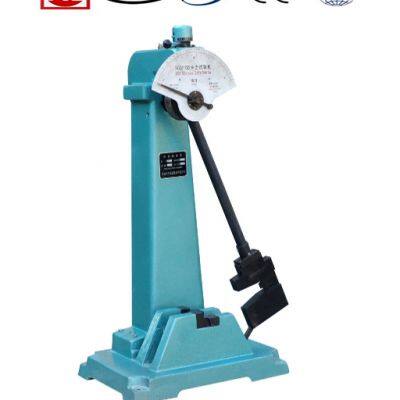

Model JB Series Pendulum Impact Testing Machine
- 100 Set / Sets per Month
You May Like
-
Model JBS Series Digital Display Pendulum Impact Tester
-
Model JBW Series Computer Screen Display Pendulum Impact Tester
-
Model JBDW Series Computer Screen Display Pendulum Impact Testing Machine with super low temperature chamber
-
Model JBDW-C Series Automatic Computer Screen Display Pendulum Impact Testing Machine with super low temperature chamber
-
Model JBW-N Computer Screen Display Charpy and Izod Pendulum Impact Tester
-
Model WDC-80TD Low temperature Chamber for DWTT Impact Specimen
Product Description
Application:
This kind of machine is used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically. It is designed according to national standard GB/T3808 “Charpy Impact Test Method for Metals”
It is also accordance with international standard ISO148, EN10045 and ASTM E23. It has the features of easy operation, high efficiency, safe and reliable. The machine is especially suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields.
Specifications:
Specifications | JB-300 | JB-300B | JB-500B | JB-750C |
Impact energy (J) | 150, 300 | 150, 300 | 300, 500 | 300, 450, 600, 750 |
Impact velocity (m/s) | 5 | 5.2 | 5.4 | 5.24 |
Raised angle (o) | 135 | 150 | ||
Standard span (mm) | 40 | 40 | ||
Round angle of jaws (mm) | R1-1.5 | R1-1.5 | ||
Round angle of striking edge (mm) | R2-2.5 | R2-2.5 | ||
Size of specimen (mm) | 10 x 10 x 55 | 10 x 10 x 55 or special sample | ||
Power supply | Manual, no power | 3phs, 380V, 50Hz or 220V,60Hz | ||
Dimensions (mm) | 1000 x 630 x 1520 | 2124 x 600 x 1340 | 2144 x 736 x 1390 | 2450 x 1200 x 2455 |
Net Weight (kg) | 320 | 450 | 650 | 1800 |
