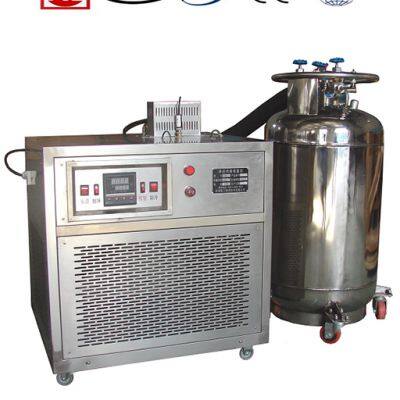

Model WDC-196T Low temperature Chamber for Impact Specimen
You May Like
Product Description
Applications:
Model WDC-196T low chamber is newly designed according to Charpy notch Impact Test Method for Metal Material, and adopts liquid Nitrogen cooling technology. It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance. Digital display, automatic control temperature, and it is the ideal equipment for cooling and keeping temperature to impact specimen.
Main Specifications
Temperature control rangeQ?/span>30?/span>～－196?/span>
Constant temperature accuracy: ≤?/span>2ºC
Temperature dropping speed: 8?/span>/min
Dimension: 700×600×800mm
Effective working space: 220 ×170 ×120mm
Specimen quantity more than 60 pcs
Specimen dimensionQ?/span>10x10x55mm
Cooling media: Liquid Nitrogen
Power supply: 220V ~ 240VQ?/span>50HzQ?/span>2.5kW
