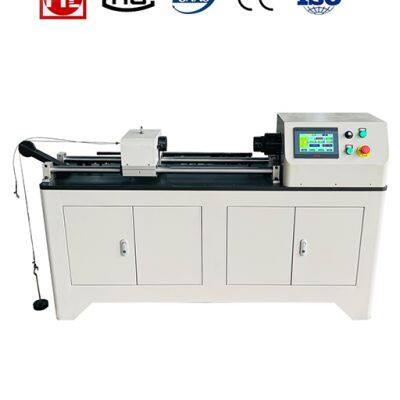

EZ-10 Touch Screen Digital Display Wire Torsion Testing Machine
- 100 Set / Sets per Month
You May Like
-
Model NDW Series Computer Control Torsion Testing Machine
-
Model JB Series Pendulum Impact Testing Machine
-
Model JBS Series Digital Display Pendulum Impact Tester
-
Model JBW Series Computer Screen Display Pendulum Impact Tester
-
Model JBDW Series Computer Screen Display Pendulum Impact Testing Machine with super low temperature chamber
-
Model JBDW-C Series Automatic Computer Screen Display Pendulum Impact Testing Machine with super low temperature chamber
Product Description
Application and features:
Model EZ-10 is mainly used to test the plasticity of 1-10mm steel wires under torsion condition. Surface flaws of steel wires may be shown out during the testing process. The testing machine is loaded by an electric motor, with a rotation sensor detecting the number of twisting turns, and a large color LCD touch screen displaying the detection results. It mainly suitable for testing the torsional properties of materials in mechanical laboratories of relevant scientific research departments, various colleges and universities, and industrial and mining enterprises; It is very suitable for online testing by wire production units and incoming inspection by wire usage units; Widely used in production and usage departments such as steel mills, high-speed lines, prestressed steel wire factories, quality supervision, research institutes, highway transportation, and construction industries.
Specifications:
Clamping range(mm) | 0.1-10.0 |
Maximum spacing between two heads(mm) | 700 |
Unidirectional twisting speed (revolutions per minute) | 15、20、30 |
Bidirectional twisting speed (revolutions per minute) | 30 |
Maximum recorded revolutions (revolutions) | 0-99999 |
Revolution resolution (revolutions) | 0.1 |
Coaxiality of two collets (mm) | ＜0.4 |
Parallelism of moving guide rails (mm) | ＜0.2 |
Jaw hardness (HRC) | 55～65 |
Test machine size (mm) | 1750×400×1000 |
Weight of testing machine (kg) | 260 |
Power supply | AC 220V±10% 50Hz |
