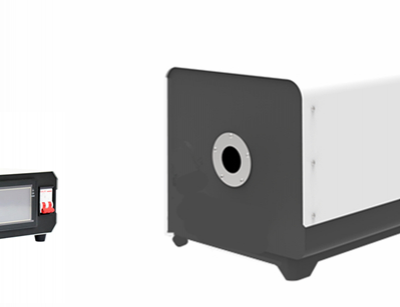

DY-FHD1200 ignition point measuring device

【 Product Introduction 】

DY-FHD1200 ignition point measuring device can realize constant temperature control of the equipment, the equipment is composed of constant temperature device and intelligent temperature control device, and has temperature control process, current and voltage change display instrument. Widely used in petroleum, chemical, electric power, universities, scientific research and other departments.

【 Product Features 】

1, touch screen design, simple operation

2, all Chinese/English interface display (optional)

3, good temperature control stability, high equipment accuracy, good repeatability.

4, the instrument structure design is reasonable, beautiful shape, environmental protection.

【 Technical index 】

Model number

DY-FHD1200

Temperature range

300 ℃ to 1200 ℃

Resolution

0.1 ℃

Display mode

Color touch screen operation

Detection chamber

Φ20mm explosion-proof tube, customizable

Furnace length

600mm

Temperature control stability

Furnace temperature change ≤1℃/min(under stable state)

Supply voltage

220V  AC  50HZ  10A

Recommended equipment

Thermocouple standard (second class standard platinum rhodium 10-platinum thermocouple)

weight

25KG

Overall dimension

600 (L) ×320 (W) ×320 (H)

Custom micro cameras not included

Use environment

Temperature 22 ° C ±3 ° C Humidity <80%RH

power

≤3000W
