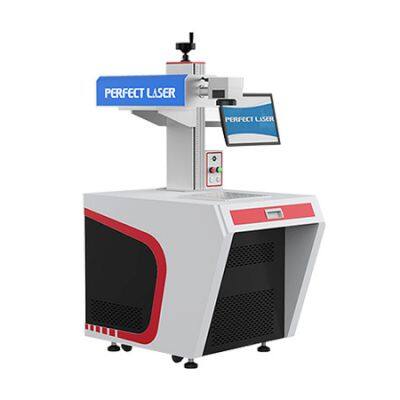

3D UV Laser Engraver Machine Price For Ceramics Plastic Marking
- 5000 Set / Sets per Month
- T/T L/C PayPal
You May Like
-
Perfect Laser- Plastic laser marking pvc 5w UV laser marker for led lamp
-
CCD Camera Auto-Positioning Fiber Laser Marker Machine for chips / circuit board / small parts
-
Big Size Seamless Splicing Dynamic Large Format 3D Laser Engraving Machine
-
20W 30W 50W 100W Industry Fully Automatic High-speed Online Flying Optical Fiber Laser Marking Machine
-
5W Portable Handheld Small Laser Marking and Engraving Machine for Wood/Bamboo/Acrylic/Leather/Paper
-
2W Mini Multifunctional Automatic Portable Metal Laser Engraving Machine
Product Details
Brand Name | Perfect Laser | Place of Origin | China | |
Model Number | PE-UV-3D | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas | Condition | New | |
Power(W) | 3W | Graphic Format Supported | DXF, PLT | |
Control Software | EZCAD | Cooling Mode | Air Cooling | |
CNC or Not | Yes | Laser Type | Fiber Laser |
Product Description
The UV laser engraver adopts imported core components and is equipped with fast-speed and high-precision 3D galvanometer laser scannning system.
Combined with the 3D special software and control system independently developed by Perfect Laser, it can perfectly realize the fine marking for any curved surface workpiece; The UV laser marking plastic can also be used for deep engraving.
The focus tracking in real time makes the processing efficiency and quality better than the traditional 2D marking machine. Realize the full realization of 3D marking function, leading laser processing into a new era.
The three-dimensional UV laser marking machine price adopts imported high-quality ultraviolet laser source. The 355nm uv light focuses on the spot, and the processing heat affected zone is very small. It is suitable for processing materials with large thermal radiation response.
The UV laser engraver is mainly used for superfine marking and special material marking, carving and cutting. Widely used in the high-end market of ultra-fine laser processing.
1. The UV laser marking plastic has stable performance, small volume, low power consumption, high electro-optical conversion efficiency and long service life;
2. The laser spot is very small, and the light mode is good, which is suitable for high marking demands such as fine graphics;
3. The laser beam quality of the UV laser marking machine price is good, the output laser stability is high, the marking effect is easy to debug;
4. The UV laser engraver has high average power and high repetition frequency, marking speed is faster;
5. The UV laser marking plastic adopts marble working platform, it has good earthquake resistance and stress resistance, good flatness and high stability;
6. This UV laser marking machine price subverts the traditional 2D marking mode, achieving a variety of 3D marking modes such as bevel, cylinder, cone, spherical, and stretched surface;
7. The UV laser engraver can achieve super large center angle marking, on the cylinder can hit the 117 ° center angle position..
8. On the marking workpiece, the target marking pattern is perfectly presented to avoid deformation, such as elongation and distort. Let the marked pattern be same to the original form.
9. Let the marking boundary no longer be "ignored"! - The marking effect of each position on the workpiece is uniform and consistent;
10. 355nm output wavelength reduces the thermal impact on the workpiece, the heat affected area is very small, there is no thermal effect, the material is not deformed and not burnt;
11. The UV laser marking machine price adopts the upper and lower sliding door closed processing in the design, and the UV laser engraver uses the high-quality special filter to protect the plexiglass to make a special observation window to create the ultimate protective performance of the whole machine;
12. The UV laser marking machine price can be equipped with optional auto lifting, rotating and other functions.
Model | PE-UV-3D |
Product name | Uv laser marking machine |
Laser wavelength | 335nm |
Minimum line width | 0.015mm |
Minimum character | 0.2mm |
Laser output power | 10w |
Spot quality(㎡) | <1.2 |
Spot diameter | 1.0mm(+/-0.1) |
Pulse repetition frequency | 10-120khz |
Pulse width | <25ns@30khz |
Power demand | 100-240v single phase,50-60hz |
