Home > Products > laser marker > with Rotary 30w desktop Jewelry metal steel fiber laser engraver

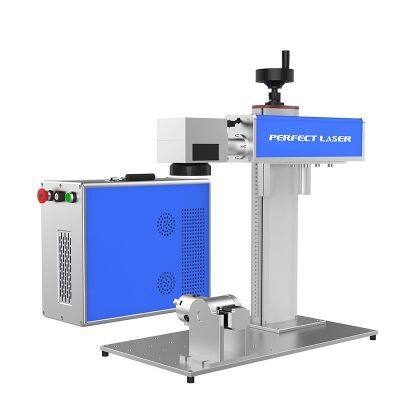

with Rotary 30w desktop Jewelry metal steel fiber laser engraver
- SHANGHAI
- T/T
- 10 days
You May Like
-
with safety closed 30w desktop Jewelry metal steel fiber laser engraver
-
3W Desktop mini UV laser engraver for glass plastic wood metal
-
5W Water cooling UV laser engraver for glass plastic wood metal
-
Safety Closed 5W Water cooling UV laser engraver for glass plastic wood metal
-
10W Water cooling UV laser engraver with CCD camera auto positioning and conveyor
-
CCD camera auto positioning 30w Floor type Metal fiber laser engraver with computer and table
Product Details
Brand Name | Perfect Laser | Place of Origin | China | |
Model Number | PEDB-400B-1 | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas | Condition | New | |
Power(W) | 30w | Graphic Format Supported | AI, DXF, PLT | |
Control Software | EZCAD | Cooling Mode | Air Cooling | |
CNC or Not | Yes | Laser Type | Fiber Laser |
Product Description
Features:
1. Laser ring engraving machine can work continuously for 24 hours without consumables. More than 10,000 hours service time can meet long-term and stable work requirements. The laser ring engraving machine `s laser beam is stable.
2. Gold laser marking machine equipped with special rotary system to support mark on ring. You can finish marking inside or outside to keep your perpetual signs.
3. Laser ring engraving machine powerful software compatible with Coreldraw, AutoCAD, Photoshop and other software files which can support PLT, PCX, DXF, BMP, etc., can use SHX, TTF font directly;
4. The gold laser marking machine structure has been greatly improved: the optical system adopts a fully sealed structure with a red light preview function, a more beautiful appearance and a more convenient operation.
5. The photoelectric conversion efficiency is high, the beam quality is good, the lines are fine, the spot is small, and the laser has long service life, the laser ring engraving is specially suitable for jewery marking.
6. The laser ring engraving is equipped with the latest precision constant temperature chiller, low operating noise, high temperature adjustment accuracy, and provides a reliable guarantee for the continuous operation of the machine for a long time.
7. Jewellery laser marking machine high-speed scanning galvanometer, suitable for industrial mass production. No mechanical stress, small thermal stress, no damage to the processed material, no deformation. To maintain your best jewery effect.
Technical Data
Model No | PEDB-400B-1 |
Type | Desktop with rotary |
Computer | Not includes PC |
Laser Source | |
IPG Series | Pulsed, High Energy Ytterbium Fiber Lasers |
Mode of operation | Pulsed |
Polarization | random |
Nominal average output power | 30W |
Central emission wavelength | 1064 nm ,Q-switched operation Output power adjustment range 10%-100% |
Emission Bandwidth | <10 nm |
(FWHM) | |
Long-term average power instability | <5% |
Pulse width(FWHM) | 100 ns |
Laser switching ON time | 180 usec |
Laser switching OFF time | 180 usec |
Pulse Repetition Rate* kHz | 20-80 kHz |
Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
Typical beam quality, M2 | <1.8 |
Output fiber delivery length | 3m |
Operating voltage | 220V |
Max. Power consumption | 600W |
Net Dimensions | 80*38*72cm |
Net Weight | 63 kgs |
Gross Weight | 80 kgs |
Laser system | |
Scanning Speed | 0-10000mm/s |
Marking Speed | 0-7000mm/s |
Marking size | 110mmx110mm (F-theta 160) |
Spot size | <=40 micron (F-theta 160) |
Cooling unit | Air cooled |
Red point laser | 650nm, visible red light for marking guide |
Continuous working time | >=16h |
Humidity | 45~85% (no condensation) |
Operating temperature | 0~40 C |
