Home > Products > Gate Valve > DIN3352 PN10/16Non-Rising Stem Resilient Seated F4 Gate Valve

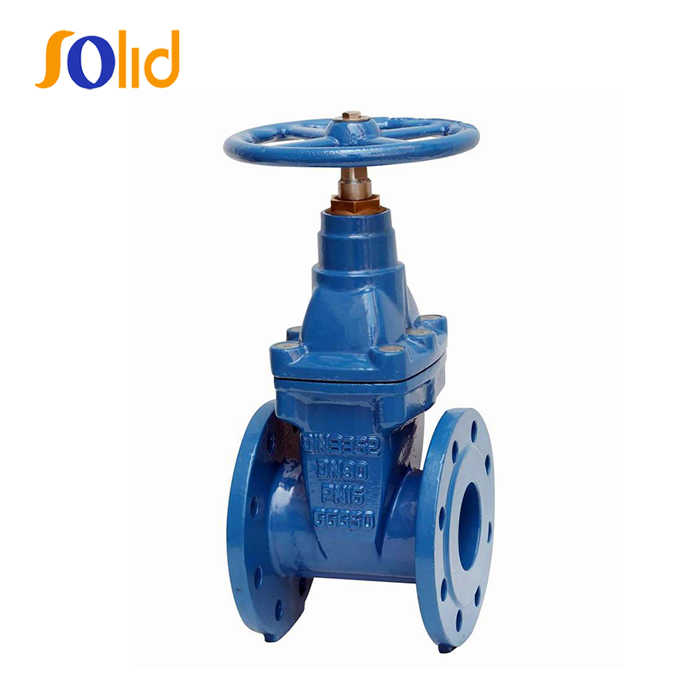

DIN3352 PN10/16Non-Rising Stem Resilient Seated F4 Gate Valve
Negotiable
/ Piece
50 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- TIANJIN,QINGDAO,SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
DIN 3352 F5 /EN 1171 Flanged Resilient Gate Valve With Non Rising Stem
-
DIN3352/EN 1171 DN350-DN800 Big Size Resilient Seated Gate Valve
-
Awwa C509/515 Ductile Cast Iron Mechanical Connection Resilient Gate Valve
-
Awwa C515 Ductile Iron OS&Y Type Rising Stem Resilient Seat Flanged End Gate Valve
-
Awwa Inside Screw Rising Long Stem Flanged Gate Valve
-
Pn10/16 BS5163 Dinf4/F5 Nrs Resilient Seated Gate Valve with Flanged Ends
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description
Features:
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside, blue RAL 5017 ≥ 250 Micron thick
Working pressure from -1 to +16 Bar and working temperature from -10 to +80 oC
Technical Specification:
Valve design according to EN 1171,DIN3352,EN 1074-1 and 2
Face to face dimensions according to EN 558-1 Series 14/15, DIN3202 F4/F5
Standard flange drilling to EN 1092-2,ISO 7005-2
Hydraulic test according to EN 12266,ISO5208
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside, blue RAL 5017 ≥ 250 Micron thick
Working pressure from -1 to +16 Bar and working temperature from -10 to +80 oC
Technical Specification:
Valve design according to EN 1171,DIN3352,EN 1074-1 and 2
Face to face dimensions according to EN 558-1 Series 14/15, DIN3202 F4/F5
Standard flange drilling to EN 1092-2,ISO 7005-2
Hydraulic test according to EN 12266,ISO5208
1 | Body | Cast iron/Ductile iron |
2 | Bonnet | Cast iron/Ductile iron |
3 | Wedge | Ductile iron with NBR/EPDM |
4 | Stem | 2Cr13 |
Face to face is according to DIN3202-F4 |
Flange drilled is according to DIN2532/2533 |
