Home > Products > Motherboard Test Fixture > XINZHIZAO XZZ iPhone 16 series 4-in-1 motherboard layered test fixture for iPhone 16/16 Plus/16 Pro/16 Pro Max
XINZHIZAO XZZ iPhone 16 series 4-in-1 motherboard layered test fixture for iPhone 16/16 Plus/16 Pro/16 Pro Max
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
-
YCS-T05 3D Screwdriver Set 5-In-1 Magnetic Bits Disassembly Tool
-
RELIFE RL-M6T Pro B11 6.5X-65X Trinocular Stereo Microscope
-
MaAnt UV-01 MY-01 UV Curing Lamp Cooling Fan Fast Heat Dissipation
-
MECHANIC S2 Fixed Screen Tape Phone LCD Back Cover Assembly Tool
-
MIJING GR-10 OCA Glue Remover Roll King Degumming with Dust Lamp
-
E288-02 small handheld grinding machine mini motherboard CPU IC polishing pen engraving tool
Product Details
| Brand Name | XINZHIZAO | Place of Origin | China | |
| Model Number | XZZ iPhone 16 series 4-in-1 |
Product Description
XINZHIZAO XZZ iPhone 16 series 4-in-1 motherboard layered test fixture for iPhone 16/16 Plus/16 Pro/16 Pro Max. XZZ 4-in-1 motherboard delamination test frame for iPhone 16-16 Pro Max motherboard double layer function detection and repair.
Features:
1. XZZ iPhone 16 series layered test stand 4in1 is compatible with four models of iPhone 16/16Plus/16Pro/16 Pro Max.
2. The layered test stand has 6 features, using high-density metal, four-in-one, unobstructed, integrated, ergonomic design, and can be accurately positioned.
3. It solves the problem of repeated lamination and delamination during motherboard repair. The frame is equipped with imported pure copper gold-plated spring probes to enhance conductivity and stability, suitable for precise testing before installation.
4. The spring rebounds quickly, the feedback is timely, and the motherboard does not warp. The non-slip foot pad k can prevent sliding due to external forces and other problems during the test.
5. Use of high temperature resistant and corrosion-resistant new materials can not only reduce the return rate, but also improve the repair efficiency.
6. The functional board design is compatible with the test without the middle frame. Avoid the failure of the middle frame during the repair process.
Product Information:

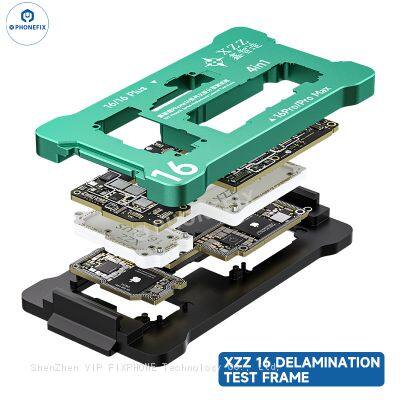

Name: XZZ iPhone 16 delamination test frame.
Probe Type: Custom gold-plated spring probes.
Product Size: 128X68X18mm.
Package Size: 146X95X23mm.
N.W: 189G.
G.W: 249G.
Support Model: iPhone 16/ 16Plus/16Pro/16 Pro Max.
