Home > Products > three-in-one feeder machine > Precision Type Decoiler With Straightener Two-in-one

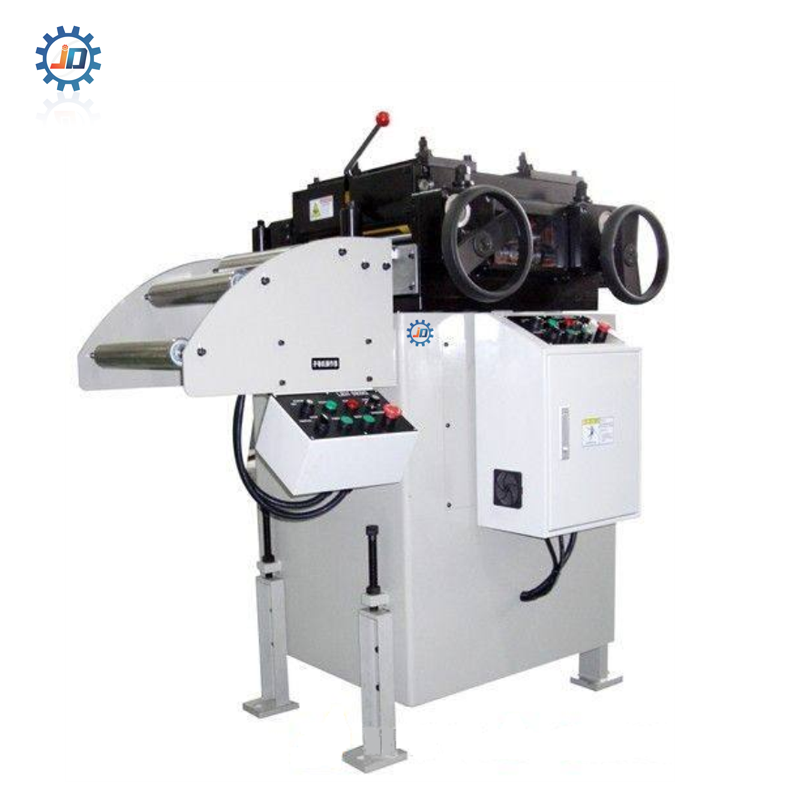

Precision Type Decoiler With Straightener Two-in-one
US$ 2000 - 3000
/ Set
1 Set(Min. Order)
- shenzhen
- T/T PayPal
- 15 days
You May Like
-
3-in-1 Mid-thickness Straightener Feeder Equipment Three-in-one Straightener Feeder Price
-
Punch Steel Bar Three-in-one Uncoiler Straightener Feeder Machine
-
Punching Steel Bar Decoiler and Straightening Two-in-one Equipment Two-in-one Decoiler Straightener
-
Standard Type Decoiler With Straightener Two-in-one High Precision Variable Straightener
-
Precision Type Decoiler With Straightener Two-in-one Decoiler and Straightener Two-in-one
-
NCJF High Precision Small Type Servo Feeder Machine
Product Details
| Brand Name | Jingda | Place of Origin | China | |
| Model Number | NCBF-700 | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1year | |
| Weight | 3000kg | Dimension(L*W*H) | 3.5*3.5*3.5M | |
| Voltage | AC 3 Phase 220V/380V/50HZ | Condition | New | |
| Power(W) | 3.5kw | CNC or Not | Normal | |
| Power Source | Pneumatic |
Product Description
Three-in-one feeder machine
| Product Description | |||||||
| Type | NCBF-200 | NCBF-300 | NCBF-400 | NCBF-500 | NCBF-600 | NCBF-700 | |
| Width of Material (mm) | 200 | 300 | 400 | 500 | 600 | 700 | |
| Thickness of Material (mm) | 0.2-2.0mm | ||||||
| Standard Thickness (mm) Max. Feeding Thickness And Width | 0.2-1.5mm | 200 | 300 | 400 | 500 | 600 | 700 |
| 2.0mm | 180 | 280 | 300 | 350 | 400 | 450 | |
| Feeding Length(mm) | 9999mm | ||||||
| The Fastest Feeding Speed M/Min | 20M/Min | ||||||
| Use | Sheet | ||||||
| Usage | Metal Sheet Strip Coil | ||||||
| Function | Feed Metal Sheet | ||||||
| If oem/odm | YES | ||||||
| Power Supply (V) | AC 3 Phase 220V/380V/50HZ | ||||||
| Features of this model: 1. One-touch operation, touch screen control, simple and convenient 2. Screw sliding, servo control, precise and stable 3. Multi-scheme design, automatic diagnosis, configuration memory function, safe and convenient 4.Can feed different length at the time, easy operation, safe and high stability. 5.Suitable for metal parts, electron, electrical appliance, toy and auto parts continuous pressing production, straightening and feeding. 6.High precision:±0.02mm 7.Suitable for material thickness :0.15-2.0mm | |||||||
| NCBF servo feeder 1. Maximum material width: 700m 2. Relaxation mode: pneumatic relaxation 3. Suitable for material thickness: 1.5mm-6.0mm 4. Servo motor: servo motor 2.3kw 15N 5. Maximum feeding length (MAX): 9999.99mm 6. Human-machine interface (touch screen): 7-inch touch screen 7. 3 groups of different segments can be input. 8. Maximum feeding speed (MAX): 20M/Min Feeding precision: ±0.02mm | |||||||
| Features of Thick Plate Servo Feeder 1. The thick plate servo feeder system controls the feeding length, the feeding length is not limited, and the feeding accuracy is higher; 2. Mechanical relaxation, simpler adjustment, sensitive response, high accuracy, and good durability; 3. Perfect combination with mechanical relaxation, high-speed stamping can be achieved; 4. Pneumatic relaxation device can be installed to meet the needs of different occasions. 5. Domestic servo system can be selected, which is more economical; 6. Standard color LCD touch screen Chinese human-machine interface, more humane operation | |||||||
| Hydraulic Decoiler → Precision Straightener → High Speed Gantry Perforation Machine → Notching And Shearing Press →High Precision Straightener→ Tiles Flipping Machine→Bending Forming Machine | |||||||
