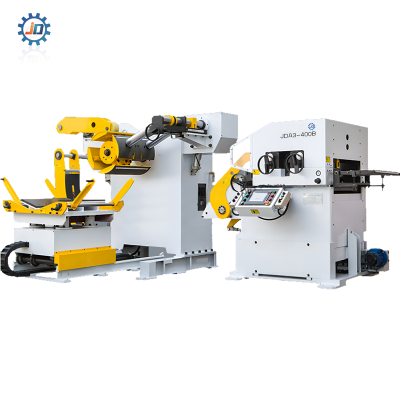

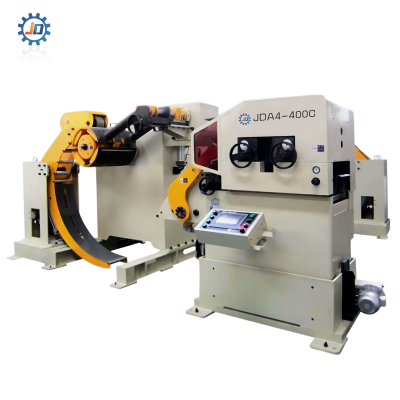

Automatic High-precision Three-in-one High Thickness Straightener Feeder Manufacturer

FOB Price

US$ 2000 - 30000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Punch steel Bar three-in-one uncoiler straightener feeder machine	Place of Origin	China
Model Number	JDA4-600	Certification	ISO 9001
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	1 year
Weight	4800KG	Dimension(LWH)	3.82.151.8M
Voltage	220V&380V	Condition	New
Power(W)	7.5KW	CNC or Not	Normal
Power Source	Mechanical

Model	JDA4-600	JDA4-800	JDA4-1000	JDA4-1300
Width of Material (mm)	70-600	70-800	70-1000	70-1300
Thickness of Material (mm)	0.6-6.0mm
Max. Coil Weight (Kg)	5000	5000	7000	10000
Coil I.D.(mm)	508	508	508	508
Coil O.D.(mm)	1400	1400	1400	1400
Max. Speed (m/min)	16~24m/Min	16~24m/Min	16~24m/Min	16~24m/Min
Feed Accuracy	±0.1/100mm
Maximum feeding length(mm)	~500
Work Rollers（Pcs）	Up 6/ Down 5
Feed Line Height	Accoring to customers’ Requirements
Power Supply	220V&380V
Uncoil Expansion	Hydraulic Expansion
Air pressure（Mpa）	0.49	0.49	0.49	0.49
Uncoil Motor (Kw)	2.2	2.2	3.7	7.5
control system	PLC+touch Screen



Material:Medium and high strength steel plate
Material Thickness：1.0～6.0 mm Note: Please refer to the correction ability table for thickness x width
Material Width：100 ～ 1800 mm
Yield Strength ：≤1370 N/mm2
Coil Inner Diameter:Φ450~φ530mm/φ480~φ530mm/φ580~φ630mm
Coil Outside Diameter:max φ 1600 mm
Coil Weight:3000~15000kg

Standard Configuration: Photoelectric arc control system Feed outlet guide rack device Press arm device The feeding line height is adjusted by screw worm gear Dial indicator Arc control roller The rack contains air pressure disc brake device Rack variable frequency speed regulation Optional Configuration Feed line height electric adjustment device Hydraulic automatic loading trolley
