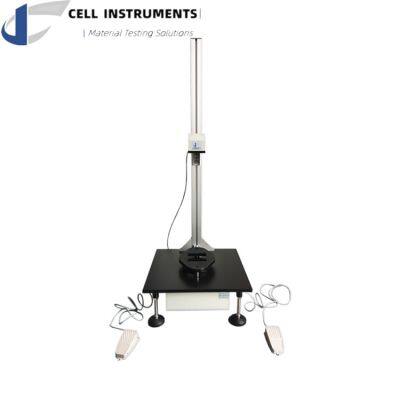

FBT-01 Falling Ball Impact Tester

Background

Impact resistance plays an important role in the performance of material subjected to regular shocking load or impact load. As this kind of load may cause rupture, cracking or deformation. There are various test procedures to evaluate the impact resistance of a material, such as dart impact, ball impact, pendulum impact, izod, charpy, tensile, etc.

Application

Falling ball impact tester measures the resistance performance of plates, sheets, and composites, films foils, paper etc. with less than 2mm thickness. By impact test, the material ability to resist external destruction can be indicated. User observes the destruction status of the test specimen after it has been hit by a falling weight that fell from a given testing height.

Test Method

A steel ball of known mass and diameter is released from a predetermined height, creating a controlled impact force on the test specimen (film or plastic sheet).

The impact energy and the resulting damage or deformation are measured and analyzed to assess the material's impact resistance.

Factors Influence Result

1. Drop Height: The height from which the steel ball is dropped is a critical parameter that can be adjusted to simulate different impact scenarios.

2. Ball Size and Mass: The size and mass of the steel ball are selected based on the specific testing standards or application requirements.

Technical Features

The FBT-01 Falling Dart Impact Tester is a system with PLC control (maintaining industrial-grade stability) and is operated via an HMI touch screen interface.

Key Features:

1. Precision PLC control and user-friendly touch screen interface

2. Adjustable impact height with a variety of available ball options

3. Display of test results in multiple units

4. Utilizes electromagnetic suspension for automatic ball release

5. Secure sample clamping through pneumatic mechanisms

6. Convenient manual and foot switch operation

7. Equipped with a dot matrix micro-printer

8. Option for advanced professional software (available as an add-on)

Main Parameters

Impact Height 300mm-600mm (can be extended)

Ball Diameters(mm) 23, 25, 28.6, 38.1, 50.8(one equipped)

Accuracy 0.1g (0.1J)

Specimen Clamp Pneumatic Clamp

Gas Supply 0.6 MPa Φ8 mm PU Pipe

Specimen Size > 150 mm x 150 mm

Power Supply AC 110~220V 50Hz
