- Ji'nan Kaixiang Petroleum Machinery Equipment Co.,Ltd.
- Main products: Drilling mud pump parts
Home > Products > F500/F800/F1000 > spray pump

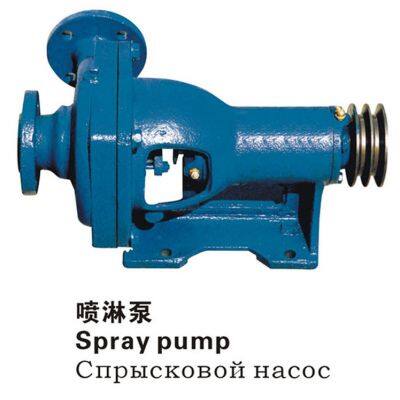

spray pump
USD $3 - $4
/ Bag
10 Bags(Min.Order)
- T/T PayPal
You May Like
Product Details
| Type | F500 F800 F1000 |
Product Description
| No. | Product Name | RG | No. | Product Name | RG | No. | Product Name | RG |
| 1 | Crankshaft assemble | RGF1300-02-00 | 84 | Oil seal ring | RGF1300-04.21 | 167 | Adapter connectorZG2-1/2″ | RGF1000-08A.07 |
| 2 | Crankshaft assemble | RGF1600-02-00 | 85 | O-ring φ190×3.55 | φ190×3.55 | 168 | Short circuitZG2-1/2″-NPT2-1/2 | RGF1300-08C.04 |
| 3 | Pinion Shaft assemble | RGF1300-03-00 | 86 | Two-lip seal 5"X6.25"X0.625" | RGF1300-04.08A | 169 | Flexible pipe Φ22×Φ37 | L=1500 |
| 4 | Pinion Shaft assemble | 87 | Locking spring | RGF1300-04.13 | 170 | Gladhand Φ22×Φ37 | RGF1000-08.18.00 | |
| 5 | Crossing Head Assemble | RGF1300-04-00 | 88 | Splash guard | RGF1300-04.10 | 171 | 90°Elbow NPT1″ | RGF1000-08.16 |
| 6 | Hydraulic End Assemble | RGF1300-05-00 | 89 | Extension rod | RGF1300-04.11 | 172 | Adapter connector NPT2-1/2″ | RGF800-08B.07 |
| 7 | Power end lubrication assembly | RGF1300-06-00 | 90 | Crosshead pin | RGF1300-04.12A | 173 | Sealing washer | RGF1300-08B.09 |
| 8 | Base Seat | RGF1300-07-00 | 91 | O-ring φ160×7 | 125X7 | 174 | NPT1″Flange | RGF1300-08B.10 |
| 9 | Spray Pump Assembly | RGF1300-08-00 | 92 | Bolt M20×65 | T52-6005K | 175 | Bead apex A-3708 | A3708 |
| 10 | Sealing washer | RGF1000-09 | 93 | Sealing gasket | RGF1300-04.15 | 176 | Flexible pipe Φ38×Φ53 | Φ38×Φ53-L=750 |
| 11 | Breather Cap | 94 | O-ring φ160×7 | GB3452.1-82 | 177 | 90°Elbow | 90°-ZG2-1/2″ | |
| 12 | Crane | RGF1300-10-00 | 95 | Lower slide | RGF1300-04.17 | 178 | 32PLCentrifugal spray pump | RGF1000-08-11-00 |
| 13 | Cover Plate | RGF1300-12-00 | 96 | Crosshead pin guide | RGF1300-04.18 | 179 | Inside thread ball valve g1 " | Q11F-16 |
| 14 | Gasket | 97 | Cross head bearing254941QU NNAL6/206.375Q4/W33XYA2 | RGF1300-04.19 | 180 | O-ringφ165×7 | GB3452.1-82 | |
| 15 | Oil Level Indicator | RGF1000-18-01-00 | 98 | Pipe joint NPT3/8″×2 | RGF1000-04-07 | 181 | The filter assembly | RGF1300-19.01.00 |
| 16 | Clean Out Cover(III) | RGF1000-22-00 | 99 | BoltM24×60 | T52-7008K | 182 | Shell | RGF1000-12-01 |
| 17 | Sealing washer | 100 | BoltM24×70 | T52-7009K | 183 | Double head bolt t53-4007 | M39×2-M39×3×135 | |
| 18 | Gasket | 101 | Locking plate | RGF1000-04-13 | 184 | Nut 1 M39×3 | T57-2011 | |
| 19 | Rubber Strip | 102 | Bolt M10×25 | GB5780-86 | 185 | Flange5 1/8×35MPa | T58-1002 | |
| 20 | Aseismic double scale pressure gauge | 103 | Bolt M24×65 | GB70-85 | 186 | Ring Gasket R44 | T58-5002 | |
| 21 | Discharge bend assembly | 104 | Loose-proof steel wire φ 1.6 | GB4240-84 | 187 | Discharge four-way | ||
| 22 | Plug screwZG1 1/2″ | 105 | Hydraulic cylinder assembly | RGF1300-05.01A.00 | 188 | Safety valve nozzle | ||
| 23 | Backing ringR44 | 106 | Cylinder head flange | RGF1300-05.02 | 189 | Pressure gauge holder | ||
| 24 | Discharge filter assembly | RGF1000-12-02-00 | 107 | Cylinder head | RGF1300-05.03 | 190 | Double armed boltM27×170 | T53-1004 |
| 25 | Flange5 1/8″×35MPa | 108 | Plug board assembly | RGF1300-05A.04.00 | 191 | Reducer unionR 1 1/2×NPT2″ | T512-1001 | |
| 26 | Tools attachment | 109 | Valve rod guides(lower) | RGF1300-05A.05.00 | 192 | pressure gaugeYK-150(0-60MPa) | ||
| 27 | KB-75 Pulsation Dampener | RGF1000-21-00 | 110 | Cylinder head plug | RGF1300-05A.06.00 | 193 | Backing ring R27 | |
| 28 | JA-3 Shear Relief Valve | RGF1000-23-00 | 111 | Positioning plate | RGF1300-05A.07 | 194 | Ja-3 shear safety valve | RGF1000-23-00 |
| 29 | Cover Plate Assembly | 112 | Cylinder head gasket | RGF1300-05.08 | 195 | Pulsation DampenerKB-75 | ||
| 30 | Adjusting shim | 113 | Discharge manifold | RGF1300-05-09 | 196 | Ring Gasket R39 | ||
| 31 | Main bearing end cover | 114 | Valve spring | RGF1000-05.16A | 197 | Bottom blug | ||
| 32 | Main bearing set (right) | RGF1300-02-02 | 115 | O-ring φ95×5.3 | φ95X5.3 | 198 | Airbag assembly | RGF1000-21-00-3 |
| 33 | Main bearing set (right) | RGF1600-01.02 | 116 | Valve assembly API 7 through-hole | RGF1300-05.12A.00 | 199 | Shell assembly | RGF1000-21-04-00 |
| 34 | Main bearing set (left) | RGF1300-02-13 | 117 | Valve cover sealing ring | RGF1300-05.13 | 200 | Cover | RGF1000-21-05 |
| 35 | Main bearing set (left) | RGF1600-01.06 | 118 | Valve cover | RGF1300-05.14A | 201 | 3 way 1/4″ | RGF1000-21-06 |
| 36 | Hollow crank shaft | RGF1300-02.10A.00 | 119 | Cylinder liner seal | RGF1300-05.15 | 202 | Adapter connector 1/4″ | RGF1000-21-07 |
| 37 | Hollow crank shaft | RGF1600-01.05A.00 | 120 | Wearing plate | RGF1300-05.16A | 203 | Pressure gauge cover assembly | RGF1000-21-08-00 |
| 38 | Pinion Shaft | RGF1300-03-02 | 121 | Cylinder liner flange | RGF1300-05.17 | 204 | Air release valve | |
| 39 | Pinion Shaft | RGF1600-02.01A | 122 | Cylinder liner gland | RGF1300-05.18.00 | 205 | Double scale pressure gaugeY-60 | |
| 40 | Connection rod | RGF1300-02-06 | 123 | Piston rod | RGF1300-05.19A | 206 | Angle stop valves | |
| 41 | Connection rod | RGF1600-01-04 | 124 | Spray pipe assembly | RGF1300-05.20B.00 | 207 | Backup ring | |
| 42 | Retainer ring | RGF1300-02-14 | 125 | O-ring Φ200X7 | φ200X7 | 208 | Double armed boltT53-4002 | |
| 43 | Retainer ring | RGF1600-01-07 | 126 | Cylinder liner lock ring | RGF1300-05.22 | 209 | NutM39×3 | |
| 44 | Eccentric Bearing928/660.4QU NUP464776Q4/C9/YA4 | RGF1300-02.19.00 | 127 | Clamp assembly | RGF1300-05.24.00 | 210 | Double armed boltT53-4002 | |
| 45 | Eccentric Bearing929/660.4QU, NUP464777Q4/C9YA4 | RGF1600-01.08.00 | 128 | Cylinder end cover | RGF1300-05.27 | 211 | NutM33×3 | |
| 46 | Main bearing4053160H 24060CA/W33 | RGF1300-02.20.00 | 129 | piston | RGF1300-05.28.00 | 212 | PULSATION DAMPENER PNEUMATIC HOSE ASSEMBLY | |
| 47 | Main bearing3003760Y 23160/W33 | RGF1600-01.09.00 | 130 | Bolt M22×65 | M22X65 | 213 | JA-3 shear safety valve | RGF1000-23-00 |
| 48 | Outer race retainer | RGF1300-02.05 | 131 | Suction manifold | RGF1300-05.32A.00 | 214 | Adapter connector | RGF1000-23-01 |
| 49 | Outer race retainer | RGF1600-01.03 | 132 | Gasket unit | RGF1300-05.33A.00 | 215 | Bead flange | RGF1000-23-02 |
| 50 | locating ring(I) | RGF1300-02.07 | 133 | Valve rod guide (upper) | RGF1300-05.12 | 216 | Piston assembly | RGF1000-23-03-00 |
| 51 | Hollow bearing | RGF1300-02.08A.00 | 134 | Double armed bolt M39×270 | T53-1003 | 217 | Valve body | RGF1000-23-04 |
| 52 | locating ring(II) | RGF1300-02.09 | 135 | Nut 1 M39×3 | T57-2011 | 218 | Piston rod | RGF1000-23-05 |
| 53 | Bolt M39×3-6g×140 | T52-3007 | 136 | Retainer | RGF1000-05.14 | 219 | Crash pad | RGF1000-23-06 |
| 54 | Spacer | RGF1300-02.12 | 137 | Bolt M10×20 | RGF1000-05.15A | 220 | Elastic cylindrical pin | RGF1000-23-07 |
| 55 | Sealing washer | RGF1300-02.03 | 138 | Piston packing | RGF1000-05.20A | 221 | Locking spring | RGF1000-23-08 |
| 56 | Inner locking ring | RGF1300-02.04 | 139 | Piston unt | T57-3005.0 | 222 | Safety valve | RGF1000-23-09 |
| 57 | Retainer | RGF1300-02.15 | 140 | O-ring Φ185X7 | φ185X7 | 223 | Shear plate | RGF1000-23-10 |
| 58 | Main bearing bolt | RGF1300-02.16C | 141 | Suction air chamber | RGF1000-05.35A.00 | 224 | Shear pin | RGF1000-23-11 |
| 59 | Shim set | RGF1300-02.17 | 142 | Inhalation capsule | RGF1000-05.35A.02 | 225 | Pin roll | RGF1000-23-12 |
| 60 | BoltM16×120 | T52-6006K | 143 | End cover | RGF1000-05.35A.03 | 226 | Steel cable baffle ring | RGF1000-23-13 |
| 61 | BoltM39×3-6H | T57-3005.0 | 144 | O-ring Φ345X7 | φ345X7 | 227 | Cotter 4×26 | RGF1000-23-14 |
| 62 | BoltM16×40 | T57-7003K | 145 | Suction flange （I） | RGF1000-05.39 | 228 | Cylinder liner lifting tool | RGF1300-17-03-00 |
| 63 | BoltM16×45 | GB5780-86 | 146 | Suction flange （II） | RGF1000-05.40 | 229 | Hydraulic pull valve | RGF1300-17-15-00 |
| 64 | BoltM16×100 | T52-6004K | 147 | Bolt M27×90 | M27×90 | 230 | Air bag is inflated hose assembly | RGF1000-26-10-00 |
| 65 | Key 2″×2″×11 3/8″ | RGF1300-03.01 | 148 | Stainless steel wire φ1.6×1830 | φ1.6×1830 | 231 | Manual hydraulic pump 70MPa | |
| 66 | Oil Seal Wear Ring | RGF1300-03.03 | 149 | Screwed plug NPT 1 1/2 | T56-1007 | 232 | Hanging seat | RGF1300-17-24-00 |
| 67 | End Cover | RGF1300-03.04 | 150 | Double armed bolt M39×563 | RGF1300-05.35B | 233 | Hand chain hoist SH1/2 | |
| 68 | Gasket | RGF1300-03.05 | 151 | Suction block plate | T55-1006 | 234 | Cylinder head rod | RGF1000-26-01-00 |
| 69 | Gasket | RGF1300-03.06 | 152 | Outlet blocking board | T55-1008 | 235 | Reducer union | RGF1300-17-09 |
| 70 | Bearing Sleeve | RGF1300-03.07B | 153 | Spring washer 39 | RGF1300-05.39 | 236 | Adapter connector1" | RGF1300-17-12 |
| 71 | Race Retainer | RGF1300-03.10 | 154 | Bolt M27×80 | GB5780-86 | 237 | Extension bar 8" | RGF1300-17-11 |
| 72 | Gasket | RGF1300-03.12 | 155 | Square key 3/16×3/16×1 | T516-2001 | 238 | Extension bar 24" | RGF1300-17-13 |
| 73 | Oil Gathering Box | RGF1300-03.13B.00 | 156 | Oil pump gear assembly | RGF1300-06.20A.00 | 239 | Extension bar 19 5/8" | RGF1300-17-10 |
| 74 | Skeleton oil seal 9.125"X10.375"X0.625" | RGF1300-03.08A | 157 | Pipe joint NPT1/4×M14×1.5 | T513-1006 | 240 | Sleeve 2 " | RGF1000-26-03 |
| 75 | BearingNU3044X3M 4G32844H | RGF1300-03.09 | 158 | Gasket unit | RGF1300-06.06A.00 | 241 | Sleeve 2 3/8" | RGF1000-26-02 |
| 76 | Flange | RGF1300-03.11 | 159 | Stand | RGF1300-06.19A | 242 | Sleeve 3 5/8" | RGF1300-17-06 |
| 77 | Crosshead | RGF1300-04.01A | 160 | Overflow valve | YYFJ-L20 | 243 | Sleeve 1 1/2" | RGF1300-17-08 |
| 78 | Upper slide | RGF1300-04.02 | 161 | 2S gear oil pump | 2S | 244 | Long sleeve | RGF1300-17-20-00 |
| 79 | Gasket unit | RGF1300-04.03A.00 | 162 | Pressure gauge Y-60Z | M14×1.5 0-1.6MPa | 245 | Transition taper sleeve | RGF1300-17-17 |
| 80 | Adjusting pad | RGF1300-04.04 | 163 | Oil filter assembly | RGF1300-06A.33.00 | 246 | Pressure sleeve | RGF1300-17-18 |
| 81 | Packing box | RGF1300-04.05 | 164 | Short circuitNPT1″-G1″ | RGF1300-08.02 | 247 | Bolt M24×160 | RGF1300-17-23 |
| 82 | Gasket | 165 | Adapter connectorNPT1″ | RGF1300-08B.04 | 248 | Plug board extractor | RGF1300-17-22-00 | |
| 83 | Packing box end cover | 166 | Adapter connectorG1″-M33×2 | RGF1300-08.03 | 249 | Short screw |
