Cantilever Jib Crane Arm Slewing 360 Degree for Sale Electric Chain Hoist for Sale
- Qingdao port,China
- T/T L/C
- 35 days
You May Like
-
European Design Electric Hoist Double Girder Bridge Crane EOT Type A5 FEM ISO
-
Electric Jib Crane Cantilever Arm Slewing Electric Motor Driving A3 Light Equipment
-
Single Girder Bridge Crane Overhead Beam A4 20m/min Double Lifting Speed
-
Double Girder Gantry Crane Saddle Type A7 Working Class for Workshop
-
European Design Wire Rope Hoist A5 Compact Design SEW Brand Gearbox
-
LDC European Design Single Beam Eot Crane M5 FEM High Configuration SEW Gear Box
Product Details
| Brand Name | Kuangyuan | Place of Origin | China | |
| Model Number | BZD | Certification | CE,ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 18months | |
| Application | General industry | Condition | New | |
| Max. Lifting Load | 3t | Span | 6m | |
| Rated Lifting Moment | / | Rated Loading Capacity | 0.5~5t | |
| Max. Lifting Height | 4m |
Product Description
Product Description:

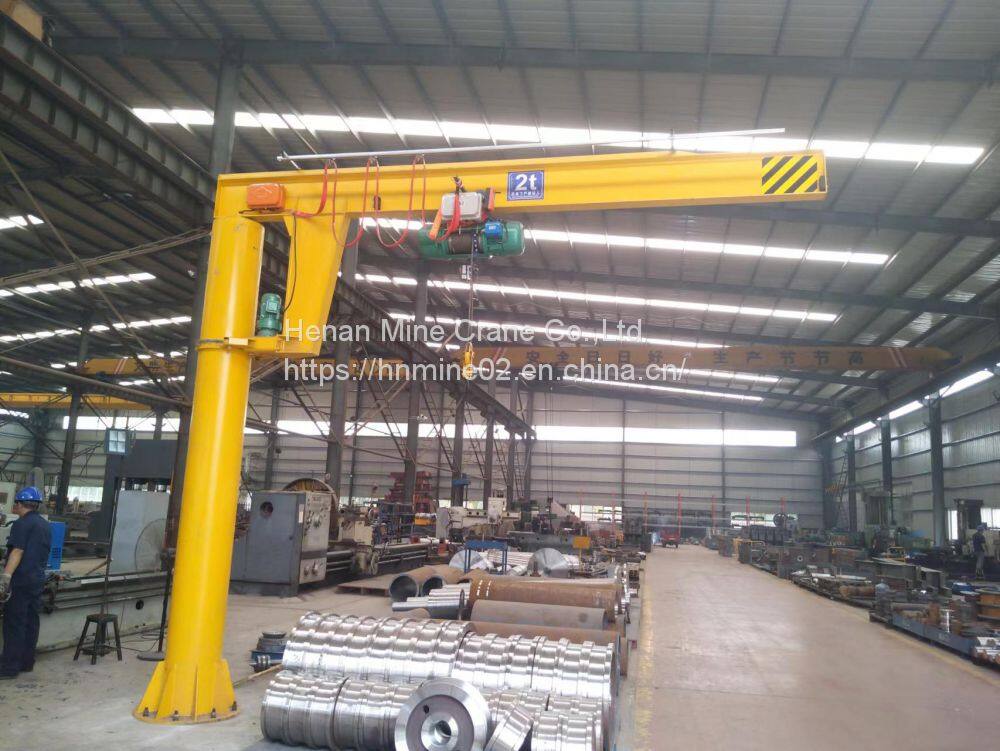

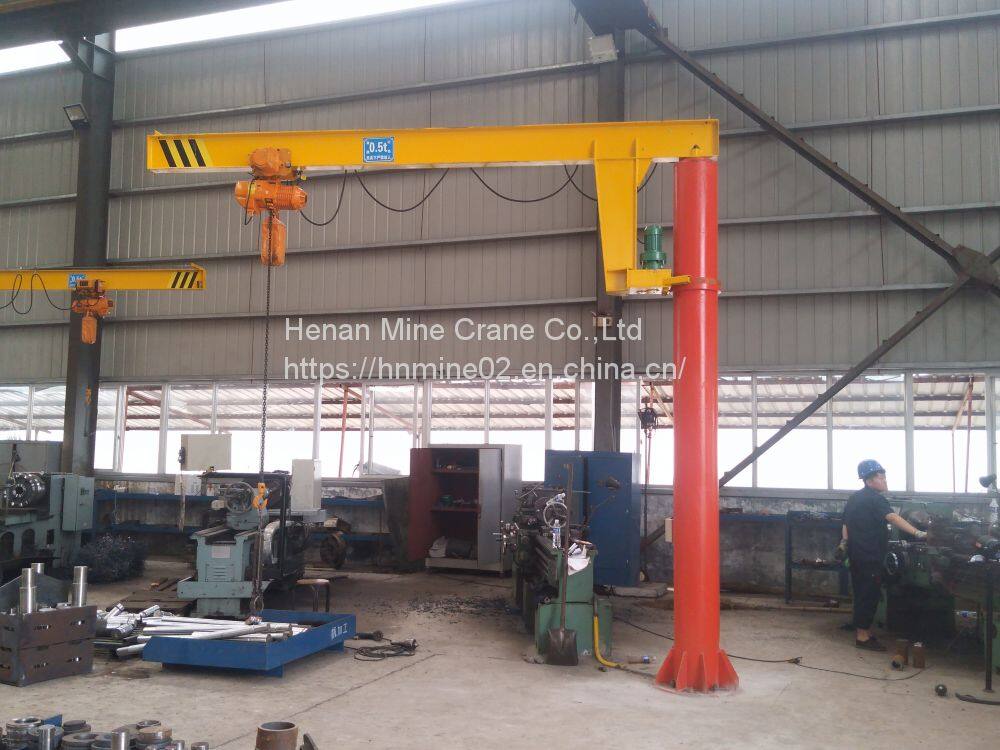

Column type slewing jib crane cantilever arm 6m A3 light lifting equipment
Column Slewing Mounted Jib Crane are versatile, efficent and cost effective solutions for moving materials within an individual workstation, for transferring materials from work area to work area or for serving as auxiliary lifting devices under
overhead tadano cranes.Column Slewing Mounted Jib Crane can be handled easily by one man and have been thoroughly proven in factories, steel mills, muclear and other power stations, ship yards, stockyards, on dredgers, aboard ships, in the wood and stone working industry, in marinas and on railway stations.
>Capacities from 500 kgs to 5Tons
>Standard span up to 20 feet
>360 degree rotation/270 degree/180 degree/90 degree
>Designed for permanent concrete foundation
>Base plates assembly is secured by means of anchor bolts to a prescribed reinforced concrete foundation, with the number of anchor bolts varying with the capacity of the tadano crane.

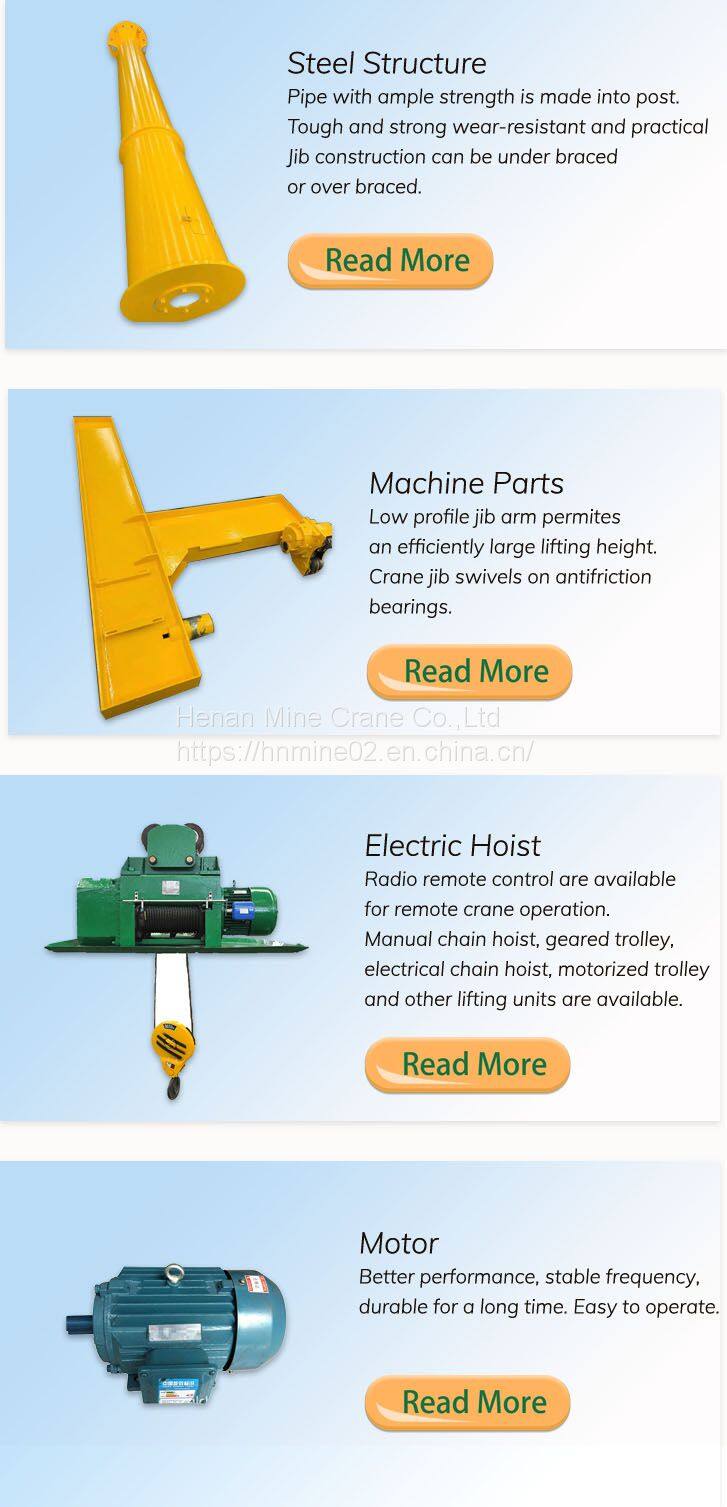

>The pipe or colomn is designed to give maximum strength and minimum
deflection to resist bending, buckling and crushing
>The top bearing assembly utilizes a tapered roller bearing provided with
grease fitting for proper lubrication.

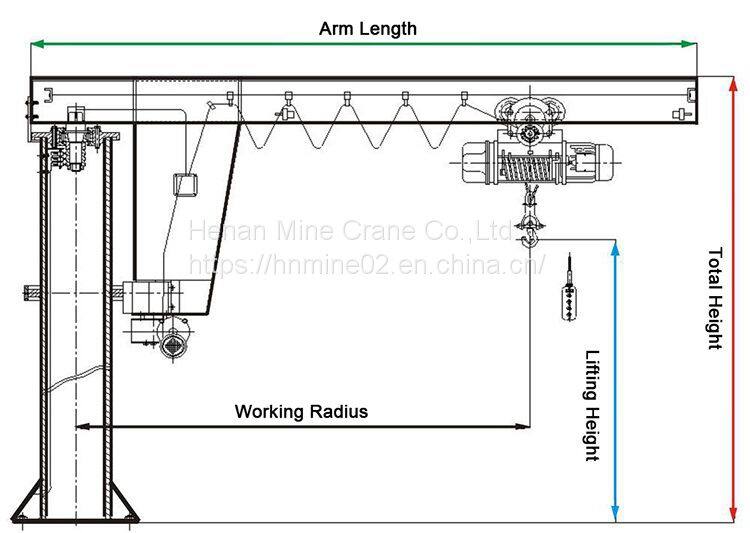

Basic parameters:
| Technical Parameters | ||||||||
| Type | Lifting capacity | Up and down speed(normal;slow)(m/min) | Rotation speed(r/min) | L(mm) | R2(mm) | R1(mm) | H(mm) | h(mm) |
| BZD0.25 | 0.25t | 4/1 ; 8/2 | 0.92 | 5425 | 5000 | 1000 | 5100 | 4000 |
| BZD0.5 | 0.5t | 4/1 ; 8 ; 8/0.8 | ||||||
| BZD1 | 1t | 8/2 ; 8 ; 8/0.8 | 0.76 | 5500 | ||||
| BZD2 | 2t | 4/1 ; 8 ; 8/0.8 | 0.76 ; 0.59 ; 0.51 | 3765;5565;6525 | 3300;5000;6000 | 1300;1300;1500 | 4350;5400;4660 | 3000;4000;3500 |
| BZD3 | 3t | 8 ; 8/0.8 | 0.51 | 5560 | 5000 | 1500 | 3150 | 3500 |
| BZD5 | 5t | 4680 | 4000 | 1800 | 4770 | 3000 | ||
