MH Single Girder Gantry Crane Hoist Trolley Boxed Type Squirrel Cage Reducer
- Qingdao port,China
- T/T L/C
- 45 days
You May Like
-
Jib Crane Cantilever Electric Slewing Engine Driving Chain Hoist Wire Rope Hoist
-
Single Beam Gantry Crane Wire Rope European Design SEW Reducer A5 VFD Control
-
RMG Container Gantry Crane U Legs A8 Whole Circule Working Heavy Duty
-
Container Handling Gantry Crane Rail Mounted Traveling RMG Type A8
-
Electric Slewing Jib Crane Chain Hoist Traveling A3 Wire Rope Hoist Trolley
-
European Design Double Girder Electric Hoist Bridge Cranes Top 10 Budget for Sale
Product Details
| Brand Name | Kuangyuan | Place of Origin | China | |
| Model Number | MH | Certification | CE,ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 18months | |
| Application | Handling needs location | Condition | New | |
| Max. Lifting Load | 16t | Span | 28.5m | |
| Rated Lifting Moment | / | Rated Loading Capacity | 5~32t | |
| Max. Lifting Height | 12m |
Product Description
Product Description:

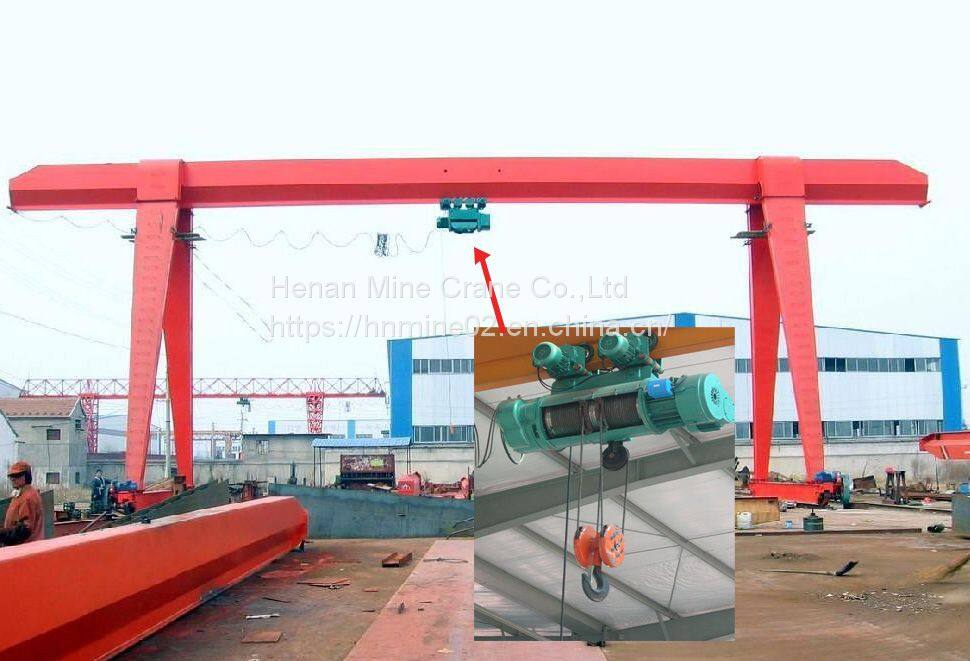

Single girder gantry crane CD/MD hoist trolley

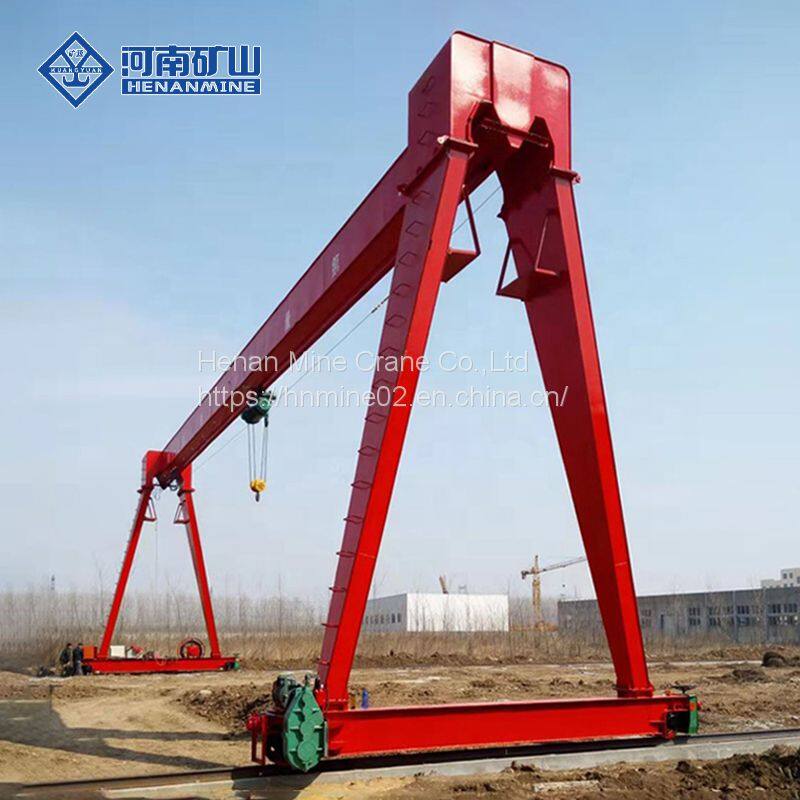

Single beam gantry crane is a kind of track traveling midlight type crane, which generally is used together with CD, MD, HC model electrical wire rope hoist.
MH type single girder gantry crane has boxed type and trussed type, the former have good techniques and easy fabrication; the latter is light in dead weight and strong in wind resistance. For different usage, MH model gantry crane also has three type : without cantilevers , with single cantilever and with both cantilevers. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient with high efficiency and more working length.
MHLP type single girder gantry crane is L type legs gantry crane, with small size and light duty, special for putting steel pipes, girders, or other long materials into the special place , widely used in steel plant, concrete girder yard.
Main Features of Single girder gantry crane:
Simple and compact structure, steady performance.
Easy to install and high efficiency.
Overload, low voltage protective device.
Pendent control and remote control.
Easy maintenance.
Specification of Single girder gantry crane:
Lifting capacity is 5ton to 32ton;
Span is 12m to 30m;
Lifting height is 6m, 9m, 12m, 16m, 24m, 30m, etc;
Working duty is A3;
Working temperature is -20°C to + 40°C
Product specification:| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross traveling | 20 | 20 | 20 | 20 | 20 | |||
| Long traveling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 | ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross traveling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.82 | ZDY121-4/0.82 | YZD-4/0.84 | |||
| Long traveling | Ground | ZDY21-4/0.82 ZDY21-4/1.52 | YZY22-4/1.52 YZR132M2-6/3.72 | YZR22-4/1.52 | YZR160M1-6/6.32 YZR160M2-6/8.52 | YZR160M1-6/6.32 YZR160M2-6/8.52 | ||
| Cabin | ZDR100-4/1.52 ZDR112-4/2.12 | YZR112L1-4/2.12 YZR160M1-6/2.12 | YZR112L1-4/2.12 YZR160M2 | YZR160M2-6/8.52 YZR160L2-6/112 | YZR160M2-6/8.52 YZR160L2-6/112 | |||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9,12,18,24,30 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
