European Design Electric Traveling Wire Rope Hoist M4 FEM ISO Certificates

Product Description:

KC Model wire rope hoist Henan Mine Crane M5 moderate class

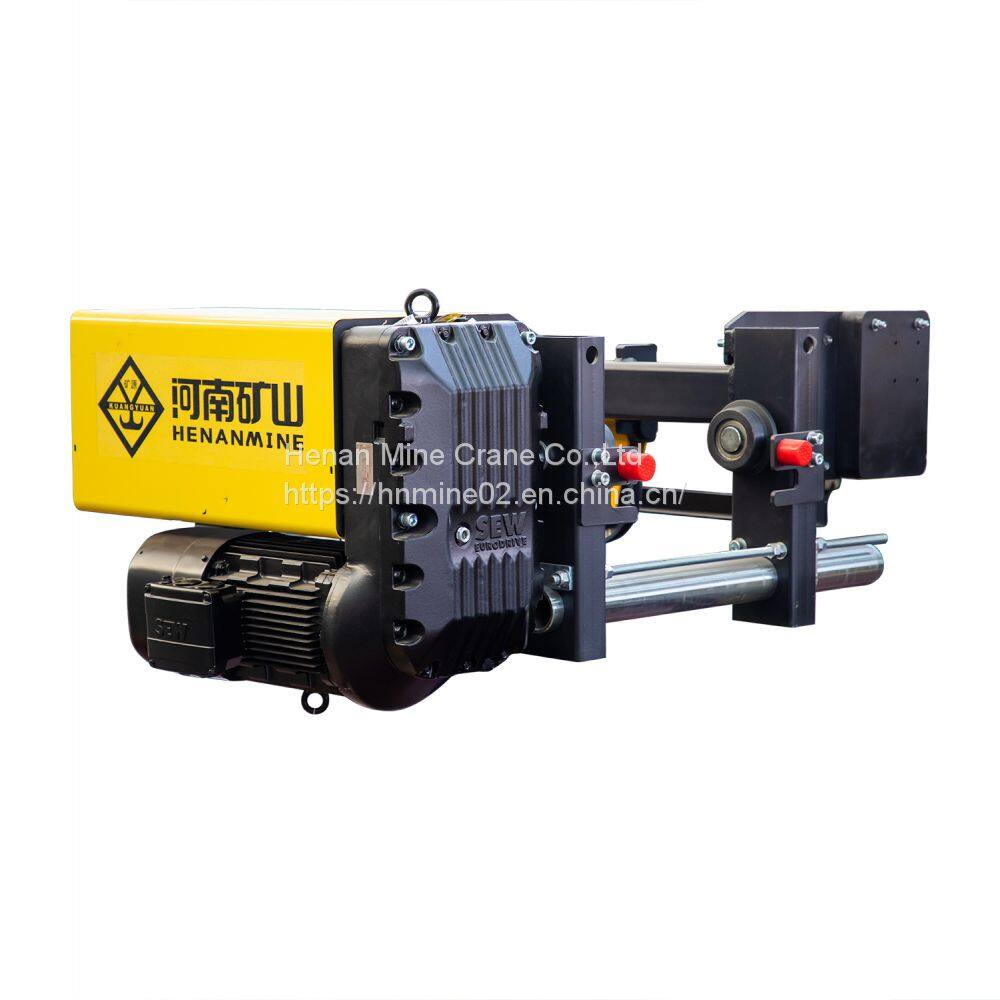

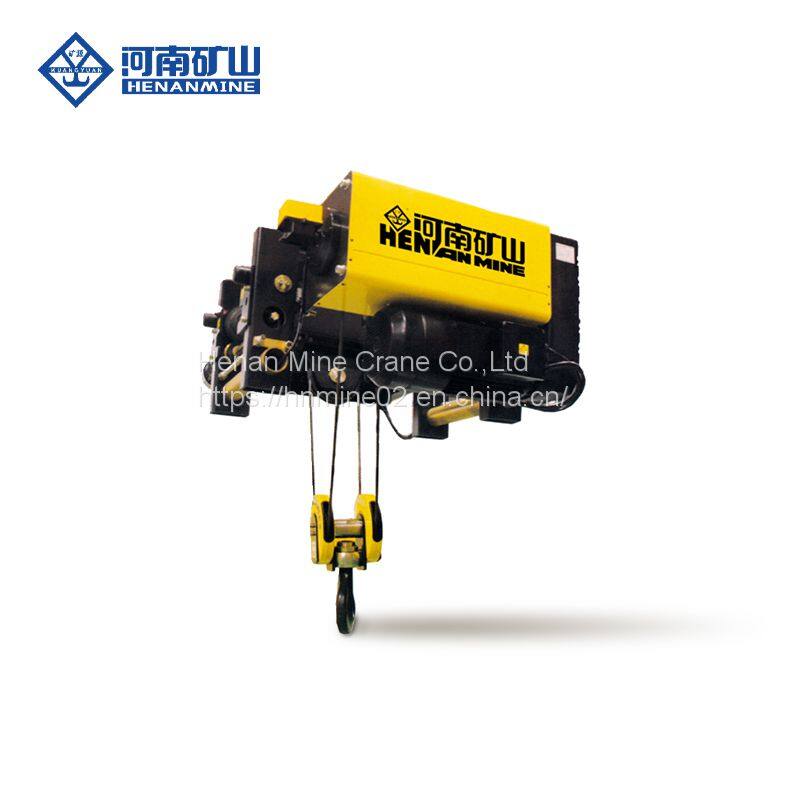

European design hoist from Henan Mine Crane is a new type wire rope hoist.It employs motor of hoisting mechanism and reducer imported from Germany.The integrated and compact design of hoisting motor,reducer,reel and limit switch saves space for the users.Modular design increases the reliability of mechanism meanwhile reduces the time and cost for maintaining.
It has more and faster hoist speed and various pulley ratio which can be selected. The standard traveling mechanism of trolley is controlled by converter,with speed of 20m/min,which makes a little swing and accurate position if hoisting items while trolley traveling as well as lifts precision and valuable items reliably.
The hoisting mechanism of European design hoist for single girder crane strictly carries out the relevant standards of FEM with aluminum alloy shell of reducer,steady running and low noise features,lift time lubricating(within safety service circle),and double-disk electromagnetic brake.
Configuration of protection:
1.Anti-collision device:
   If several cranes travel on the same rails,the common resolutions refer to install contact anti-collision device so as to avoid sharp impact due to incorrect operation.Non-contact infrared sensor anti-collision device will be additionally installed to take double safety protection measure-sound and light alarm if running busily or under an important working environment.
2.Overload protection device:
   If work with over load,it has safety devices with protection function including auto-stop lifting capacity limiter and weight display.
3.Electric protection:
   It has complete equipments including main isolation switch,emergency disconnect switch,protection for short circuit,pressure loss,zero position,excitation loss,over current and over speed,which sufficiently implements conception of safety first.

Product specification:

Company profile:
