European Design Single Beam Gantry Crane Boxed Beam Legs High Performance

Product Description:

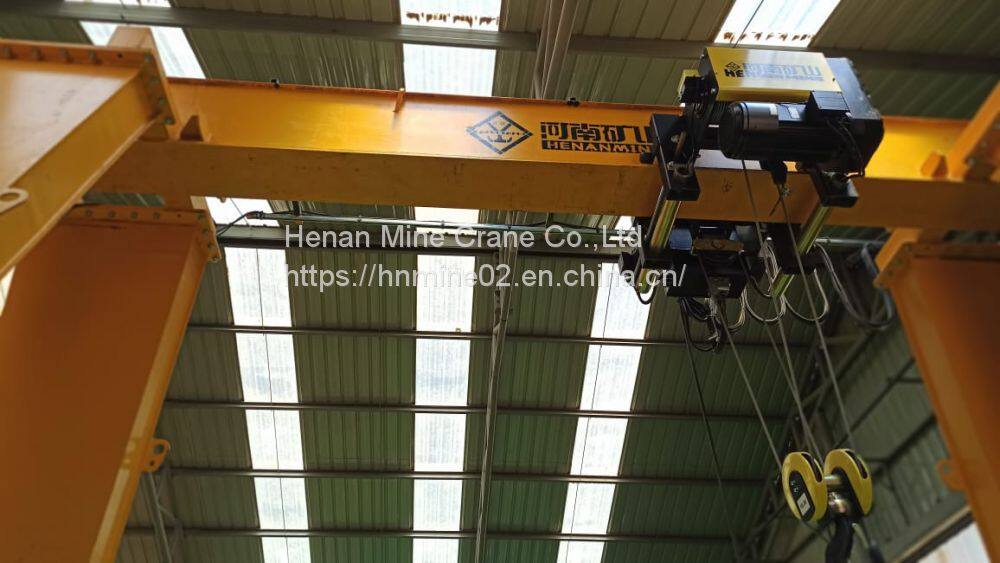

Single girder gantry crane European design A5 class

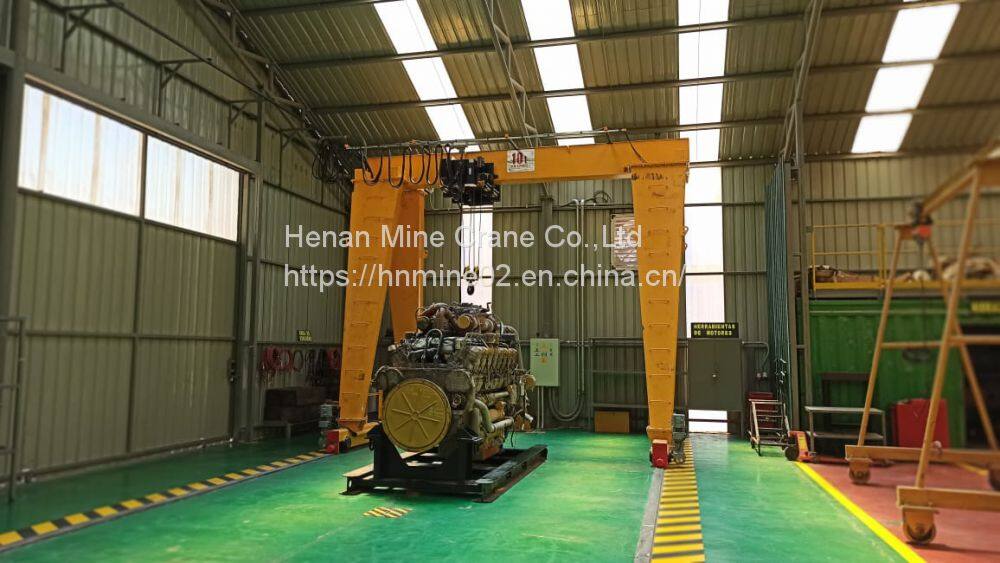

The European design gantry crane is a bridge type crane that is supported on the ground track by two legs on both sides of the bridge. Structurally, it consists of a gantry, a crane operating mechanism, a lifting trolley, and electrical components. Some gantry cranes only have legs on one side, while the other side supports the operation on the factory building or trestle, called semi gantry cranes.

The upper bridge (including main beam and end beam), support legs, lower crossbeam, and other parts of the gantry of the European gantry crane are composed. In order to expand the operating range of the crane, the main beam can extend beyond the support legs to one or both sides, forming a cantilever. A lifting trolley with a boom can also be used to expand the operating range of the crane through the pitch and rotation of the boom.

1. Compact structure, reducing land occupation

Lightweight, with low wheel pressure, imported raw materials and exquisite structure, the overall procurement cost is reduced and customer profits are increased under the same demand situation.

2. Accurate positioning and reliable implementation

The implementation is very precise, which can increase the reliability of hook positioning, control drift amplitude, and provide customers with customized solutions for lifting tonnage from 50kg to 50t.

3. Automatic recognition and intelligent operation

Intelligent data docking functions such as environmental self recognition, trajectory planning, and automatic obstacle avoidance for human-machine interaction, automatically docking with production lines, promoting efficiency improvement and cost reduction.

4. Intelligent management and convenient maintenance

Remote control, fault information alarm, work statistics and other functions can be set to reduce manual maintenance time and costs.

5. Low failure rate and stable performance

Extremely low failure rate, sensitive triggering, high accuracy, light load weighing accuracy of ± 5%, heavy load accuracy of ± 2%, strong stability for long-term use, and high reliability.

6. Energy saving and electricity saving, reducing labor costs

The intelligent crane control system saves over 30% of electrical energy, and saves over 80% of labor and maintenance costs annually compared to older cranes. Realize an annual increase in profits.
