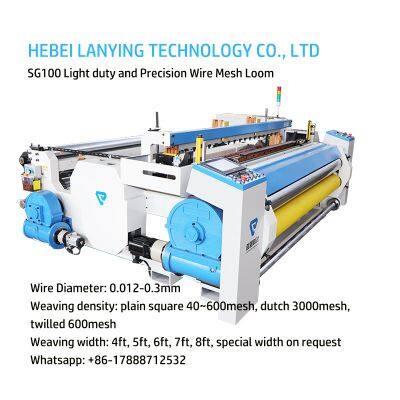

PCB Screen Printing Wire Mesh Weaving Machine

Model no.: SG100L/130-1JD

Wire diameter: 0.016-0.3mm

Nominal weaving width: 1300mm (arbitrarily adjust width, special width on request)

Weaving density: plain weave square hole 40-600mesh/inch; twilled weave up to 60mesh/inch

Speed: 80-120RPM, the spindle frequency converter regulates speed, and the actual speed depends on the weaving width and specifications.

Shedding forms: 3 options: cam lead arch heald frames, electronic rotary dobby, servo dobby. Aluminium heald frames, if choose electronic rotary dobby, max 20pcs heald frames.

Weft insertion: High performance servo motor CNC single-way or two-way weft insertion, full carbon fiber rapier.

Beat-up form: single

Let-off/Take-up: CNC let-off(warp tension automatic display and adjust), CNC take-up (3-roller)

Wire material: Metal wires such as stainless steel, iron, bronze, copper, phosphate bronze, aluminum, platinum, polyester, plastic, etc , and non-ferrous wires.

Weaving method: plain, twilled, dutch, 3-heddle, 5-heddle, RDW, stain, weft density change,etc..according to request.

Basic tension: 15000N/M

Size(L*W*H)mm: 2750X3300X1500

Weight: 4200KG

ABOUT LANYING:

Hebei Lanying Technology Co., LTD is a technology-oriented enterprise that is composed of mechanical and automation professionals, with strong R&D capacity. We have been engaged in the manufacturing of metal wire mesh weaving looms since 20 years ago. We commit to improving the automation and efficiency of the metal wire mesh weaving. From self-developed special CNC system and algorithm for the metal wire mesh weaving loom to the fully CNC weaving loom and the fully CNC warping machine. We not only manufacture general use wire mesh weaving machine but also provide customized machines and effective overall solutions according to customer requirements.
