Amada CNC Punch Press Thick Turret Nct Tooling E STN Punch Shape Ferramentas PARA Punzonadoras

THICK TURRET TOOLING suitable for Amada, Finn-Power,

Prima-Power,LVD,Euromac,Yawei,Tailift,Yangli,JFY,LFK,Danobat,Murata,Pullmax,Durma,Ermaksan,Baykal,Rainer,MVD,SimasV,SNK,Dener,ITE

Basic type is fully compatible with OEM popular series,Amada ,Mate original,Wilson metric.Best ecomonic type,save big cost.An economic ,Durablity,Performance,Lower cost type

FAB type is a better tooling，Durability,Performance,Long grinding life,Quick adjust,Compatible with amada punch,Exchange with NEX,Quickadjust,Rapidset,No need tools to adjust punch

FAB 90 type is a best tooling Durability, Performance,Grind life punch:6.0mm,Exchange with Wilson S90 series,Quickly adjust, no need tools to adjust

Punch material: M2-SKH51-High speed steel, Hardness HRC 60°-64°,Japan M2--JP M2 available,addons.
Die material:D2-SKD11, Hardness HRC 58°-60°
TIN/Maxima coating optional and vailable,improve double punch life
TICN/ Optima coating optional and vailable,improve four times punch life

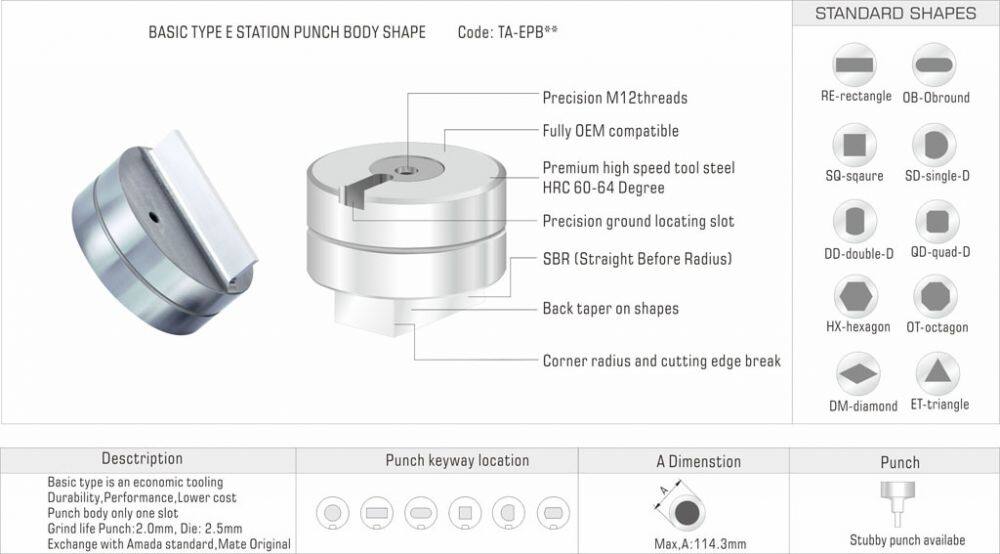

Below show location,die clearance,punch tip,Standard shape:Rectangle,Square,Oblong,QR,QD,Single D,Double D,Hexagon,Octagon

Each year,AFAB promote in different famous exhibition in various countries

For the last couple of years, as the leading manufacturer of punch and bend tooling, We provides a wide range of tool solution for
punching press, press brake, laser cutting consumables, sheetmetal machines. AFAB company focus only on one thing: How to make
your sheetmetal work better. We think, we design, we apply different kind of accessories, Solution, Innovation to your
requirement. With AFAB you have a partner that respects your knowledge and is dedicated to helping you succeed.
Come talk to us. AFAB Tool Limited is located in Shengzhen, China, well-know as "World′s Factory", A manufacturer of
superiorproducts and solutions for sheet metal fabricators, AFAB dedicate in excellent solution with perfect quality, low cost,
best service and comprehensive products. AFAB products and services are available worldwide, fully supported by over than 30
dealers in every industrialized countries, in Africa, Asia-Pacific, Europe, the Middle East, North America and South America.
AFAB company equip with more advanced metal proccessing machines, such as CNC lathe, drill, surface grinder, universal
grinder,centerless grinder, maching center, wire cutting, EDM sinking, which ensure we can supply satisfied quality tooling in
high precisionrequest, support fast delivery time, delivered by DHL, TNT, UPS, FedEx fast express. All products are backed with
our industry leading 100% satisfaction guarantee
AFAB products,
1. CNC punch press tooling A. Thick turret tooling B. Tumpf style tooling C. Wedemann marata tooling D. Strippit tooling E.
Salvagnini Tooling2.Press brake tooling for amada,trumpf,lvd,bystronic,....
2. Sheet Metal equipment A. Auto Punch die grinder B. Self clinching machine C. Auto feed riveting system
3. Consumables for laser cutting machine, Laser lens, mirror, nozzle, nozzle holder-ceramic, sensor cable.
