Home > Products > Piezo series > Low voltage ring piezoelectric actuator with aperture 9mm/14mm
Low voltage ring piezoelectric actuator with aperture 9mm/14mm
- 1000 Piece / Pieces per Month
- T/T
You May Like
-
Amplified Piezo Actuators displacement to 500um for Micro Imaging
-
Preload piezo actuators 40kHz frequency open/closed loop
-
Piezo actuator with preload optional transfer mode closed loop SGS sensor
-
High precision piezo actuator stage piezo expender nanometer resolution for fiber adjustment
-
piezo linear motor positioner piezo stack actuator for industrial application
-
Z axis micrometer positioning piezo amplified actuator for microimaging
Product Details
| Brand Name | coremorrow | Place of Origin | China | |
| Model Number | HPSt150 |
Product Description

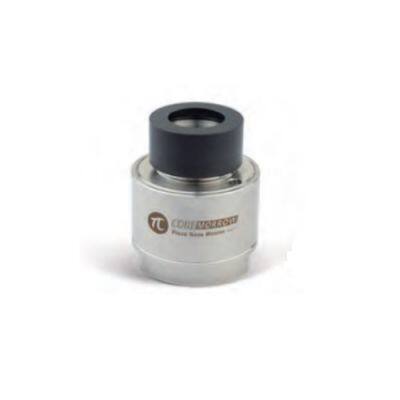

Low voltage ring piezo actuator is ring piezo stack actuator with mechanical preload. There is an aperture through it, which can be used in optical positioning systems.
Characteristics
Stroke to 47μm
High precision of closed loop positioning
Blocking force to 5300N
Aperture: ?9mm/?14mm
Installation
There are screw base at the bottom for fixing, and screw head at the top connected to load. There is a fixing cap for installing of mirror.
Technical Data
Type | Closed loop: end with S Open loop: end with K | Stroke [μm]±10%* | Stiffness [N/μm]±20% | Push/pull force [N] | El.capacitance [μF]±20% | Resonant frequency[ kHz]±20% | Length L [mm]±0.3 |
HPSt150/14-10/12 VS22 | 11 | 250 | 3000/250 | 2.6 | 30 | 31 | |
HPSt150/14-10/25 VS22 | 23 | 120 | 3000/250 | 5.2 | 20 | 44 | |
HPSt150/14-10/40 VS22 | 38 | 70 | 3000/250 | 7.8 | 14 | 58 | |
HPSt150/14-10/55 VS22 | 47 | 50 | 3000/250 | 11 | 9 | 71 | |
HPSt150/20-15/12 VS35 | 11 | 450 | 5300/450 | 5 | 30 | 31 | |
HPSt150/20-15/25 VS35 | 23 | 230 | 5300/450 | 10 | 20 | 44 | |
HPSt150/20-15/40 VS35 | 38 | 150 | 5300/450 | 15 | 17 | 58 | |
HPSt150/20-15/55 VS35 | 47 | 100 | 5300/450 | 20 | 15 | 71 | |
