2-16 Square Compression Garbage Truck Multiway Valve QZM60M-N1T.4OT(O7T) Friend QZL15-N1T.4OT

Company sales products: multi-directional valve, electronic control wireless distributor, hydraulic distributor, balance valve hydraulic lock, relief valve, manual valve, electronic control valve.

The multi-way reversing valve and distributor are a combination valve composed of a check valve, a safety valve, an oil intake body, an oil return body and a plurality of reversing valve pieces. It has the characteristics of high working pressure, compact structure, good safety valve performance, not easy to leak, reliable operation, good versatility and so on.

Technical Specification. Technical specification

Valve can be Couplet number: 1-20 couplet

Spool valve function: A.O.P.Y., etc

Nominal size:8 10 12 15 20 25 32

The Joining port of the thread interface is M18* 1.5M22 * 1.5M27 * 2M33 *2

G3/8 G1/2 G3/4 G1 (three, four, six, one inch) can be customized on request.

Spool returning: Automatic spring return T or ball positioning W.

Pressure grade: 16MPA 20MPA 31.5MPA Available

A check valve is provided inside the valve disc to prevent oil backflow. The oil inlet valve disc has an overflow valve to control the pressure of the entire system. Overload valves can be installed according to customer requirements to meet different execution

Mechanism load required. And with series high pressure output port to provide power source for other hydraulic components. The reversing valve can be used for wrecker trailers, forklifts, sanitation trucks, lifting and transportation machinery, mining machinery, agricultural machinery, rollover dump trucks, Marine machinery, lifting equipment, etc.

For more information, please consult

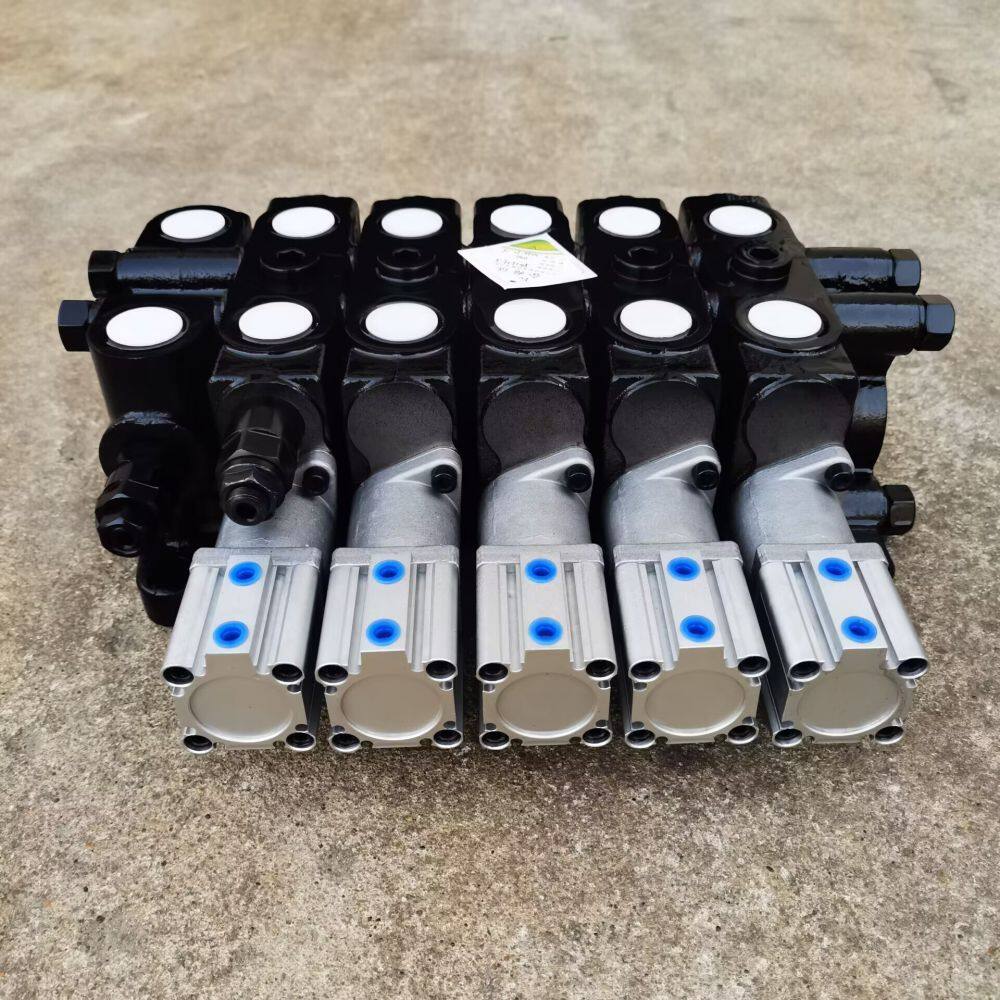

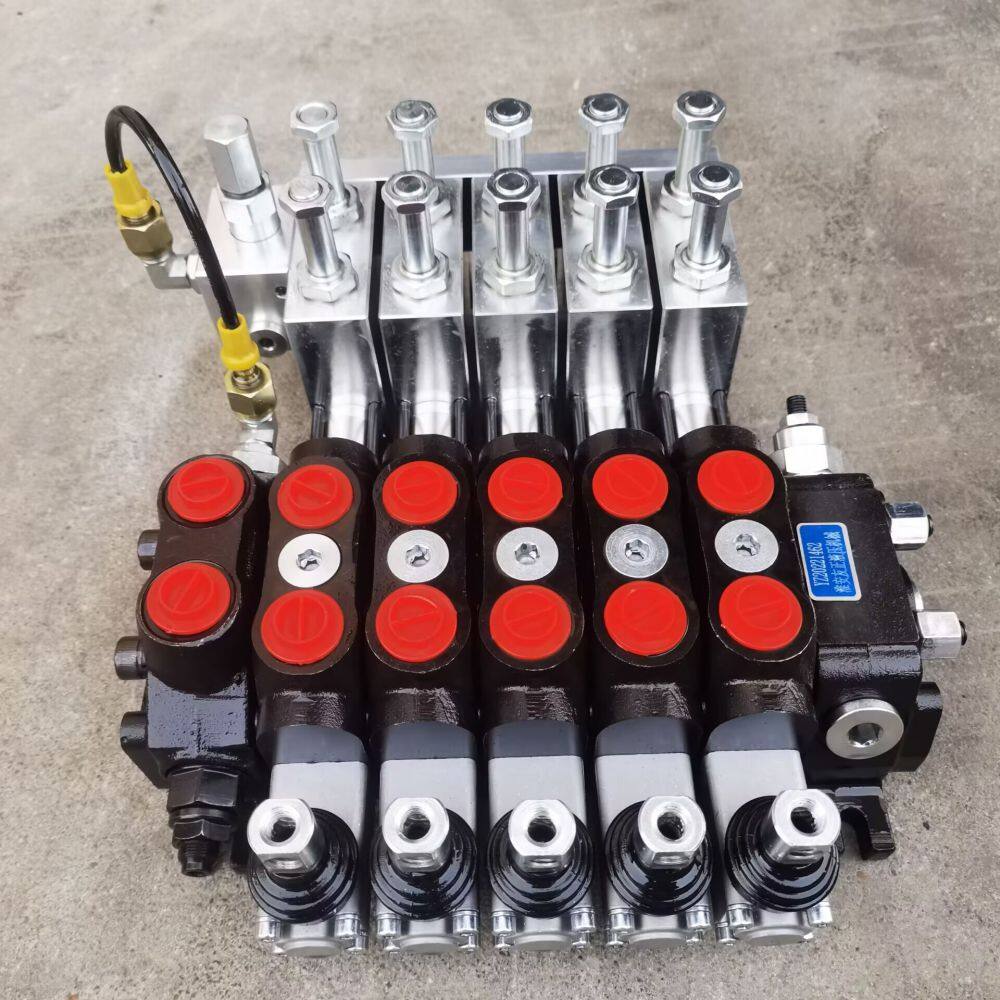

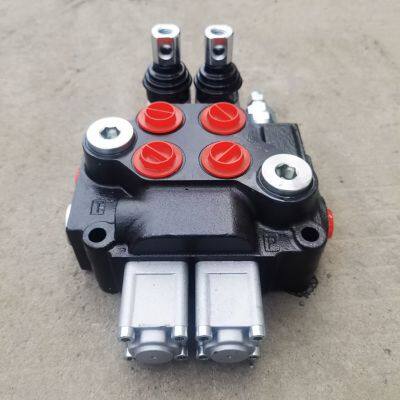

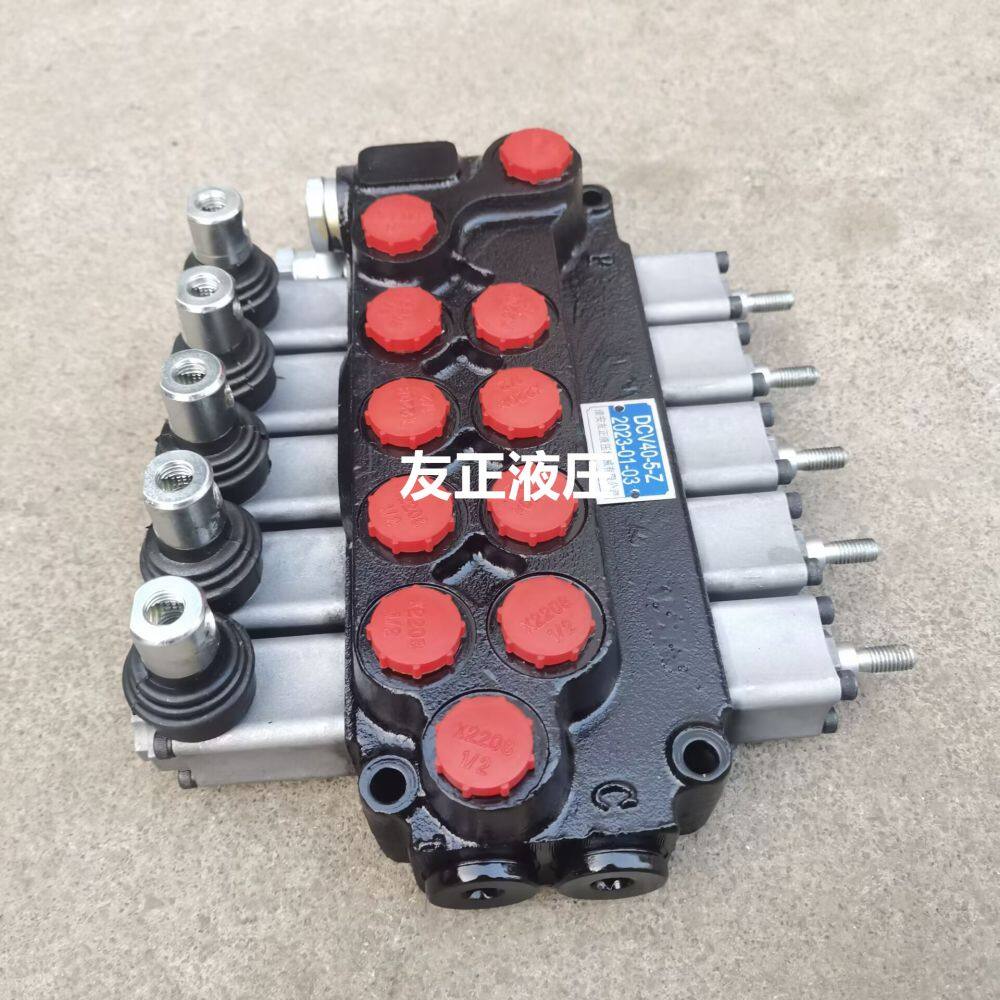

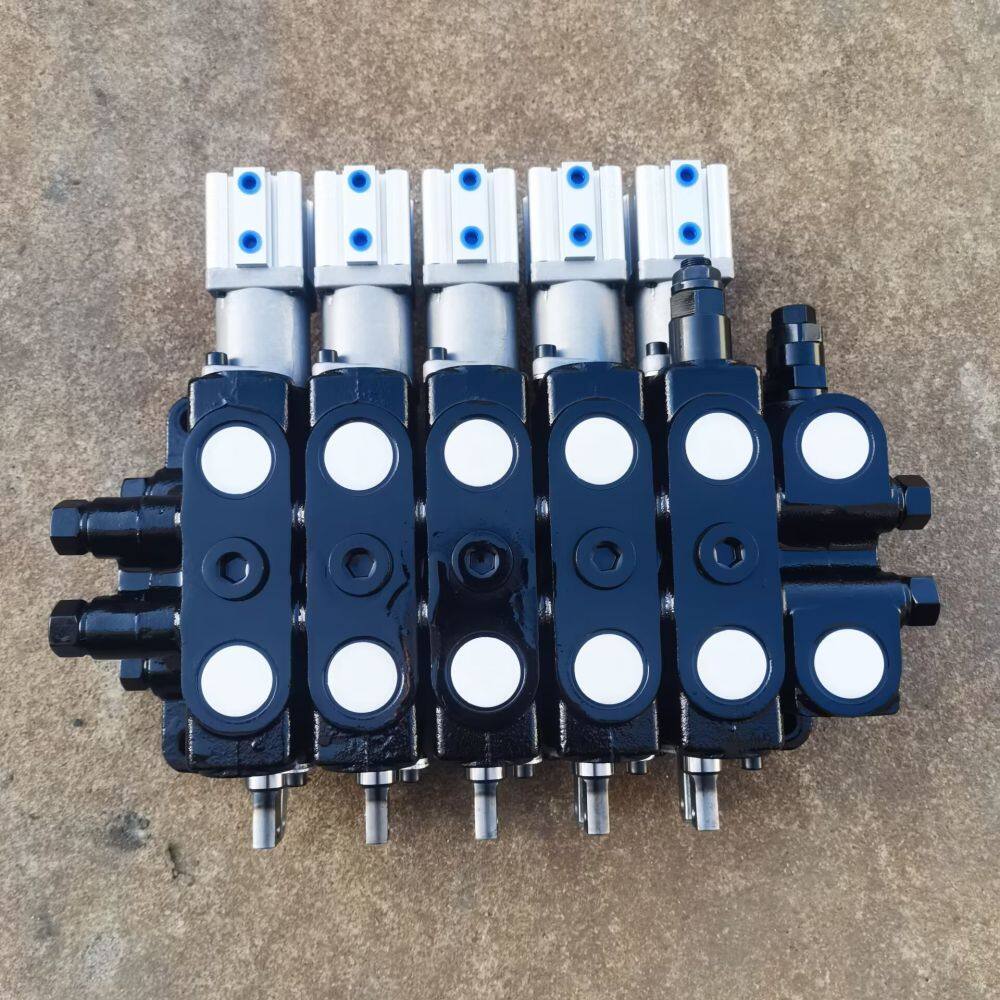

Product display:
