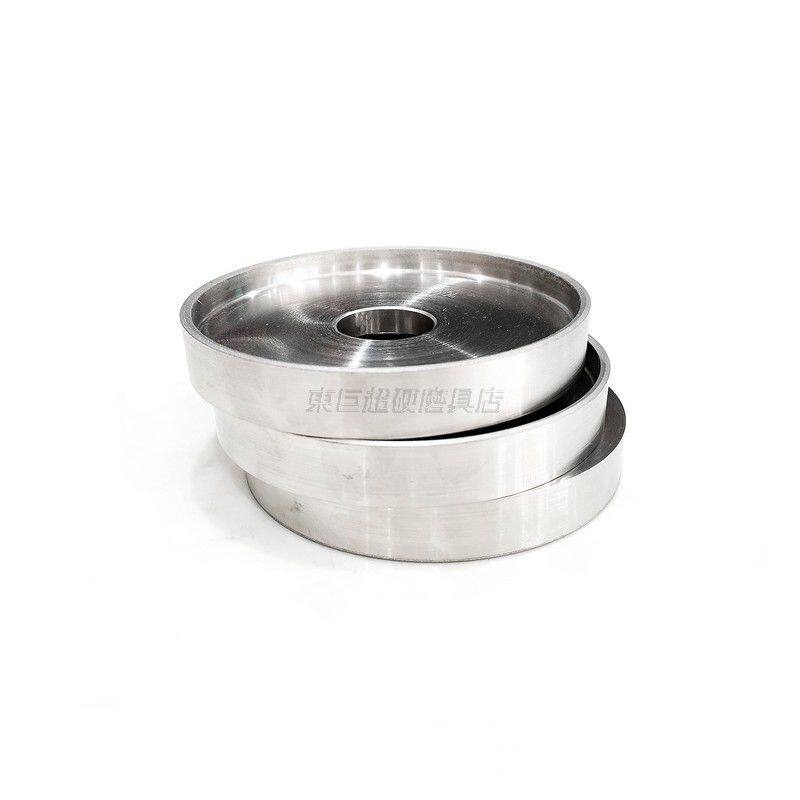

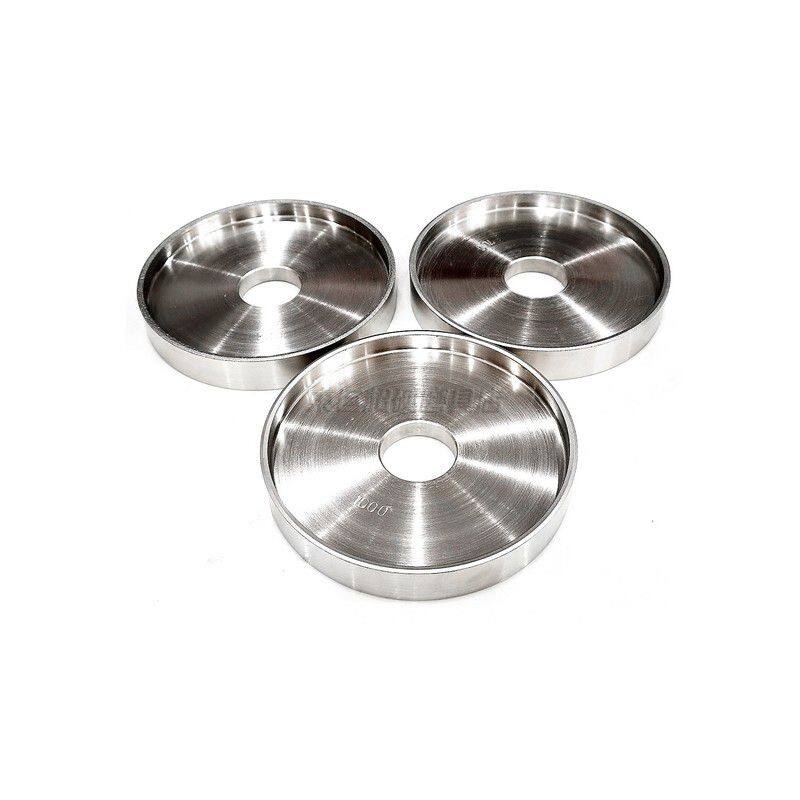

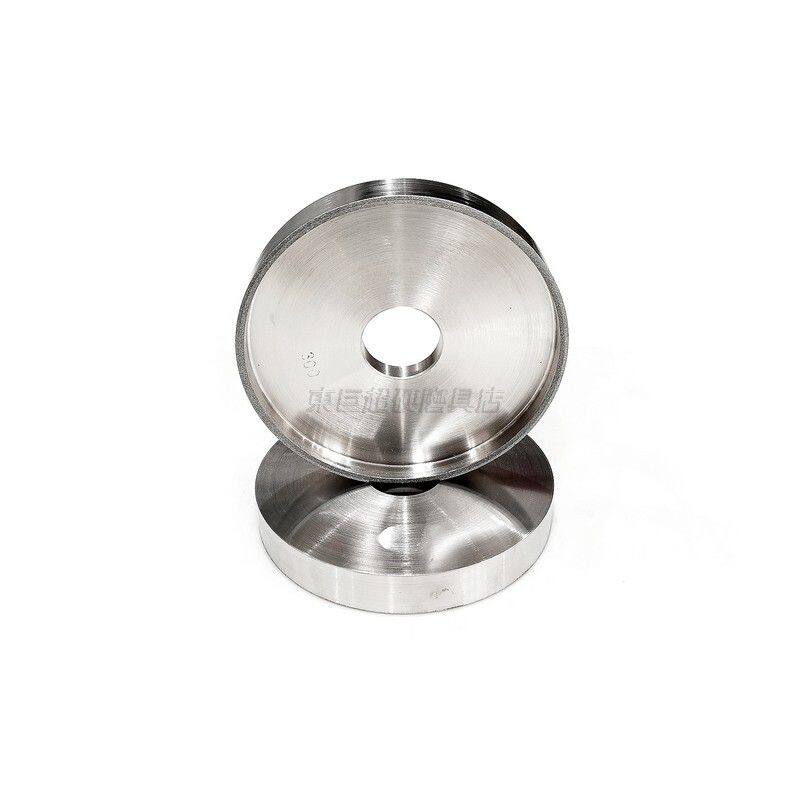

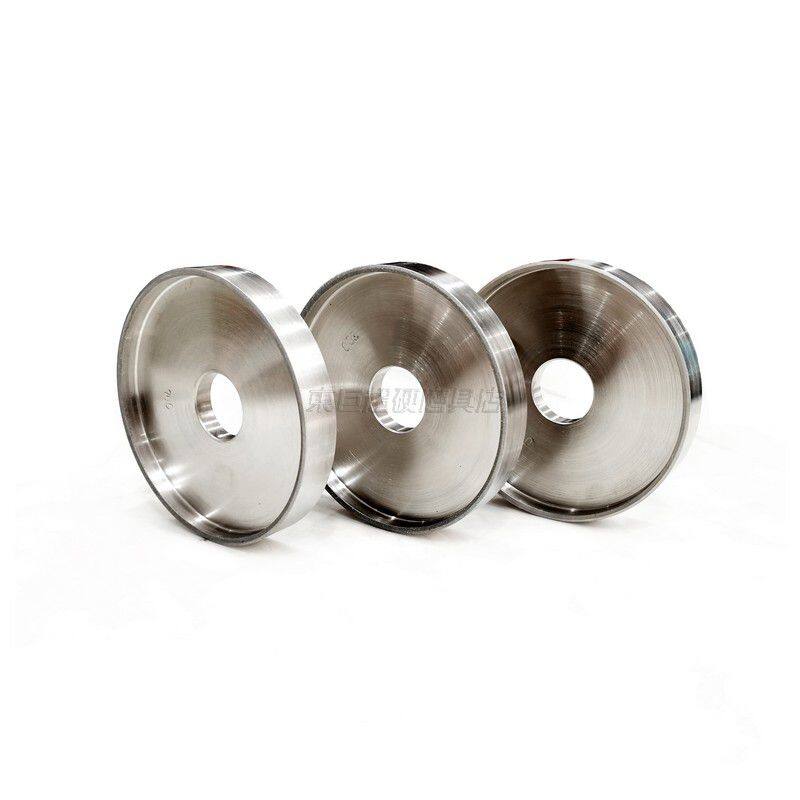

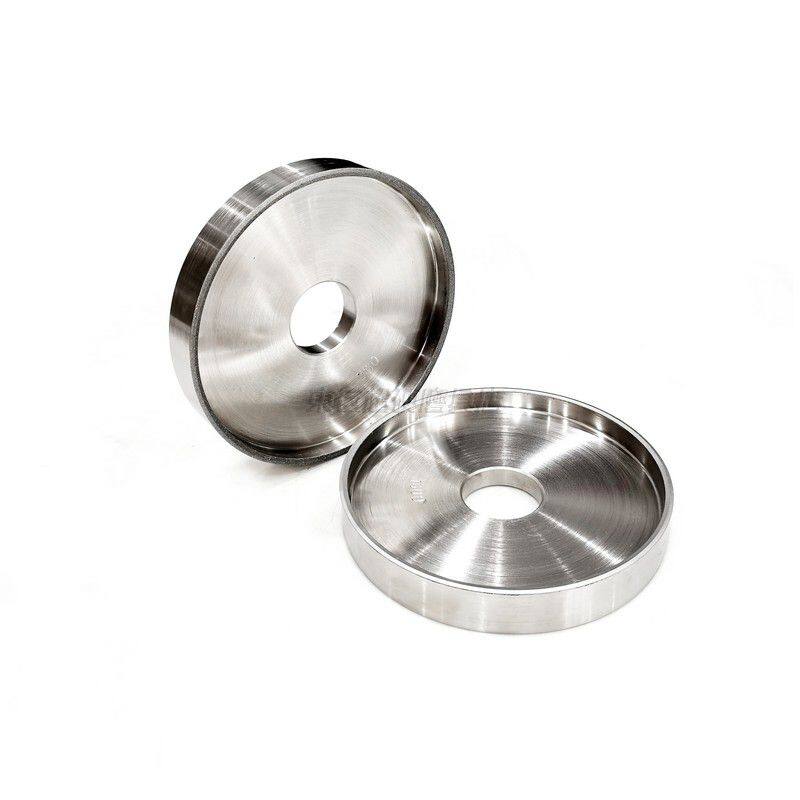

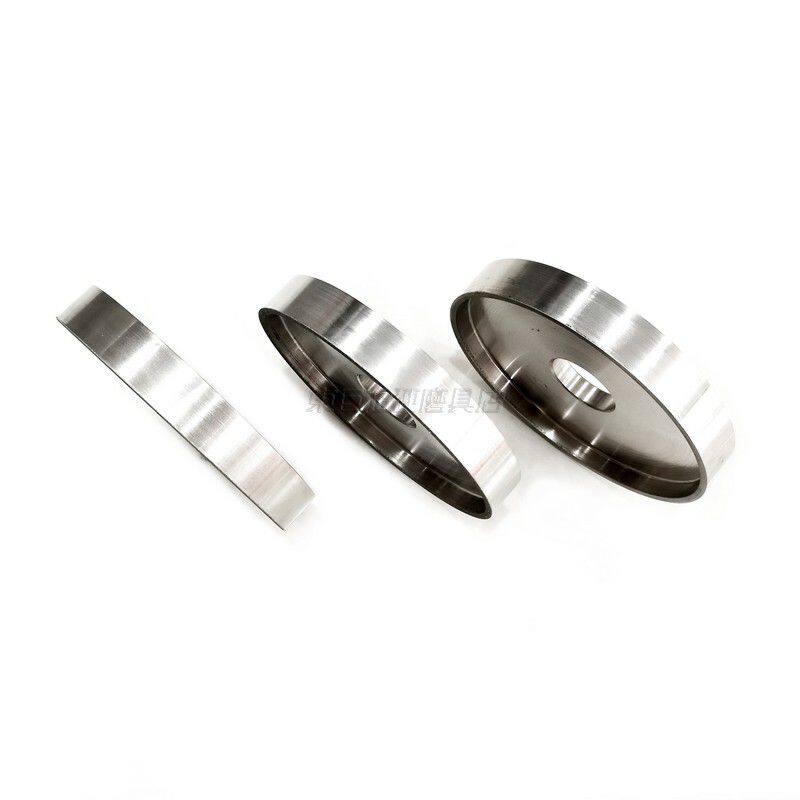

Customized cup shaped electroplated grinding wheel for machining hard alloy knives with precision grinding of 1000 grit diamond sand

With the continuous development of industrial technology, the application of precision grinding in various fields is becoming increasingly widespread. As an important tool in precision grinding, electroplated diamond grinding wheels are gradually receiving attention from the grinding industry. Cup shaped electroplated diamond grinding wheel is a diamond grinding tool prepared using electrochemical principles, and its unique manufacturing process endows it with many properties. Firstly, electroplated diamond grinding wheels have extremely high grinding efficiency and machining accuracy, which can meet the needs of modern industry for efficient and high-precision machining. Secondly, the electroplating diamond grinding wheel has low grinding temperature and small grinding force, which can effectively reduce the thermal damage and deformation of the workpiece, and is particularly suitable for processing materials with high hardness, high precision, and high added value. In addition, the abrasive distribution of electroplated diamond grinding wheels is uniform and can be customized according to needs, with good geometric shape and dimensional accuracy.

Brand: Dongju

Shape: 6A2 cup shape

Material: Diamond sand

Category: Electroplating binder

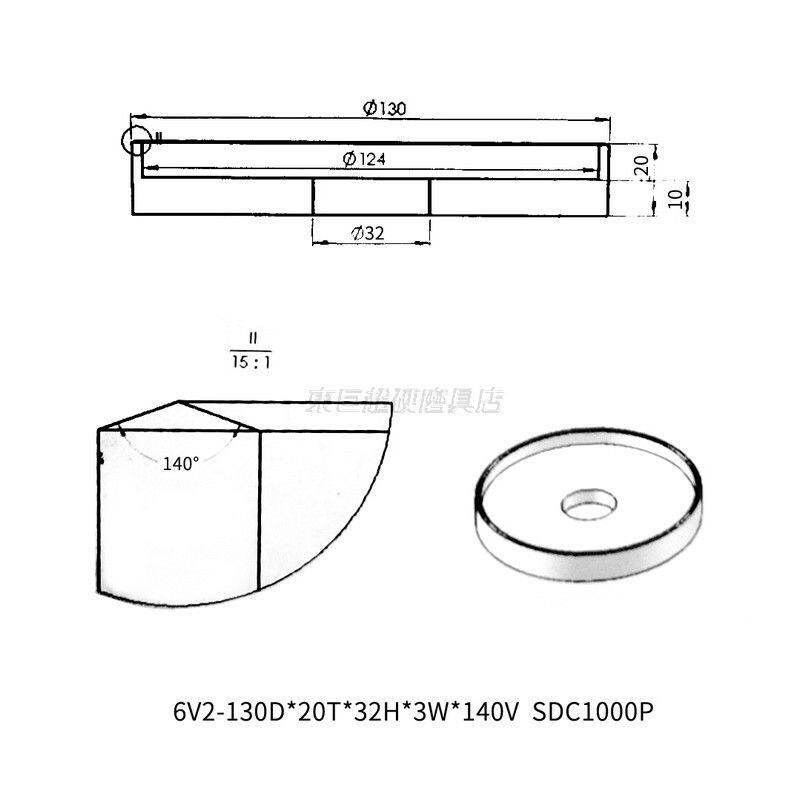

Specification: 130D * 20T * 32H * 3W * 140V

Scope of application: Tool grinding

Weight: 1800g

Diameter: 130mm

Width: 20mm

Wall thickness: 3mm

Inner hole: 32mm

Angle: 140 degrees

Particle size: 300 #/700 #/1000#

Customized: Yes

Imported or not: No

Origin: Dongguan

Functional use: V-groove machining with hard alloy cutting tools

In order to meet the processing needs of different fields and industries, Dongju Superhard Grinding Tools provides rich customization services. Customers can choose electroplated diamond grinding wheels with different particle sizes, hardness, and shapes according to their own processing requirements. At the same time, manufacturers can also design and manufacture electroplated diamond grinding wheels with special shapes and sizes according to the specific needs of customers. This customized service model not only meets the personalized needs of customers, but also further enhances the application range and market competitiveness of electroplated diamond grinding wheels.
