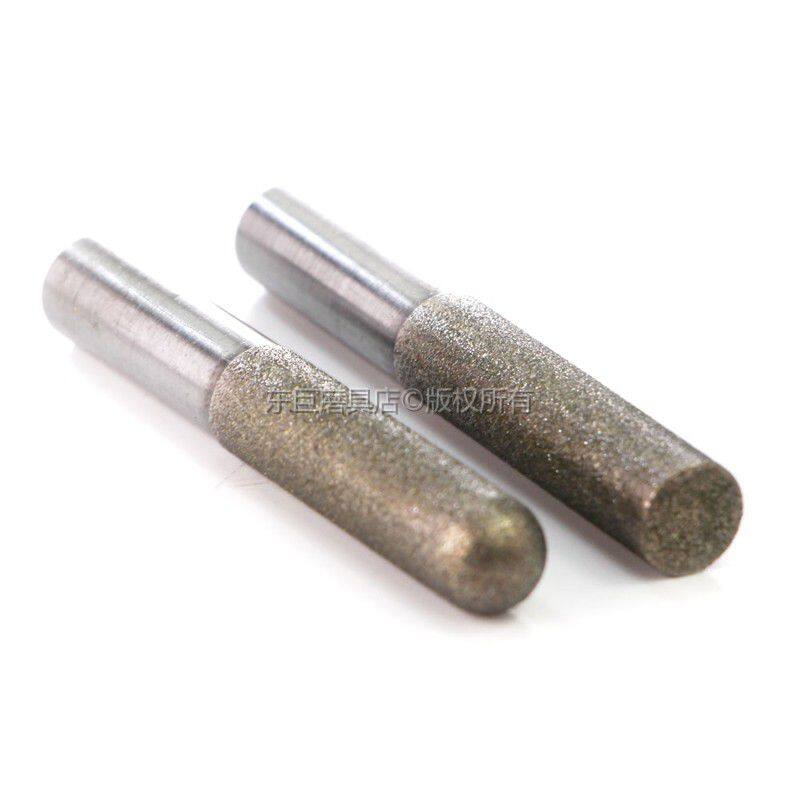

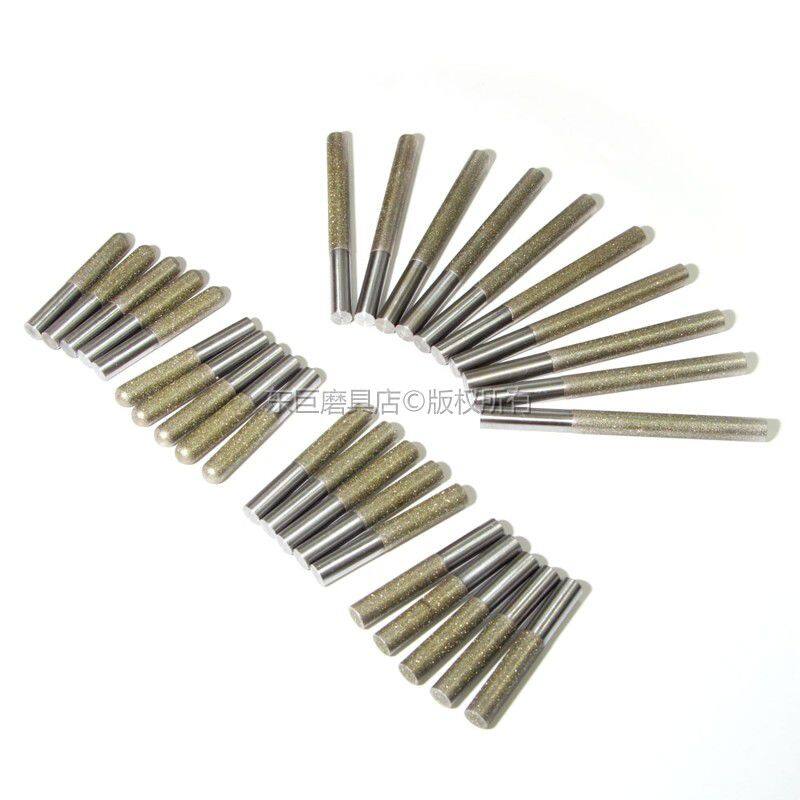

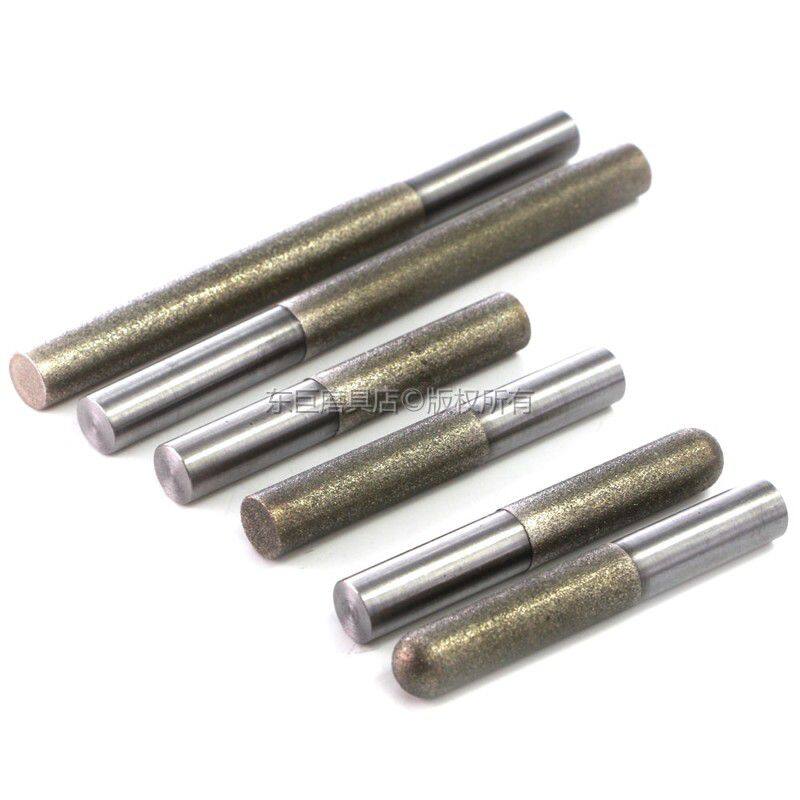

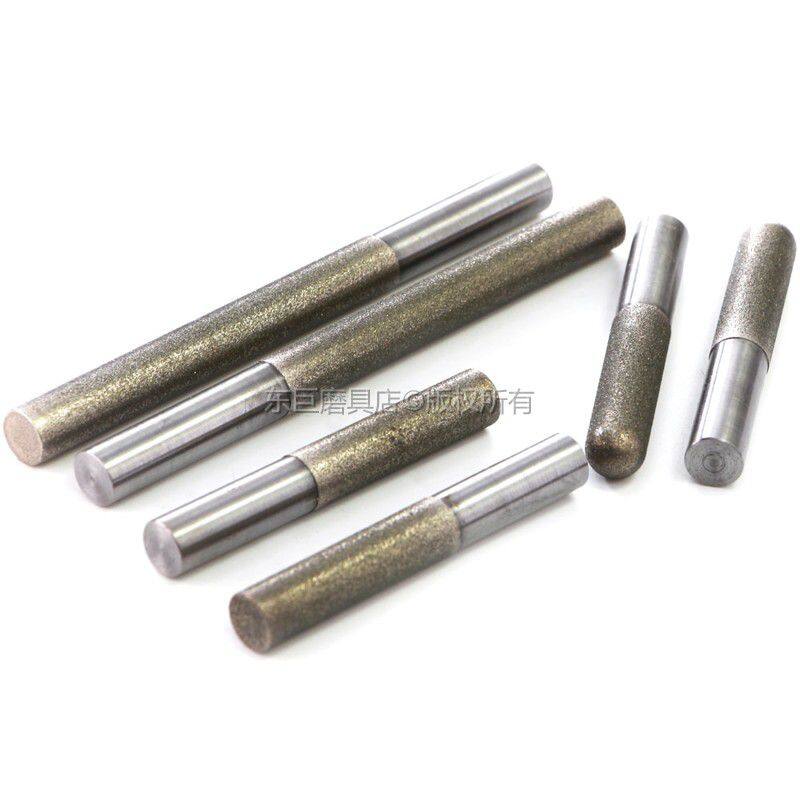

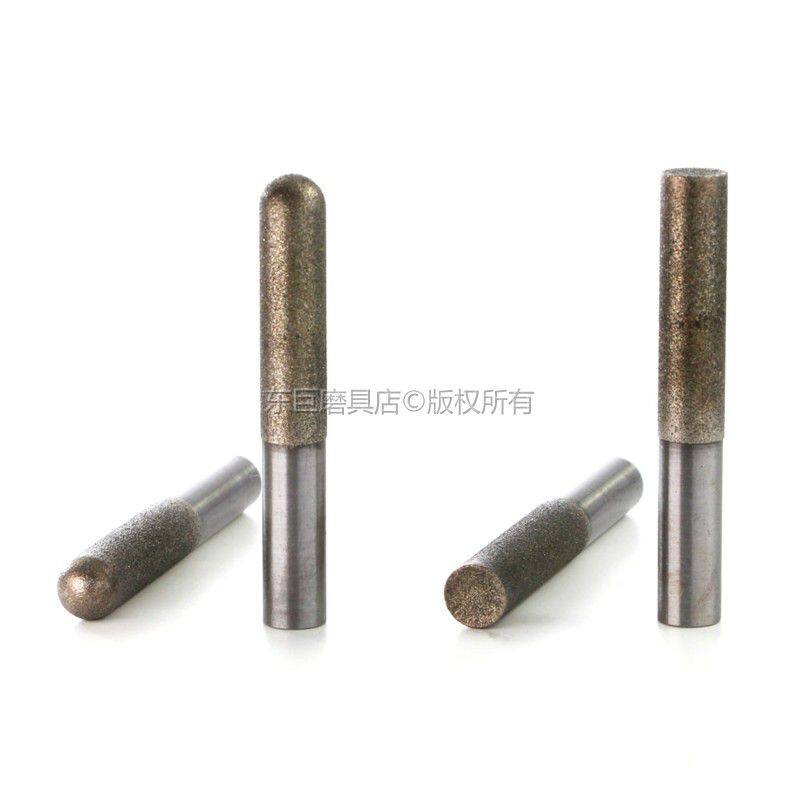

Electroplated diamond mounted Point with round flat top L60mm/120mm
US$ 50 - 65
/ Piece
10 Pieces(Min. Order)
- SHENZHEN
- T/T
- 7 days
You May Like
-
Electroplated diamond mounted points CBN grinding tools sharp arrow head abrasive tools
-
90 degree CBN mounted point grinding head rought grit 180 for coarse grinding head 20~60mm shank diameter 6mm
-
Electroplated diamond mounted points CBN rods for Inner hole grinding abrasive length 15mm
-
diamond mounted point cylinder head rough grit 30 for agate granite stone coarse grinding shank 6mm head 5~25mm
-
Sphere Electroplated Diamond Mounted Points Ball Head Mounted Wheel with 3mm Shank Dongjutools Abrasives
-
Customize electroplated diamond mounted points CBN abrasive tools for internal grinding
Product Details
| Brand Name | DONGJU | Place of Origin | China | |
| Model Number | SDC100# | Size | 10D*60L*30T*10B | |
| Type | Other, mounted wheel |
Product Description
| Item Name | Diamond Mounted Point |
| Bond | Electroplated |
| Body | Steel |
| Head Diameter | 10mm,15mm,20mm,25mm,30mm,35mm |
| Head length | 30mm |
| Total length | 60mm, 120mm for option |
| Shank Diameter | 10mm |
| Grit Option | 60# 80# 100# 120# 150# 180# 240# 320# |
| Total quantity | 10 pcs/lot |
| Usage | Diamond mounted points are used for various granite,marble,jig, internal grinding and precision grinding of small holes in carbides, glass, ceramics,sapphire and many of the tough, super alloys and different hard crisp nonmetal materials. CBN mounted points are used used for small diameter hole machining, dressing, high speed precision grinding and internal grinding of high speed steels,high carbon, high chrome steels, tool & die steels. |

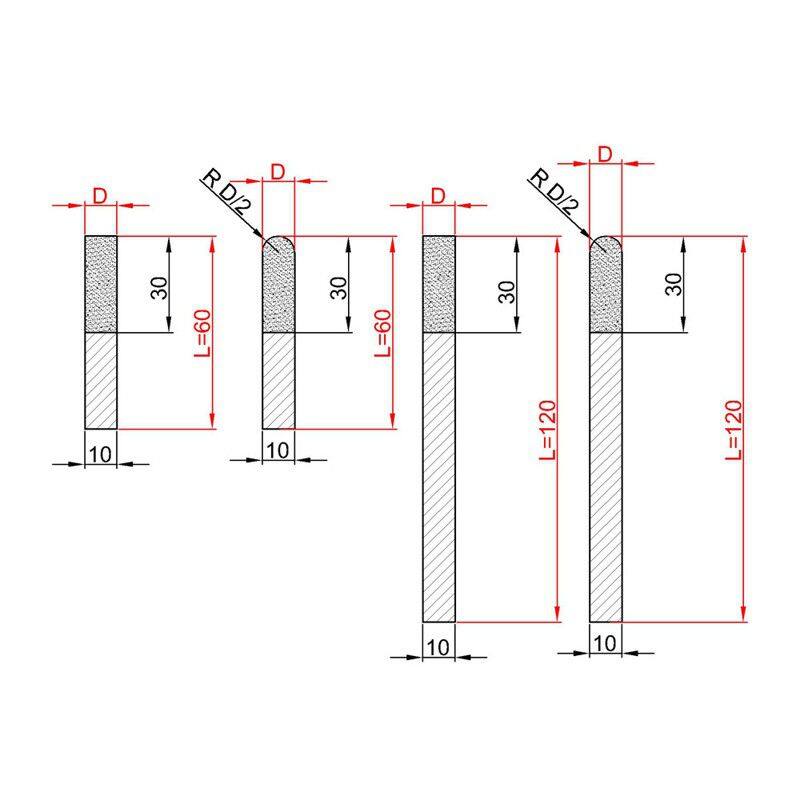

Choose the mounted points according to following option code
| Option Code | Description |
| D10L60 | Head Diameter10mm,Total Length 60mm |
| D10L60R5 | Head Diameter10mm,Total Length 60mm,Radius 5mm |
| D10L120 | Head Diameter10mm,Total Length 120mm |
| D10L120R5 | Head Diameter10mm,Total Length 120mm,Radius 5mm |
| D15L60 | Head Diameter15mm,Total Length 60mm |
| D15L60R7.5 | Head Diameter15mm,Total Length 60mm,Radius 7.5mm |
| D15L120 | Head Diameter15mm,Total Length 120mm |
| D15L120R5 | Head Diameter15mm,Total Length 120mm,Radius 5mm |
| D20L60 | Head Diameter20mm,Total Length 60mm |
| D20L120 | Head Diameter20mm,Total Length 120mm |
| D25L60 | Head Diameter25mm,Total Length 60mm |
| D25L120 | Head Diameter25mm,Total Length 120mm |
| D30L60 | Head Diameter30mm,Total Length 60mm |
| D30L120 | Head Diameter30mm,Total Length 120mm |
