Customized Electroplating Diamond Grinding Head R1.5 Forming and Processing of Hard Alloy Circular Groove

Encountering various conical and circular groove hard alloy parts with complex structures, there are many processing

 procedures and high requirements for processing equipment, which brings many difficulties to their production and

 processing, especially the high requirements for the size, shape and position tolerance, and surface accuracy of the

two conical holes in the inner cavity. CNC lathes cannot meet their surface quality requirements, and special grinding

 tools (such as diamond grinding heads) are needed to grind and process the conical holes after precision turning.

Dongju irregular inner hole grinding rod has good straightness, small bounce, small tolerance, and customized

dimensions. It uses quenched material SKD11 or 40CR as the handle, with fast delivery time, high strength, and

 after-sales service. It is suitable for grinding various irregular inner cavity surfaces and is suitable for various machining

centers and inner circle grinding equipment.

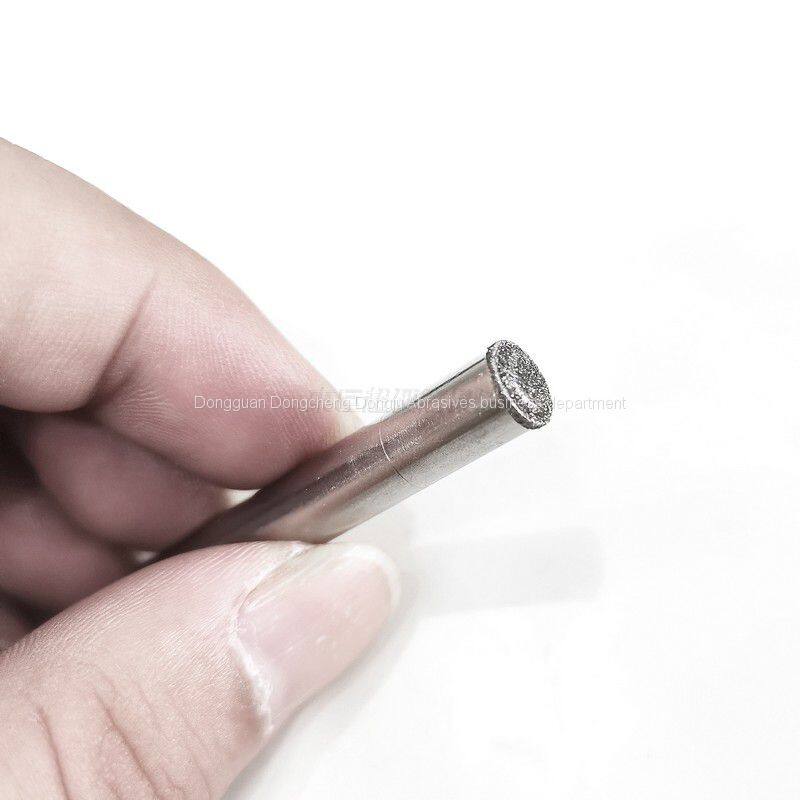

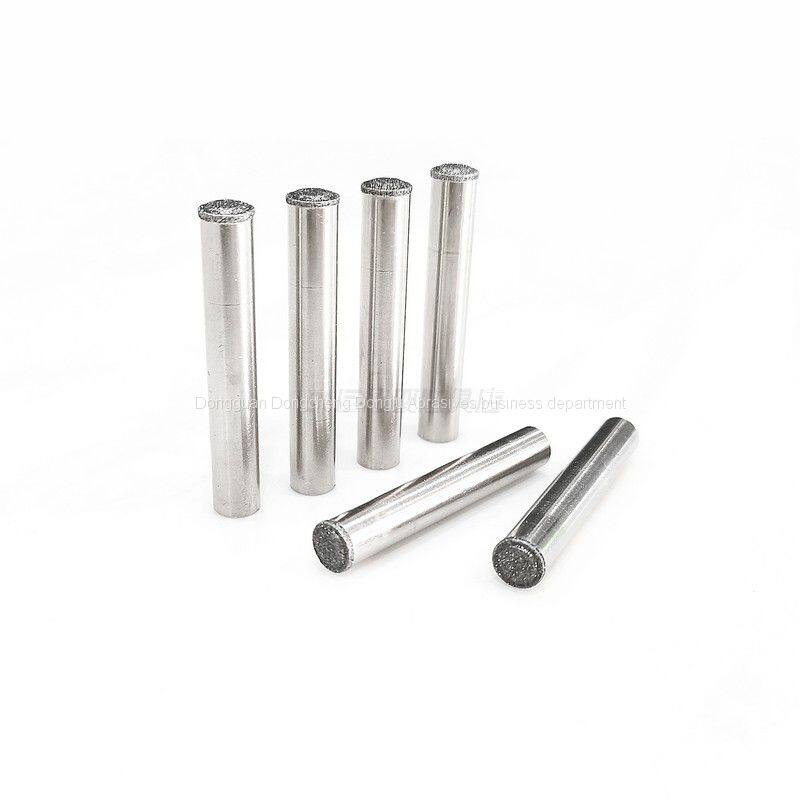

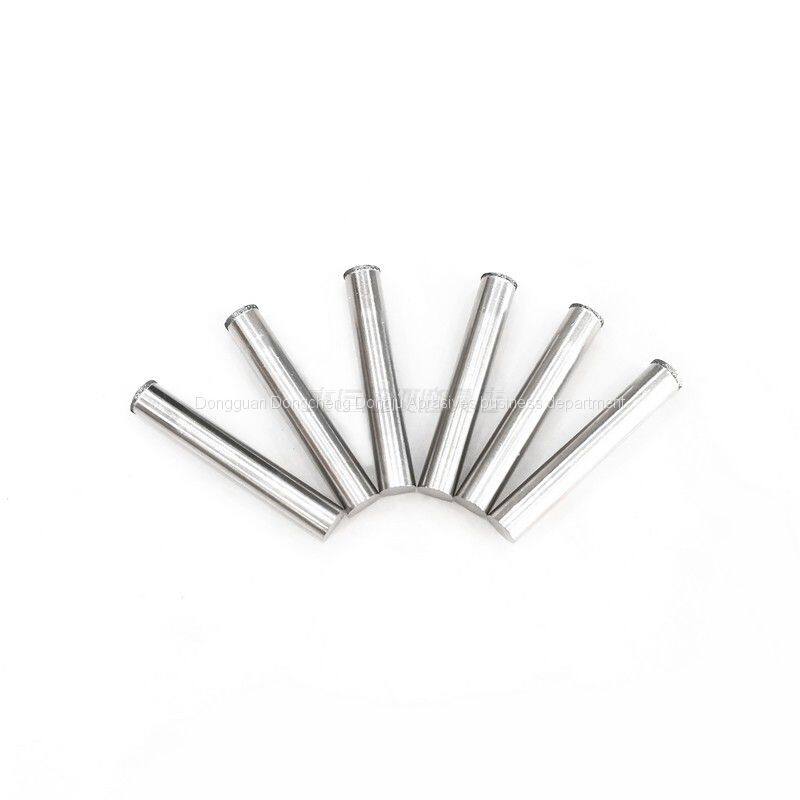

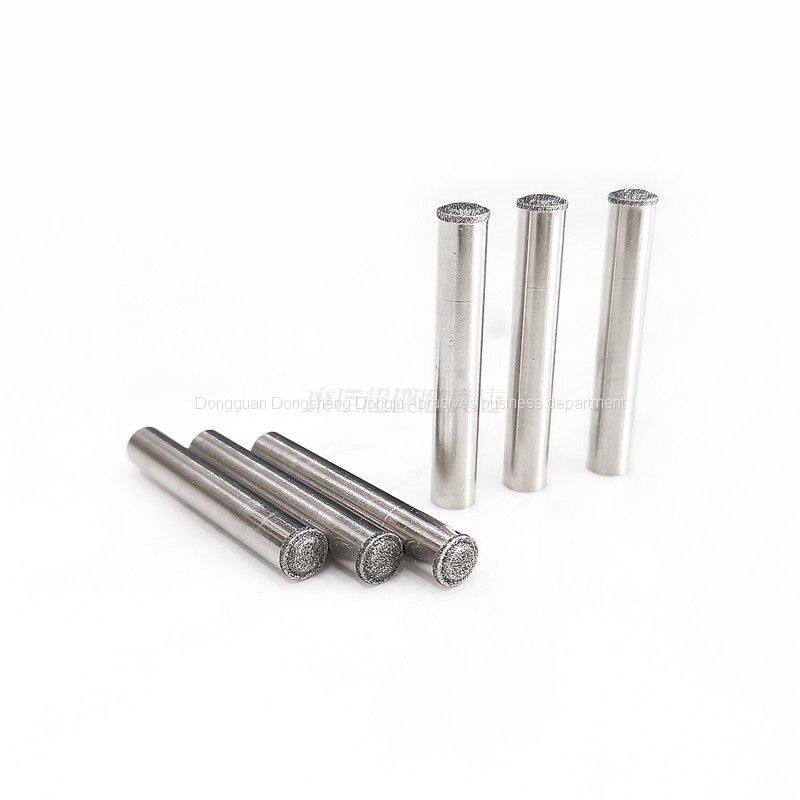

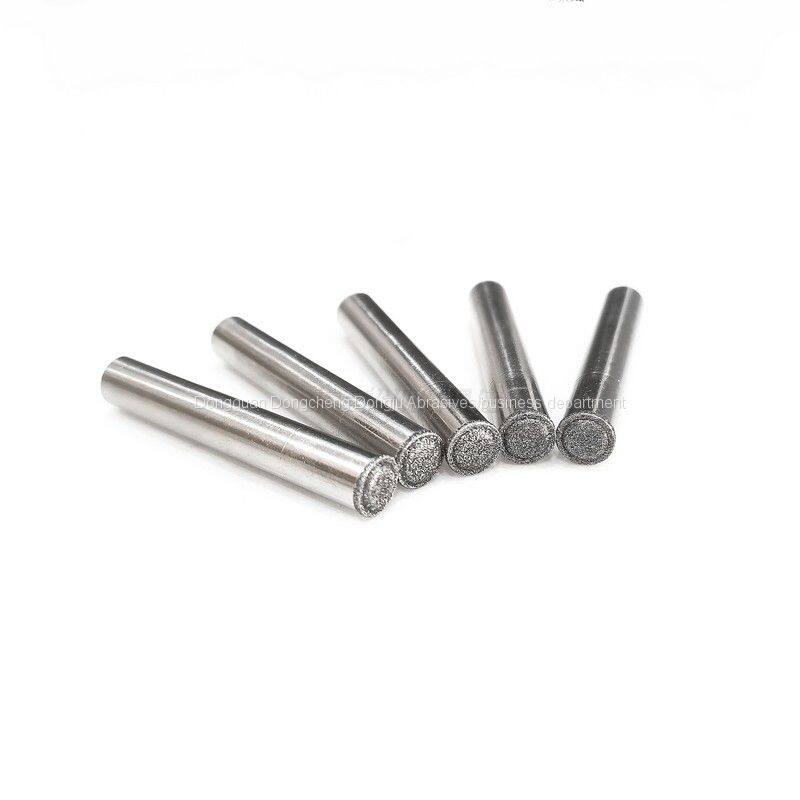

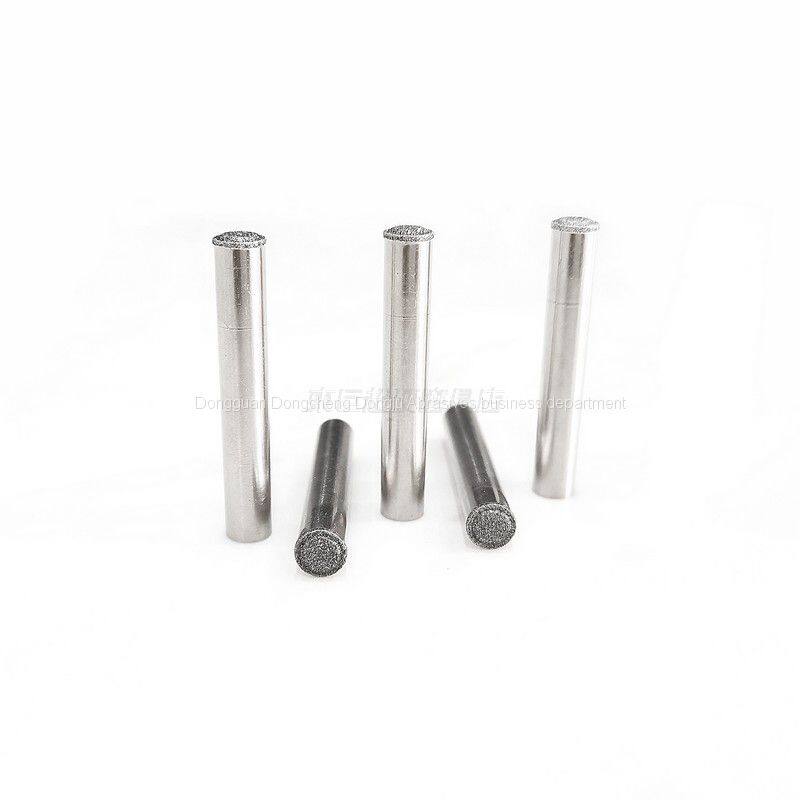

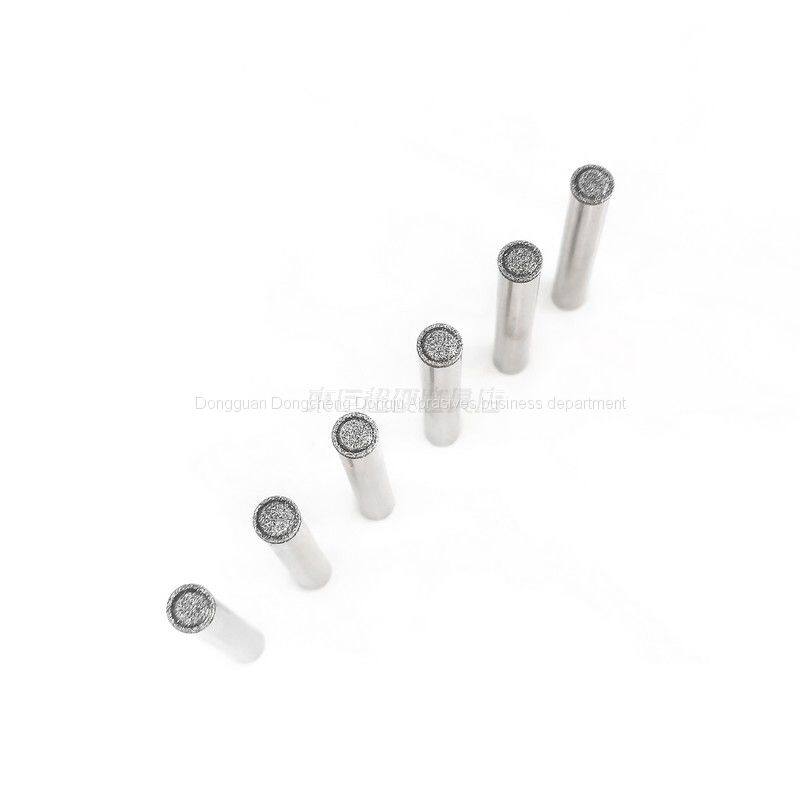

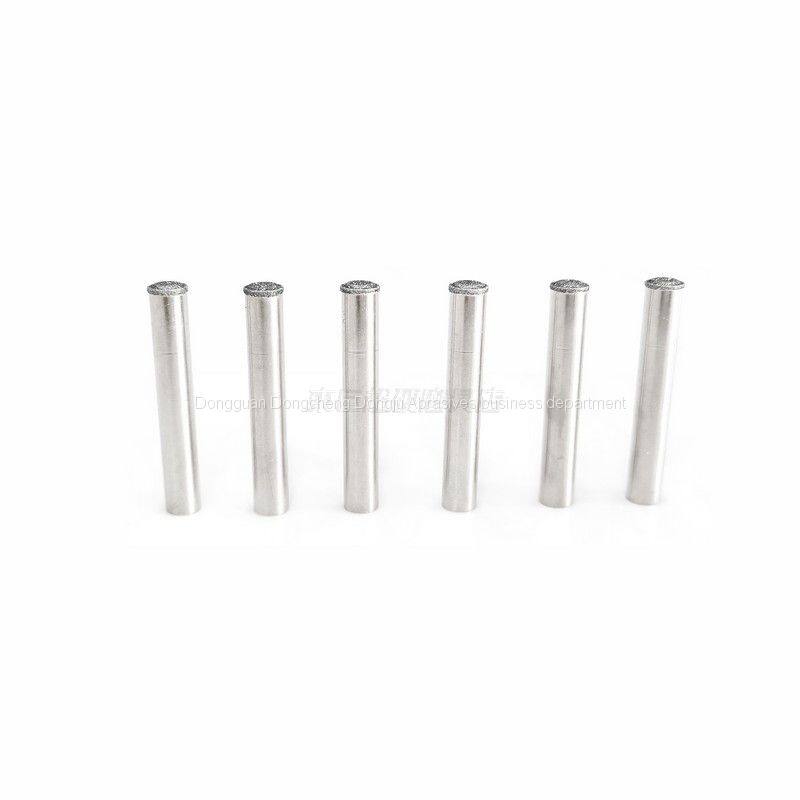

Name: Formed grinding wheel grinding head

Brand: Dongju

Model: Electroplating binder

Material: Diamond

Category: Hemispherical grinding head

Length: 45mm

Weight: 140g

Grinding head diameter: 6mm

Shank diameter: 7mm

Grinding head length: 45mm

Particle size: 240 mesh

Radian: R1.5

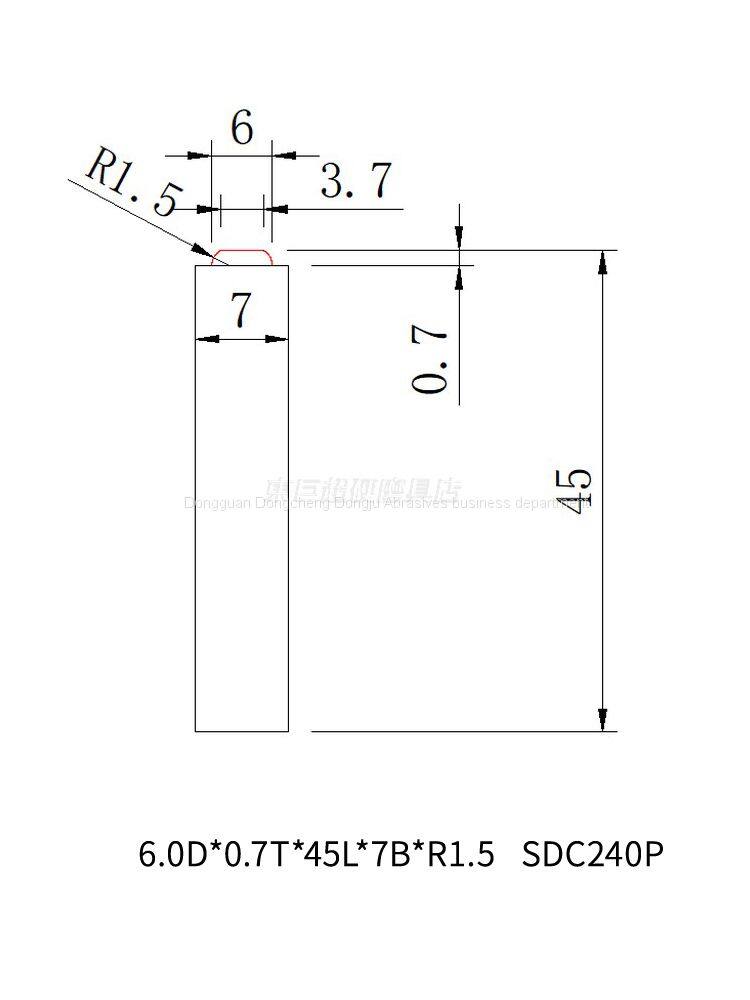

Specification: 6D * 0.7T * 7B * 45L * 1.5R SDC240P

Function and purpose: Forming and processing hard alloy circular groove spherical groove
