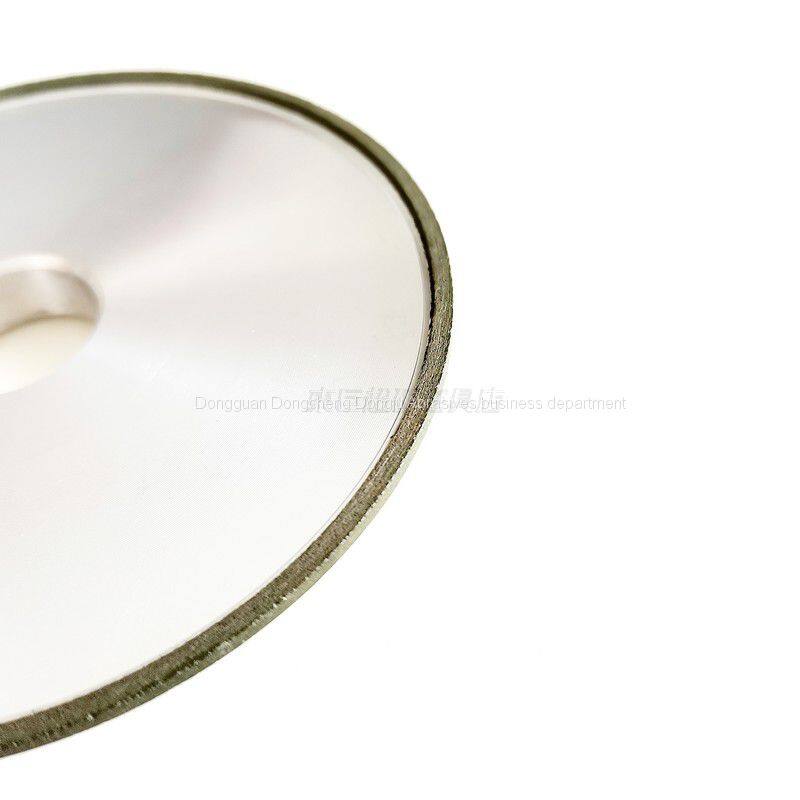

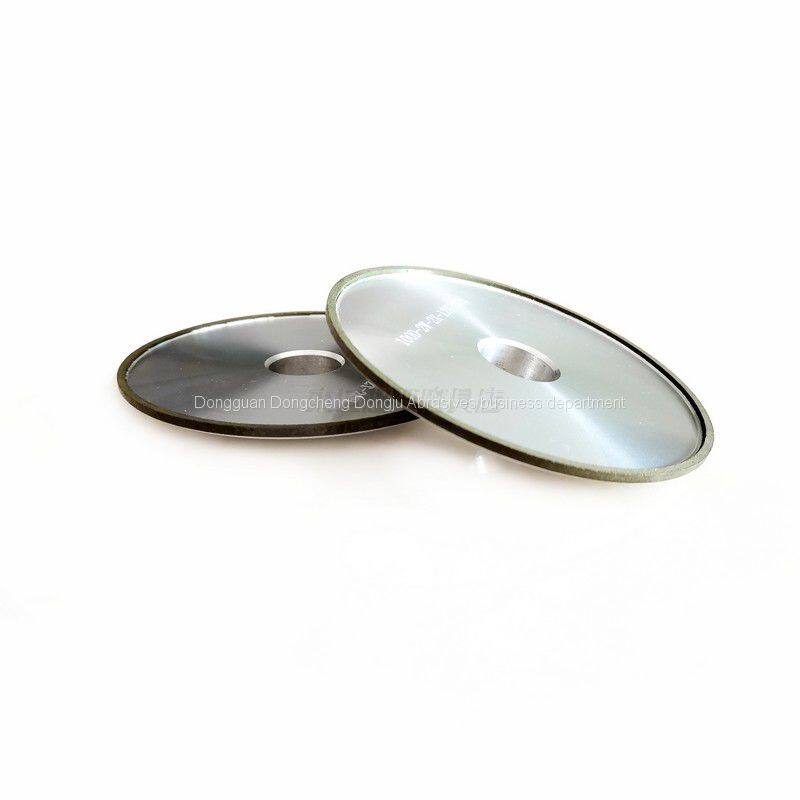

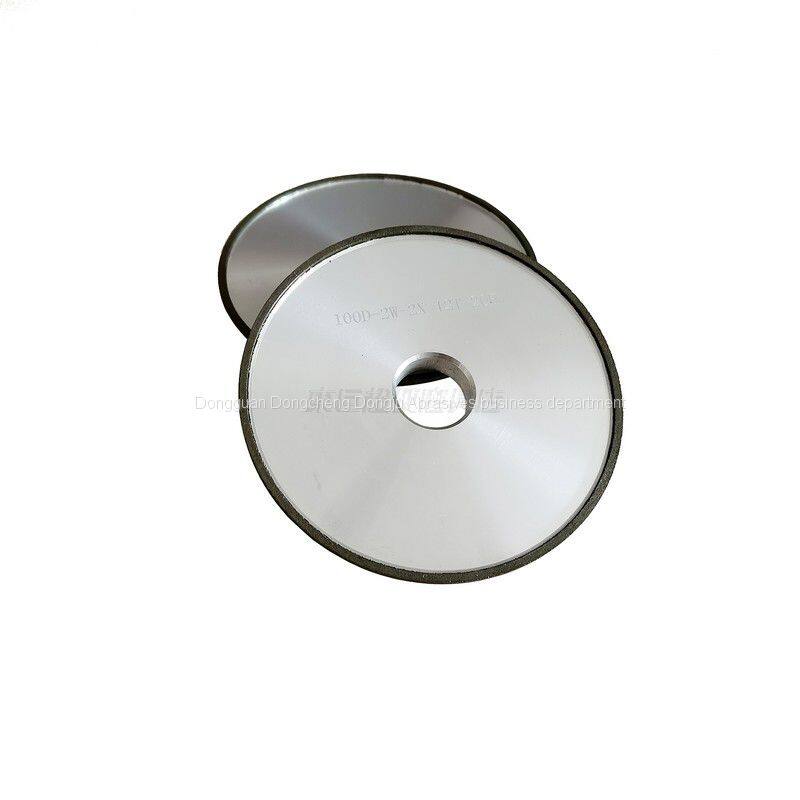

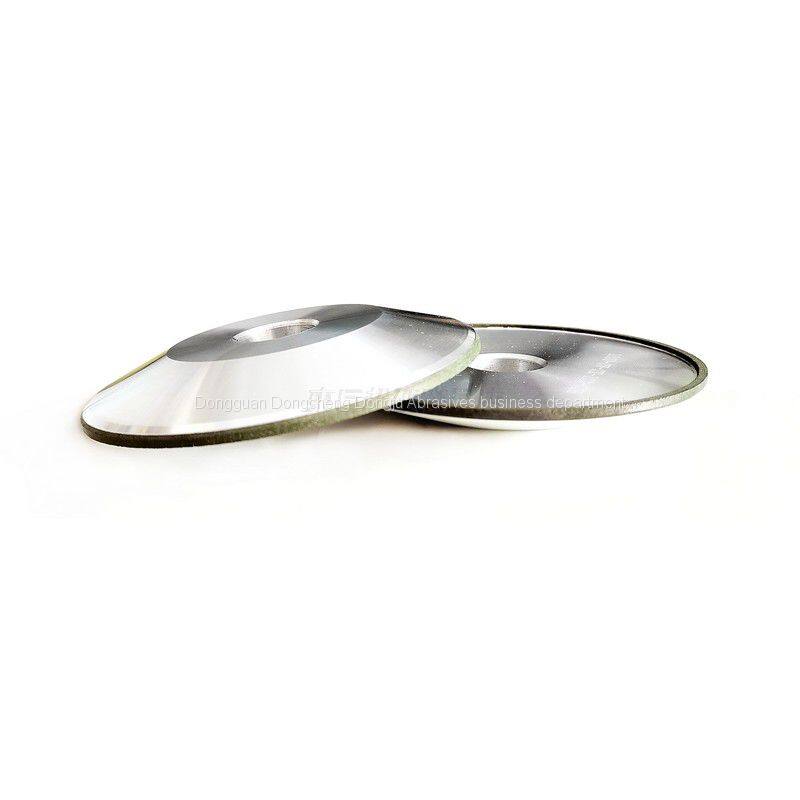

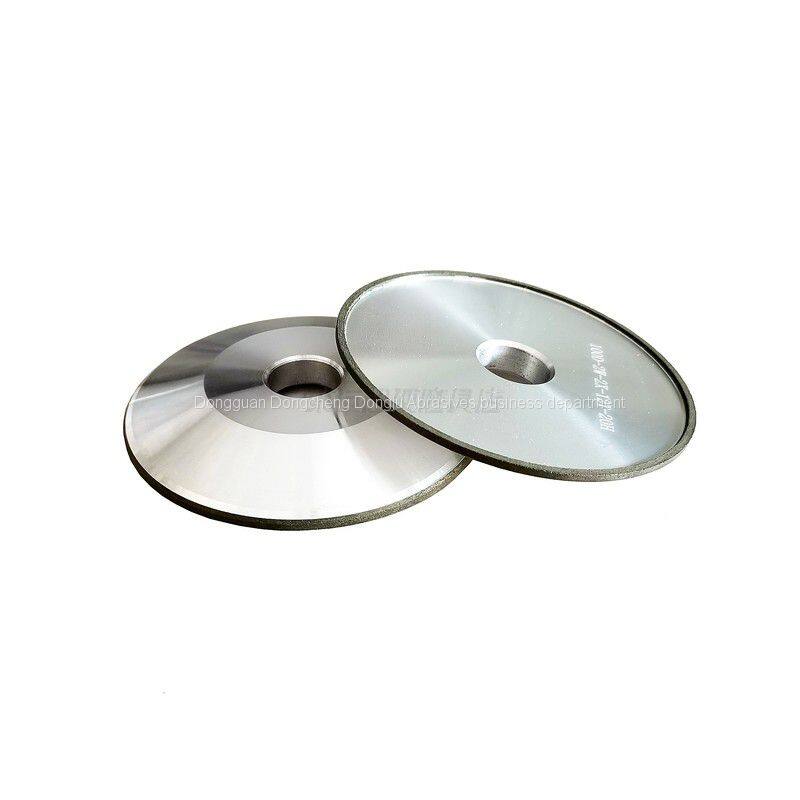

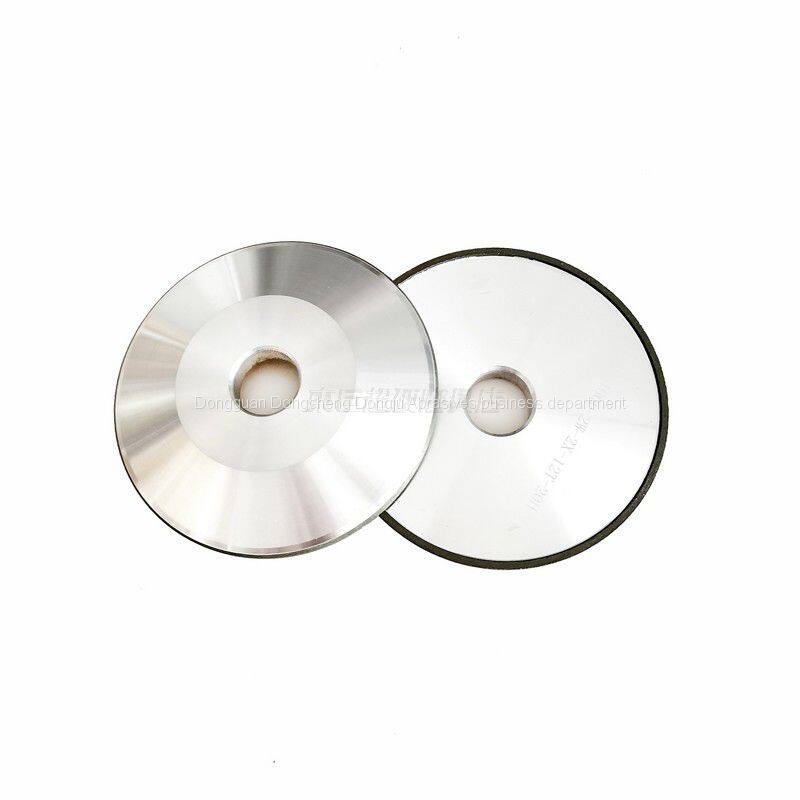

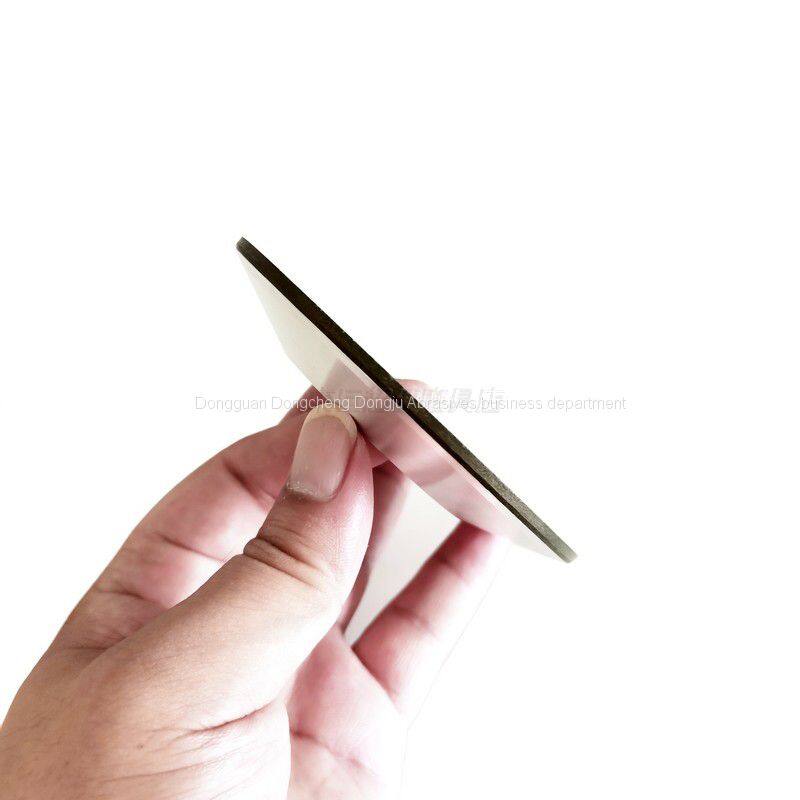

4C9 Disc-shaped Cubic Boron Nitride Grinding Wheel Resin Bond With Outer Diameter of 125 B151 Milling Cutter, Reamer, and Broach
- shenzhen
- T/T
- 7 days
You May Like
-
Customized Round Head Diamond Resin Grinding Rod R15 Semiconductor Ceramic Precision Grinding 32mm Straight Shank Arc SDC140 Mesh
-
Customized 190mm Long Electroplated Diamond Sand Needle SDC120 # for Drilling Wood With a Handle Diameter of 2.5mm
-
Mini Cubic Boron Nitride Resin Slice Outer Diameter 30 Ultra-thin Thickness 0.8mm CBN1200 Mesh
-
DIACRYSTON CBN Wheels 75Dx5Wx1Xx12°x0.04Rx24H CBN400MD
-
Customized Processing of Carbon Fiber With Irregular Shaped Steel Sand Grinding Head Profile for Rapid Prototyping With Good Roughness
-
Customized Cup Shaped Electroplated Grinding Wheel for Machining Hard Alloy Knives With Precision Grinding of 1000 Grit Diamond Sand
Product Details
| Brand Name | DONGJU | Place of Origin | China | |
| Model Number | 4C9 | Size | 125D*12T*20H*2W*2.8X*20V | |
| Shape | Dish | Hardness | Medium | |
| Viscosity | 100% | Bonding Agent | Resin | |
| Abrasive | Cubic Boron Nitride |
Product Description

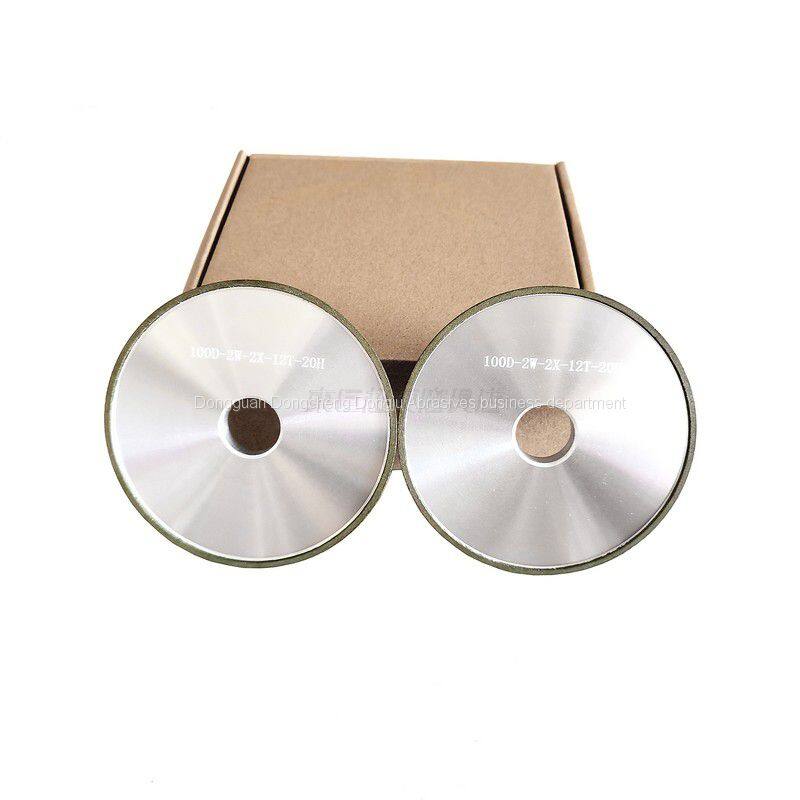

Disc shaped cubic boron nitride grinding wheel is a professional grinding wheel used for tool grinding and machining centers. It uses resin binder, has high hardness and heat resistance, and also has good grinding performance and cutting ability. CBN resin grinding wheels have high hardness, high strength, and strong grinding ability, mainly used for grinding high hardness carbon steel, high-speed steel, and metal cutting tools. Model 4C9 refers to the shape of the grinding wheel, with the abrasive located at the corners, mainly used for grinding milling cutters, reamers, broaches, etc. The grinding wheel generates little heat during grinding and is not easily clogged, reducing the phenomenon of workpiece deformation during grinding.
Brand: Dongju
Model: 4C9
Shape: Dish shaped
Material: cubic boron nitride
Category: Resin binder
Matrix: aluminum alloy
Diameter: 125mm
Width: 12mm
Wall thickness: 2.8mm
Particle size: B151
Angle: 20 °
Inner hole: 20mm

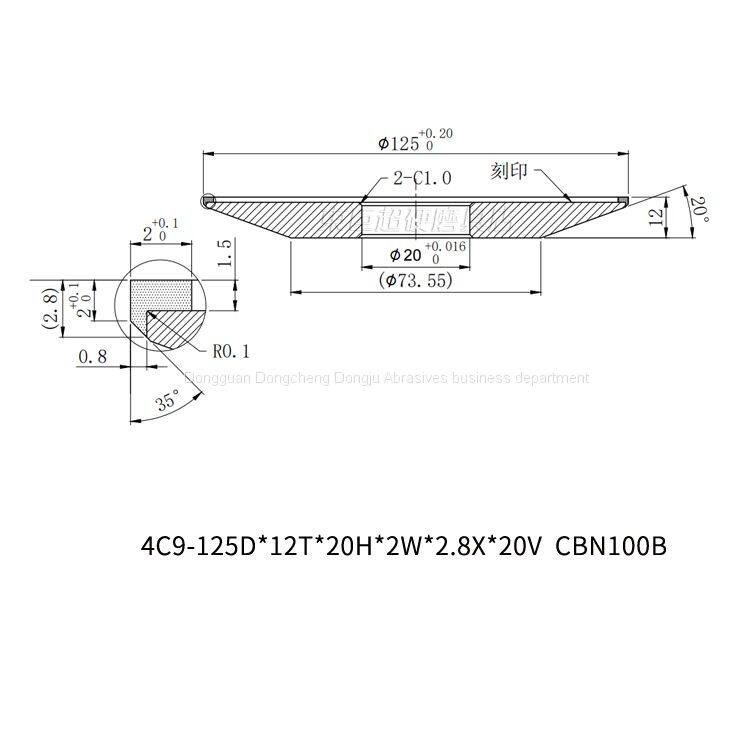

Specification: 125D * 12T * 20H * 2W * 2.8X * 20V
Customization: Yes
Imported or not: No
Origin: Dongguan
Function and purpose: suitable for grinding milling cutters, reamers, broaches, and other cutting tools
